Datsun Fairlady 1600/2000 Soft & Hard Top & Room Back Side View

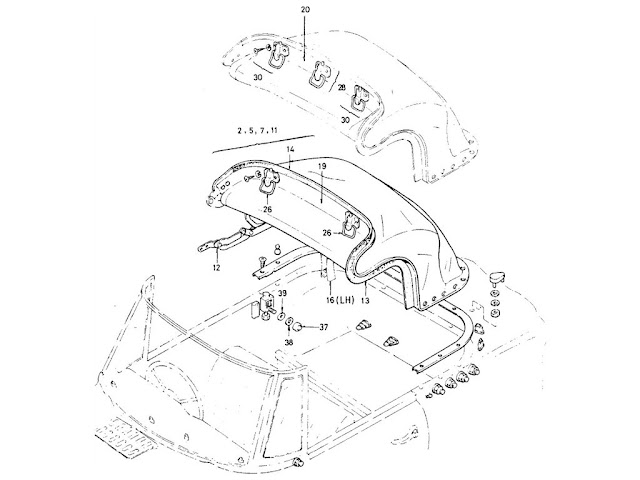

Datsun Fairlady Parts illustration no. 059-1 Soft Top

059 -1  Soft Top
KeyPart No.ModelApplied DateQty
FromTo
1SOFT TOP, WITH FRAME
  97800-A7851 1.6L   -   1
2SOFT TOP, WITH FRAME
  97800-A7851 ALL6703 -   1
3SOFT TOP, WITH FRAME
  97800-A7851 ALL6710 -   1
4SOFT TOP, WITH FRAME
  97800-A7851ALL6810 -   1
5SOFT TOP, WITH FRAME
  97800-A7851ALL6907 -   1
6SOFT TOP, WITHOUT FRAME
  97700-255001.6L   -   1
7SOFT TOP, WITHOUT FRAME
  97700-25500ALL6703 - 67091
8SOFT TOP, WITHOUT FRAME
  97700-A7800 ALL   -   1
9SOFT TOP, WITHOUT FRAME
  97700-A7800 ALL   -   1
10SOFT TOP, WITHOUT FRAME
  97700-A7800ALL   -   1
11SOFT TOP, WITHOUT FRAME
  97700-A7800ALL6907 -   1
12ASSY-FRAME SOFT TOP
  97800-A3250ALL6810 -   1
13WEATHERSTRIP-SOFT TOP, SIDE
  97780-12900ALL   -   2
14WEATHERSTRIP-SOFT TOP, FRONT
  97785-12900ALL   -   1
15PLATE PUSHING RH
  97708-14600ALL   -   1
16PLATE PUSHING LH
  97709-14600ALL   -   1
17RIVET TO FIX PLATE TO BRACKET
  00660-41010ALL   -   2
18WASHER-RUBBER
  97798-25900ALL6710 -   2
19ASSY-FRAME SOFT TOP W/FASTENER
  97721-A3250ALL   - 67091
20ASSY-FRAME SOFT TOP W/FASTENER
  97721-A3250ALL6710 -   1
21ASSY-FRAME SOFT TOP W/FASTENER
  97721-A3250ALL6910 -   1
22ASSY-FRAME SOFT TOP W/FASTENER
  97721-A3250ALL6910 -   1
23ASSY-TRIM SOFT TOP
  97790-A7800ALL6907 -   1
24WELT SOFT TOP
  97791-A7800ALL6907 -   1
25SET-FASTENER ROOF
  97730-255001.6L   -   2
26SET-FASTENER ROOF
  97730-25500ALL6703 - 67092
27SET-FASTENER ROOF CENTER
  97730-A4500ALL6710 -   1
28SET-FASTENER SIDE
  97730-A4500ALL6907 -   1
29SET-FASTENER SIDE
  97740-A4500ALL6710 -   2
30SET-FASTENER SIDE
  97740-A4500ALL6907 -   2
31SET-BRACKET, FRAME, SOFT TOP RH
  97740-14650ALL   -   1
32SET-BRACKET, FRAME, SOFT TOP RH
  97740-14650ALL   -   1
33SET-BRACKET, FRAME, SOFT TOP RH
  97741-25900ALL6710 -   1
34SET-BRACKET, FRAME, SOFT TOP LH
  97742-14650ALL   -   1
35SET-BRACKET, FRAME, SOFT TOP LH
  97742-14650ALL   -   1
36SET-BRACKET, FRAME, SOFT TOP LH
  97743-25900ALL6710 -   1
37NUT-CAP
  97743-12900ALL   -   2
38WASHER-PLAIN
  00915-41500ALL   -   2
39WASHER-PLAIN
  88841-09101ALL   -   2
40BRACKET PUSHING PLATE RH
  97701-14600ALL   - 67091
41BRACKET PUSHING PLATE RH
  97701-25900ALL6710 -   1
42BRACKET PUSHING PLATE LH
  97702-14600ALL   - 67091
43BRACKET PUSHING PLATE LH
  97702-25900ALL6710 -   1
44SCREW TO FIX BRACKET
  00314-01210ALL   -   4
45WASHER-LOCK TO FIX BRACKET
  00915-11010ALL   -   4
46COVER COMPARTMENT
  97760-14600ALL   -   1
47COVER COMPARTMENT
  97760-25900ALL6710 -   1
48ASSY-TONNEAU COVER
  97770-12900OP SP   -   1
49ASSY-TONNEAU COVER FOR HEAD SUPPORT
  97770-25901SP, SR   -   1
50ASSY-TONNEAU COVER
  97770-25901SP, SR6710 -   1
51ASSY-TONNEAU COVER FOR SAFETY BAR
  97770-25902OP SP, SR   -   1
52ASSY-TONNEAU COVER FOR SAFETY BAR
  97770-25902OP SP, SR   -   1
53ASSY-TONNEAU COVER
  97770-13000SPL   -   1
54ASSY-TONNEAU COVER
  97770-26001SPL, SRL   -   1
55ASSY-TONNEAU COVER
  97770-26001SPL, SRL6710 -   1
56ASSY-TONNEAU COVER
  97770-A3300SPLU, SRLU   -   1
57ASSY-TONNEAU COVER FOR SAFETY BAR
  97770-26000OP SPL, SRL, SPLU, SRLU   -   1
58HOOK-MALE A (20MM)
  97751-12900ALL   -   10
59HOOK-MALE A (7MM)
  97753-12900ALL   -   2
60HOOK-MALE B (8MM)
  97754-12900 ALL   -   6
  97754-A3200 ALL   -   6
  97754-A4500 ALL   -   6
61HOOK-MALE B (8MM)
  97754-12900 ALL   -   2
  97754-A3200 ALL   -   2
  97754-A4500 ALL   -   2
62HOOK-MALE B (4MM)
  97754-12900ALL   -   4
63HOOK-MALE B (4MM)
  97754-12900ALL   -   4
64MOULDING-WAIST
  79850-12900ALL   -   1
65SCREW
  08530-71010ALL   -   12
66PLUG
  79853-12900ALL   -   2
67FASTENER-SKIRT SOFT TOP, REAR
  97738-12900ALL   -   3
68WASHER-PLAIN
  00915-40810ALL   -   6
69WASHER-LOCK
  00915-10810ALL   -   6
70NUT
  16074-12210ALL   -   6
71JAW-FASTENER REAR
  73832-12900ALL   -   1
72ASSY-ROOF, HARD TOP
  73010-14625OP ALL   -   1
73ASSY-ROOF, HARD TOP
  73010-14625OP ALL   - 67091
74ASSY-ROOF, HARD TOP (BLACK)
  73010-25950OP ALL6710 -   1
75WASHER-HARD TOP
  73861-14600ALL   -   2
76WASHER-HARD TOP
  73861-14600ALL   -   2
77FASTENER CENTER FOR 73010-25950
  73870-25900OP ALL   -   1
78SHIM-FASTENER, CENTER FOR 73010-25950
  73878-25900OP ALL   -   1
79ASSY-FASTENER, SIDE FOR 73010-25950
  73871-25900OP ALL   -   2
80SHIM-FASTENER, SIDE, FOR 73010-25950
  73879-25900OP ALL   -   1
81SET-FASTENER, ROOF REAR FOR 73010-25950
  73830-25900OP ALL   -   1
82NUT-CAP
  73820-12900OP ALL   -   4
83WIRE-TENSION BACK WINDOW FOR 73010-14625
  73859-12900OP ALL   -   1
84WIRE-TENSION BACK WINDOW FOR 73010-25950
  73859-25900OP ALL   -   1
85MOULDING-ROOF DRIP FRONT FOR 73010-14625
  73810-12900OP ALL   -   1
86MOULDING-ROOF DRIP FRONT FOR 73010-25950
  73810-25900OP ALL   -   1
87MOULDING-ROOF DRIP SIDE RH FOR 73010-25950
  73812-25900OP ALL   -   1
88MOULDING-ROOF DRIP SIDE LH FOR 73010-25950
  73813-25900OP ALL   -   1
89CLIP-MOULDING ROOF DRIP FOR 73010-14625
  73814-12900OP ALL   -   1
90CLIP-MOULDING ROOF DRIP FOR 73010-25950
  73814-25900OP ALL   -   1
91WEATHERSTRIP-ROOF FRONT FOR 73010-25950
  73911-25900OP ALL   -   1
92WEATHERSTRIP-DOOR ROOF SIDE FOR 73010-25950
  73919-25901OP ALL   -   2
93WEATHERSTRIP-ROOF LOWER FOR 73010-14625
  73917-14600OP ALL   -   1
94WEATHERSTRIP-ROOF LOWER FOR 73010-25950
  73917-A3200OP ALL   -   1
95WEATHERSTRIP-ROOF LOWER FOR 73010-25950
  73917-A3200OP ALL   -   1
96GLASS-BACK WINDOW FOR 73010-14625
  79739-10400OP ALL   -   1
97GLASS-BACK WINDOW FOR 73010-25950
  79739-25900OP ALL   -   1
98WEATHERSTRIP-BACK WINDOW FOR 73010-14625
  79716-10400OP ALL   -   1
99WEATHERSTRIP-BACK WINDOW FOR 73010-25950
  79716-25900OP ALL   -   1
100MOULDING-BACK WINDOW RH FOR 73010-14625
  72823-10400OP ALL   -   1
101MOULDING-BACK WINDOW RH FOR 73010-25950
  72823-25900OP ALL   -   1
102MOULDING-BACK WINDOW LH FOR 73010-14625
  72824-10400OP ALL   -   1
103MOULDING-BACK WINDOW LH FOR 73010-25950
  72824-25900OP ALL   -   1
104MOULDING-BACK WINDOW LOWER FOR 73010-25950
  72825-25900OP ALL   -   1
105CONNECTOR-MOULDING BACK WINDOW RH FOR 73010-14625
  72826-10400OP ALL   -   1
106CONNECTOR-MOULDING BACK WINDOW RH FOR 73010-25950
  72826-25900OP ALL   -   1
107CONNECTOR-MOULDING BACK WINDOW LH FOR 73010-14625
  72827-10400OP ALL   -   1
108CONNECTOR-MOULDING BACK WINDOW LH FOR 73010-25950
  72827-25900OP ALL   -   1
109CLIP-MOULDING WINDSHIELD FOR 73010-14625
  72805-12900OP ALL   -   1
110CLIP-MOULDING WINDSHIELD FOR 73010-25950
  72805-25900OP ALL   -   1
111ASSY-WEATHERSTRIP,DOOR UPPER,RH FOR 73010-14625
  73913-14600OP ALL   -   1
112ASSY-WEATHERSTRIP,DOOR UPPER,RH FOR 73010-25950
  73915-25901OP ALL   -   1
113ASSY-WEATHERSTRIP,DOOR UPPER,RH FOR 73010-25950
  73915-25901OP ALL   -   1
114ASSY-WEATHERSTRIP,DOOR UPPER,LH FOR 73010-14625
  73914-14600OP ALL   -   1
115ASSY-WEATHERSTRIP,DOOR UPPER,LH FOR 73010-25950
  73916-25901OP ALL   -   1
116ASSY-WEATHERSTRIP,DOOR UPPER,LH FOR 73010-25950
  73916-25901OP ALL   -   1
ASSY-FRAME SOFT TOP W/FASTENER SET-FASTENER SIDE SET-FASTENER SIDE WEATHERSTRIP-SOFT TOP, FRONT ASSY-FRAME SOFT TOP W/FASTENER SOFT TOP, WITH FRAME SOFT TOP, WITH FRAME SOFT TOP, WITHOUT FRAME SOFT TOP, WITHOUT FRAME WASHER-PLAIN WASHER-PLAIN SET-FASTENER ROOF SET-FASTENER SIDE ASSY-FRAME SOFT TOP NUT-CAP WEATHERSTRIP-SOFT TOP, SIDE PLATE PUSHING LH SET-FASTENER ROOF HOOK-MALE B (8MM) HOOK-MALE B (8MM) HOOK-MALE A (20MM) ASSY-TONNEAU COVER / ASSY-TONNEAU COVER FOR SAFETY BAR WASHER-PLAIN WASHER-LOCK NUT MOULDING-WAIST SET-BRACKET, FRAME, SOFT TOP LH HOOK-MALE B (8MM) COVER COMPARTMENT FASTENER-SKIRT SOFT TOP, REAR SCREW PLUG BRACKET PUSHING PLATE RH BRACKET PUSHING PLATE LH SET-BRACKET, FRAME, SOFT TOP RH ASSY-WEATHERSTRIP,DOOR UPPER,RH FOR 73010-25950 WASHER-HARD TOP SHIM-FASTENER, SIDE, FOR 73010-25950 WEATHERSTRIP-ROOF LOWER FOR 73010-14625 / WEATHERSTRIP-ROOF LOWER FOR 73010-25950 CONNECTOR-MOULDING BACK WINDOW LH FOR 73010-14625 / CONNECTOR-MOULDING BACK WINDOW LH FOR 73010-25950 MOULDING-BACK WINDOW LH FOR 73010-14625 / MOULDING-BACK WINDOW LH FOR 73010-25950 CONNECTOR-MOULDING BACK WINDOW RH FOR 73010-14625 / CONNECTOR-MOULDING BACK WINDOW RH FOR 73010-25950 MOULDING-ROOF DRIP FRONT FOR 73010-14625 / MOULDING-ROOF DRIP FRONT FOR 73010-25950 WIRE-TENSION BACK WINDOW FOR 73010-14625 / WIRE-TENSION BACK WINDOW FOR 73010-25950 ASSY-WEATHERSTRIP,DOOR UPPER,LH FOR 73010-25950 ASSY-WEATHERSTRIP,DOOR UPPER,RH FOR 73010-14625 MOULDING-ROOF DRIP SIDE RH FOR 73010-25950 / MOULDING-ROOF DRIP SIDE LH FOR 73010-25950 FASTENER CENTER FOR 73010-25950 SHIM-FASTENER, CENTER FOR 73010-25950 ASSY-FASTENER, SIDE FOR 73010-25950 SET-FASTENER, ROOF REAR FOR 73010-25950 NUT-CAP GLASS-BACK WINDOW FOR 73010-14625 / GLASS-BACK WINDOW FOR 73010-25950 MOULDING-BACK WINDOW LH FOR 73010-25950 MOULDING-BACK WINDOW RH FOR 73010-14625 / MOULDING-BACK WINDOW RH FOR 73010-25950 CLIP-MOULDING WINDSHIELD FOR 73010-14625 / CLIP-MOULDING WINDSHIELD FOR 73010-25950 WEATHERSTRIP-BACK WINDOW FOR 73010-14625 / WEATHERSTRIP-BACK WINDOW FOR 73010-25950
