Datsun Fairlady 1600 Brake Master Cylinder (1965-67)

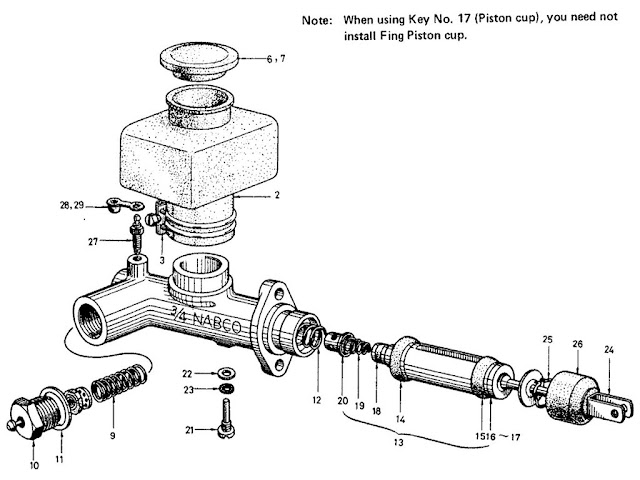

Datsun Fairlady Parts illustration no. 044-1 Brake Master Cylinder (Single) (1965-67)

044 -1  Brake Master Cylinder (Single) (1965-67)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-CYLINDER, BRAKE MASTER (3/4" NABCO)
  46010-146021.6L   - 67021
2RESERVOIR-BRAKE OIL
  46091-231001.6L   - 67021
3ASSY-BAND, BRAKE OIL RESERVOIR
  46016-W04001.6L   - 67021
4SET-CAP, BRAKE OIL RESERVOIR
  46020-N60001.6L   - 67021
5SET-CAP, BRAKE OIL RESERVOIR
  46020-N6000 1.6L   - 67021
6SET-CAP, BRAKE OIL RESERVOIR
  46020-N60001.6L   - 67021
7SET-CAP, BRAKE OIL RESERVOIR
  46020-N60001.6L   - 67021
8SPRING CYLINDER (TOKICO)
  46050-14600ALL   - 67021
9SPRING-VALVE
  46027-106001.6L   - 67021
10CAP-VALVE
  46038-122001.6L   - 67021
11GASKET-CAP VALVE
  46042-272601.6L   - 67021
12SPRING-PISTON
  46075-272601.6L   - 67021
13ASSY-PISTON, BRAKE MASTER
  46063-210011.6L   - 67021
14CUP-PISTON (PRIMARY)
  46078-272611.6L   - 67021
15CUP-PISTON (SECONDARY)
  46065-272611.6L   - 67021
16RING-PISTON CUP (SECONDARY)
  46069-272601.6L   - 67021
17CUP-PISTON (SECONDARY)
  28211-0503P1.6L   - 67021
18ASSY-VALVE INLET
  46073-308001.6L   - 67021
19SPRING VALVE INLET
  46056-272601.6L   - 67021
20RETAINER-SPRING
  46076-308001.6L   - 67021
21SCREW-STOPPER
  46032-272601.6L   - 67021
22GASKET
  46043-272601.6L   - 67021
23RING-O
  46079-272601.6L   - 67021
24ASSY-ROD, PUSH
  46081-129001.6L   - 67021
25RING-SNAP
  46070-27260ALL   - 67021
26COVER-DUST
  46100-27260ALL   - 67021
27SCREW-BLEEDER
  41128-30001ALL   - 67021
28CAP-BLEEDER SCREW
  41129-40F00 ALL   - 67021
29CAP-BLEEDER SCREW
  41129-40F00ALL   - 67021
30SHIM-MASTER CYLINDER (1.6T)
  46117-25600ALL   - 6702
  46117-27260ALL   - 6702
31SHIM-MASTER CYLINDER (1.6T)
  46117-27260ALL   - 670219
32SHIM-MASTER CYLINDER (0.6T)
  46118-25600ALL   - 6702
33SHIM-MASTER CYLINDER (0.8T)
  46118-25600ALL   - 670219
34SHIM-MASTER CYLINDER (0.5T)
  46119-25600ALL   - 6702
  46119-27260ALL   - 6702
35SHIM-MASTER CYLINDER (0.5T)
  46119-27260ALL   - 670219
36BOLT TO FIX BRAKE MASTER
  30614-01300ALL   - 67022
37NUT TO FIX BRAKE MASTER
  00911-24510ALL   - 67022
38WASHER-LOCK TO FIX BRAKE MASTER
  00915-21510ALL   - 67022
39KIT-A, BRAKE MASTER CYLINDER (SINGLE)
  46010-146251.6L   - 67021
40KIT-B, BRAKE MASTER CYLINDER (SINGLE)
  46010-146261.6L   - 67021
SCREW-BLEEDER CAP-VALVE GASKET-CAP VALVE ASSY-PISTON, BRAKE MASTER RING-PISTON CUP (SECONDARY) / CUP-PISTON (SECONDARY) RING-O SET-CAP, BRAKE OIL RESERVOIR CAP-BLEEDER SCREW ASSY-BAND, BRAKE OIL RESERVOIR RESERVOIR-BRAKE OIL SPRING-VALVE SPRING-PISTON CUP-PISTON (PRIMARY) CUP-PISTON (SECONDARY) ASSY-VALVE INLET SPRING VALVE INLET RETAINER-SPRING SCREW-STOPPER GASKET ASSY-ROD, PUSH RING-SNAP COVER-DUST
