Datsun Fairlady 1600/2000 Distributor (Hitachi)

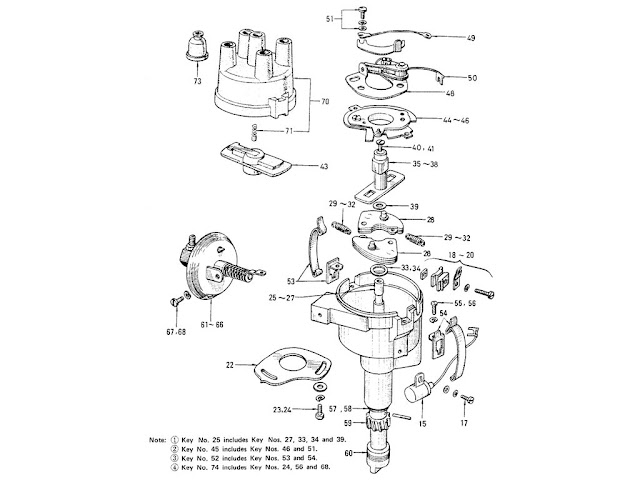

Datsun Fairlady Parts illustration no. 018-1 Distributor (Hitachi)

018 -1  Distributor (Hitachi)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-DISTRIBUTOR (HITACHI)
  22100-14606 1.6L   -   1
2ASSY-DISTRIBUTOR (HITACHI) (ISO)
  22100-146061.6L (EXC SPLU)   -   1
3ASSY-DISTRIBUTOR (HITACHI) (ISO) (NOT ADOPTED)
  22100-146061.6L (EXC SPLU)   -   1
4DISTRIBUTOR
  22100-14705SPLU   -   1
5DISTRIBUTOR (D417-57K) (ISO)
  22100-14705SPLU   -   1
6DISTRIBUTOR
  22100-A77011.6L EMISSION CONTROL6907 -   1
7DISTRIBUTOR
  22100-A77011.6L EMISSION CONTROL6907 -   1
8ASSY-DISTRIBUTOR (HITACHI)
  22100-25606 2L   -   1
9ASSY-DISTRIBUTOR (HITACHI) (ISO)
  22100-256062L (EXC SRLU)   -   1
10ASSY-DISTRIBUTOR (HITACHI) (ISO)
  22100-256062L (EXC SRLU)   -   1
11DISTRIBUTOR
  22100-25606 SRLU   -   1
12DISTRIBUTOR (ISO)
  22100-25606SRLU   -   1
13DISTRIBUTOR (ISO)
  22100-25606SRLU   -   1
14ASSY-CONDENSER
  22102-D1100 ALL   -   1
15ASSY-CONDENSER
  22102-D1100ALL   -   1
16SCREW
  23132-85060ALL   -   1
17SCREW
  23132-85060ALL   -   1
18ASSY-TERMINAL
  22403-11F01ALL (EXC SPLU & SRLU)   -   1
19ASSY-TERMINAL
  22403-11F01SPLU, SRLU   -   1
20ASSY-TERMINAL
  22403-11F01EMISSION CONTROL6907 -   1
21PLATE-FIXING
  22180-58100ALL   -   1
22PLATE FIXING
  22180-58100ALL   -   1
23BOLT-5
  22201-71300ALL   -   1
24BOLT-5 (ISO)
  22201-18005ALL   -   1
25ASSY-SHAFT, DISTRIBUTOR (INC. PIN KNOCK)
  22108-A7700ALL   -   1
26ASSY-SHAFT, DISTRIBUTOR
  22108-14600ALL   -   1
27ASSY-SHAFT, DISTRIBUTOR (ISO)
  22108-14605ALL   -   1
28ASSY-WEIGHT, GOVERNOR
  22109-71300ALL   -   2
29SET-SPRING, GOVERNOR
  22110-14600ALL (EXC SPLU & SRLU)   -   1
30SET-SPRING, GOVERNOR
  22110-25600SPLU   -   1
31SET-SPRING, GOVERNOR
  22110-A77001.6L EMISSION CONTROL6907 -   1
32SET-SPRING, GOVERNOR
  22110-256002L EMISSION CONTROL   -   1
33WASHER-THRUST
  22118-85060ALL   -   2
34WASHER-THRUST
  22118-85060ALL   -   1
35SET-CAM, DISTRIBUTOR
  22132-14605ALL (EXC SPLU & SRLU)   -   1
36SET-CAM, DISTRIBUTOR (ISO)
  22132-14605ALL (EXC SPLU & SRLU)   -   1
37SET-CAM, DISTRIBUTOR
  22132-25600SPLU, SRLU   - 69061
38SET-CAM, DISTRIBUTOR
  22132-25605EMISSION CONTROL6907 -   1
39WASHER-THRUST
  22117-32200ALL   -   1
40SCREW-4
  22103-50000ALL   -   1
41SCREW-4 (ISO)
  22139-18005ALL   -   1
42ASSY-HEAD, ROTOR
  22157-78500ALL   -   1
43ASSY-HEAD, ROTOR
  22157-78500ALL   -   1
44ASSY-BREAKER, CONTACT
  22136-H2301ALL   -   1
45ASSY-BREAKER, CONTACT
  22136-H2301ALL   -   1
46ASSY-BREAKER, CONTACT
  22136-H2301ALL6907 -   1
47SET-CONTACT, IGNITION POINT
  22145-89905ALL   -   1
48SET-CONTACT, IGNITION POINT
  22145-89905ALL   -   1
49ASSY-WIRE, LEAD
  22183-A5502ALL   -   1
50ASSY-WIRE, GROUND
  22182-A5501ALL   -   1
51SCREW-POINT SET
  22149-18005ALL   -   2
52SET-CLAMP CAP
  22167-H2300ALL   -   1
53ASSY-CLAMP, CAP (1)
  22167-71300ALL   -   1
54ASSY-CLAMP, CAP (2)
  22168-71300ALL   -   1
55SCREW-4D
  22103-50000ALL   -   2
56SCREW-4D (ISO)
  22103-E4310ALL   -   2
57WASHER-THRUST (T-0.15)
  22148-14600ALL   -   2
58WASHER-THRUST (T-0.8)
  22118-43800ALL   -   1
59ASSY-PINION
  22948-14600ALL   -   1
60ASSY-COUPLING, SHAFT
  22119-10400ALL   -   1
61CONTROL-VACUUM (ADVANCE)
  22301-146001.6L (EXC SPLU)   -   1
62CONTROL-VACUUM (ADVANCE)
  22301-A7700SPLU   -   1
63CONTROL-VACUUM (ADVANCE)
  22301-M15002L (EXC SRLU)   -   1
64CONTROL-VACUUM (ADVANCE)
  22301-M15002L (EXC SRLU)   -   1
65CONTROL-VACUUM (ADVANCE)
  22301-A3502SRLU   -   1
66CONTROL-VACUUM (ADVANCE)
  22301-A3502SRLU   -   1
67SCREW 4 MM
  23139-12211ALL   -   2
68SCREW 4 MM (ISO)
  22139-18005ALL   -   2
69ASSY-CAP, DISTRIBUTOR
  22162-05M02ALL   -   1
70ASSY-CAP, DISTRIBUTOR
  22162-05M02ALL   -   1
71ASSY-POINT, CARBON (BRUSH)
  22165-30101ALL   -   1
72CAP-COIL WIRE
  22171-00800ALL   -   5
73DUST-SEAL
  22248-A5502ALL   -   1
74SET-SCREW
  22750-H2300ALL   -   1
ASSY-CAP, DISTRIBUTOR ASSY-POINT, CARBON (BRUSH) ASSY-WIRE, LEAD SET-CONTACT, IGNITION POINT SCREW-4 / SCREW-4 (ISO) ASSY-HEAD, ROTOR SET-CAM, DISTRIBUTOR SET-SPRING, GOVERNOR ASSY-WEIGHT, GOVERNOR ASSY-TERMINAL WASHER-THRUST SCREW-4D / SCREW-4D (ISO) ASSY-CLAMP, CAP (2) SCREW ASSY-CONDENSER ASSY-CLAMP, CAP (1) ASSY-SHAFT, DISTRIBUTOR (INC. PIN KNOCK) / ASSY-SHAFT, DISTRIBUTOR (ISO) SCREW 4 MM / SCREW 4 MM (ISO) PLATE FIXING BOLT-5 / BOLT-5 (ISO) ASSY-PINION ASSY-COUPLING, SHAFT WASHER-THRUST (T-0.8) DUST-SEAL SCREW-POINT SET ASSY-WIRE, GROUND ASSY-BREAKER, CONTACT WASHER-THRUST ASSY-WEIGHT, GOVERNOR SET-SPRING, GOVERNOR CONTROL-VACUUM (ADVANCE) WASHER-THRUST (T-0.15)
