Datsun Fairlady 1600 (R16) Manifold

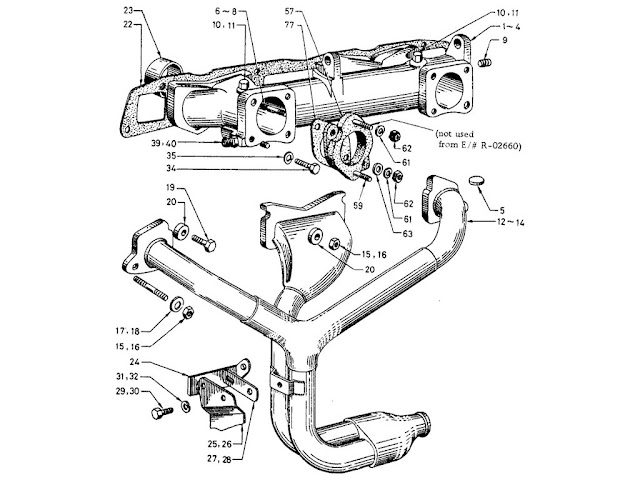

Datsun Fairlady Parts illustration no. 005-1 Manifold 1600 (R16) [1]

005 -1  Manifold 1600 (R16) [1]
KeyPart No.ModelApplied DateQty
FromTo
1MANIFOLD-INTAKE
  14002-146001.6L   - 67021
2MANIFOLD-INTAKE
  14002-146011.6L6703 -   1
3MANIFOLD-INTAKE
  14002-14725SPLU6710 -   1
4MANIFOLD-INTAKE
  14003-A77001.6L EMISSION CONTROL6907 -   1
5PLUG-WELCH (25)
  00933-1251A1.6L   -   2
6STUD-CARBURETOR
  00214-516101.6L   -   4
7STUD-CARBURETOR
  00214-542101.6L   -   4
8STUD-CARBURETOR
  08223-842101.6L6703 -   4
9PLUG-TAPER THREAD
  00933-1251A1.6L   -   1
10PLUG, BALANCE TUBE
  00931-302101.6L   -   1
11PLUG, BALANCE TUBE
  08931-3021A1.6L6703 -   1
12ASSY-MANIFOLD, EXHAUST
  14060-122021.6L   -   1
13ASSY-MANIFOLD, EXHAUST
  14060-146011.6L6703 - 67091
14ASSY-MANIFOLD, EXHAUST
  14060-146041.6L6710 -   1
15NUT-MANIFOLD TO CYLINDER HEAD
  00911-245101.6L   - 67026
16NUT-MANIFOLD TO CYLINDER HEAD
  08911-608001.6L6703 -   6
17WASHER-MANIFOLD TO CYLINDER HEAD
  00915-415001.6L   - 67024
18WASHER-MANIFOLD TO CYLINDER HEAD
  08915-4381A1.6L6703 -   4
19BOLT
  00121-535001.6L   -   4
20YOKE MANIFOLD
  14037-322001.6L   -   6
21GASKET-MANIFOLD TO CYLINDER HEAD
  14035-14611 1.6L   -   1
22GASKET-MANIFOLD TO CYLINDER HEAD
  14035-146111.6L   -   1
23COLLAR-INTAKE MANIFOLD
  14034-146001.6L   -   2
24SUPPORT-EXHAUST MANIFOLD
  14065-122001.6L   -   1
25INSULATOR-EXHAUST MANIFOLD
  14041-122011.6L   -   1
26INSULATOR-EXHAUST MANIFOLD
  14041-25601SPLU6710 -   1
27BAR-EXHAUST MANIFOLD
  14066-122001.6L   -   1
28BAR-EXHAUST MANIFOLD
  14066-25601SPLU6710 -   1
29BOLT-SUPPORT TO INSULATOR
  00114-516101.6L   - 67022
30BOLT-SUPPORT TO INSULATOR
  08120-8161A1.6L6703 -   2
31WASHER-LOCK
  00915-114101.6L   - 67022
32WASHER-LOCK
  08915-1381A1.6L6703 -   2
33PLATE-HEAT SHIELD,CARBURETOR
  14330-146001.6L   -   1
34BOLT TO FIX HEAT SHIELD PLATE
  00111-514101.6L   -   4
35WASHER-LOCK TO FIX HEAT SHIELD PLATE
  00915-115101.6L   -   4
36COCK 3-WAY
  14050-146001.6L   -   1
37COCK 3-WAY
  14050-146001.6L   -   1
38CAP-CONNECTOR
  14058-146001.6L   -   2
39CONNECTOR-MANIFOLD TO WATER PUMP
  00712-152001.6L   - 67021
  08712-150001.6L6703 -   1
40CONNECTOR-MANIFOLD TO WATER PUMP
  08712-150001.6L6703 -   1
41NUT-MANIFOLD TO CYLINDER HEAD
  14052-122001.6L   - 67021
42NUT-MANIFOLD TO CYLINDER HEAD
  14052-146001.6L6703 -   1
43TUBE-MANIFOLD TO CYLINDER HEAD
  14053-146011.6L   -   1
44TUBE-MANIFOLD TO CYLINDER HEAD
  14053-146011.6L   -   1
45TUBE-MANIFOLD TO WATER PUMP
  14054-146011.6L   -   1
46CLAMP-WATER TUBE
  14055-122001.6L   -   2
47HOSE-WATER
  14056-146001.6L   -   3
48HOSE-WATER
  14056-146001.6L   -   3
49HOSE-WATER TO PUMP
  A4056-25605SPLU6710 -   3
50CLAMP HOSE
  00721-119001.6L   - 67026
51CLAMP-HOSE
  01555-00391 1.6L   -   8
52CLAMP HOSE
  01555-003911.6L   -   8
53SCREW TO FIX WATER TUBE CLAMP
  00344-008101.6L   -   4
54NUT TO FIX WATER TUBE CLAMP
  00911-140101.6L   -   4
55WASHER-LOCK TO FIX WATER TUBE CLAMP
  00915-110101.6L   -   4
56CAP-CONNECTOR
  14058-146001.6L   -   2
57INSULATOR CARBURETOR
  16174-146001.6L   -   2
58INSULATOR-CARBURETOR
  16174-158011.6L   -   2
59STUD
  00214-516101.6L   -   4
60STUD
  00214-545101.6L   -   4
61WASHER-LOCK
  00915-115101.6L   -   8
62NUT
  00911-245101.6L   -   8
63WASHER-PLAIN
  00915-415001.6L   -   4
64ASSY TUBE-OVER FLOW, CARBURETOR
  16031-122011.6L   -   2
65ASSY TUBE-OVER FLOW, CARBURETOR
  16032-A77001.6L EVAPO   -   2
66BRACKET-DRAIN TUBE
  14012-104001.6L   -   2
67INSULATOR (RUBBER FERRULE)
  18455-300001.6L   -   2
68ASSY-BRACKET, ACCELERATOR WIRE & TUBE
  16380-146001.6L   - 67021
69ASSY-BRACKET, ACCELERATOR WIRE & TUBE
  16380-146021.6L6703 -   1
70BRACKET-ACCELERATOR WIRE
  16380-14700SPLU6710 -   1
71SPRING-ADJUST SCREW
  16378-146001.6L   -   1
72SCREW-THROTTLE ADJUST
  16379-146011.6L   -   1
73SCREW-THROTTLE ADJUST
  16379-146011.6L6703 -   1
74SCREW
  00369-012101.6L   -   4
75WASHER-LOCK
  00915-110101.6L   -   2
76GASKET-INSULATOR, CARBURETOR
  16175-A5101 1.6L   -   4
77GASKET-INSULATOR, CARBURETOR
  16175-A51011.6L   -   4
78SCREW
  00111-412101.6L   -   2
79WASHER-LOCK
  00915-114101.6L   -   2
COLLAR-INTAKE MANIFOLD GASKET-MANIFOLD TO CYLINDER HEAD PLUG, BALANCE TUBE MANIFOLD-INTAKE PLUG-TAPER THREAD WASHER-LOCK TO FIX HEAT SHIELD PLATE BOLT YOKE MANIFOLD NUT WASHER-LOCK PLUG-WELCH (25) ASSY-MANIFOLD, EXHAUST WASHER-PLAIN YOKE MANIFOLD SUPPORT-EXHAUST MANIFOLD WASHER-LOCK STUD-CARBURETOR PLUG, BALANCE TUBE INSULATOR CARBURETOR GASKET-INSULATOR, CARBURETOR CONNECTOR-MANIFOLD TO WATER PUMP BOLT TO FIX HEAT SHIELD PLATE NUT WASHER-LOCK STUD NUT-MANIFOLD TO CYLINDER HEAD WASHER-MANIFOLD TO CYLINDER HEAD NUT-MANIFOLD TO CYLINDER HEAD BOLT-SUPPORT TO INSULATOR INSULATOR-EXHAUST MANIFOLD BAR-EXHAUST MANIFOLD SPRING-ADJUST SCREW SCREW CAP-CONNECTOR HOSE-WATER / HOSE-WATER TO PUMP HOSE-WATER / HOSE-WATER TO PUMP HOSE-WATER / HOSE-WATER TO PUMP NUT-MANIFOLD TO CYLINDER HEAD CONNECTOR-MANIFOLD TO WATER PUMP PLATE-HEAT SHIELD,CARBURETOR TUBE-MANIFOLD TO WATER PUMP CLAMP-WATER TUBE WASHER-LOCK TO FIX WATER TUBE CLAMP ASSY TUBE-OVER FLOW, CARBURETOR BRACKET-DRAIN TUBE INSULATOR (RUBBER FERRULE) STUD INSULATOR-CARBURETOR SCREW-THROTTLE ADJUST SCREW WASHER-LOCK WASHER-LOCK ASSY-BRACKET, ACCELERATOR WIRE & TUBE / BRACKET-ACCELERATOR WIRE CAP-CONNECTOR COCK 3-WAY CLAMP HOSE SCREW TO FIX WATER TUBE CLAMP TUBE-MANIFOLD TO CYLINDER HEAD CLAMP-WATER TUBE WASHER-LOCK TO FIX WATER TUBE CLAMP NUT TO FIX WATER TUBE CLAMP NUT TO FIX WATER TUBE CLAMP
