Datsun Fairlady 1600 (R16) Piston & Crankshaft

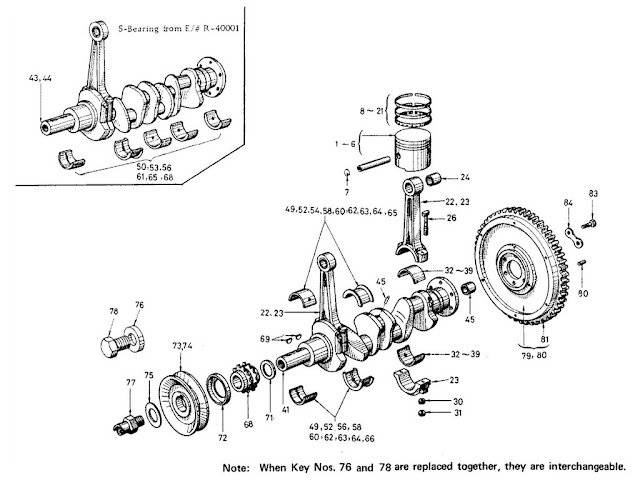

Datsun Fairlady Parts illustration no. 003-1 Piston & Crankshaft 1600 (R16)

003 -1  Piston & Crankshaft 1600 (R16)
KeyPart No.ModelApplied DateQty
FromTo
1PISTON W/PIN (STD. SIZE)
  12010-146111.6L   -   4
2PISTON W/PIN (0.25M/M OVER SIZE)
  12010-146131.6L   -   4
3PISTON W/PIN (0.50M/M OVER SIZE)
  12010-146141.6L   -   4
4PISTON W/PIN (0.75M/M OVER SIZE)
  12010-146151.6L   -   4
5PISTON W/PIN (1.00M/M OVER SIZE)
  12010-146161.6L   -   4
6PISTON W/PIN (1.50M/M OVER SIZE)
  12010-146181.6L   -   4
7RING-SNAP, PISTON PIN
  12032-322001.6L   -   4
8SET-RING, PISTON (STD. SIZE)
  12033-Y44601.6L   -   1
9SET-RING, PISTON (STD. SIZE)
  12033-Y44601.6L   -   1
10SET-RING, PISTON (STD. SIZE), FOR RACE
  12033-201001.6L   -   1
11SET-RING, PISTON (0.25M/M OVER SIZE)
  12035-146001.6L   -   1
12SET-RING, PISTON (0.25M/M OVER SIZE), RIK-VENT
  12035-146011.6L   -   1
13SET-RING, PISTON (0.50M/M OVER SIZE)
  12036-R9000 1.6L   -   1
14SET-RING, PISTON (0.50M/M OVER SIZE), RIK-VENT
  12036-R90001.6L   -   1
15SET-RING, PISTON (0.75M/M OVER SIZE)
  12037-146011.6L   -   1
16SET-RING, PISTON (0.75M/M OVER SIZE), RIK-VENT
  12037-146011.6L   -   1
17SET-RING, PISTON (1.00M/M OVER SIZE)
  12038-Y4460 1.6L   -   1
18SET-RING, PISTON (1.00M/M OVER SIZE), RIK-VENT
  12038-Y44601.6L   -   1
19SET-RING, PISTON (1.25M/M OVER SIZE)
  12039-146001.6L   -   1
20SET-RING, PISTON (1.50M/M OVER SIZE)
  12040-146011.6L   -   1
21SET-RING, PISTON (1.50M/M OVER SIZE), RIK-VENT
  12040-146011.6L   -   1
22CONNECTING ROD
  12100-B11001.6L   -   4
23CONNECTING ROD
  12100-B11001.6L   -   4
24BUSHING-CONNECTING ROD, SMALL END
  12030-322001.6L   -   4
25BOLT-CONNECTING ROD
  12109-E0711 1.6L   -   8
26BOLT-CONNECTING ROD
  12109-E07111.6L   -   8
27BOLT-CONNECTING ROD
  12109-E0711 1.6L   -   8
28BOLT-CONNECTING ROD
  12109-E07111.6L   -   8
29BOLT-CONNECTING ROD
  12109-E07111.6L   -   8
30NUT
  00911-246101.6L   -   8
31NUT-CONNECTING ROD
  12112-580001.6L   -   8
32BUSHING-CONNECTING ROD (STD. SIZE F770) (ROD BEARING)
  12111-P51001.6L   -   8
33BUSHING-CONNECTING ROD (0.02M/M UNDER SIZE F770) (ROD BEARING)
  12123-122101.6L   -   8
34BUSHING-CONNECTING ROD (0.06M/M UNDER SIZE F770) (ROD BEARING)
  12121-122101.6L   -   8
35BUSHING-CONNECTING ROD (0.12M/M UNDER SIZE F770) (ROD BEARING)
  12122-122101.6L   -   8
36BUSHING-CONNECTING ROD (0.25M/M UNDER SIZE F770) (ROD BEARING)
  12117-P51001.6L   -   8
37BUSHING-CONNECTING ROD (0.50M/M UNDER SIZE F770) (ROD BEARING)
  12118-P51121.6L   -   8
38BUSHING-CONNECTING ROD (0.75M/M UNDER SIZE F770) (ROD BEARING)
  12119-P51121.6L   -   8
39BUSHING-CONNECTING ROD (1.00M/M UNDER SIZE F770) (ROD BEARING)
  12120-P51121.6L   -   8
40COMP-SHAFT, CRANK (CRANKSHAFT)
  12200-745001.6L   - 67021
41COMP-SHAFT, CRANK (CRANKSHAFT)
  12200-745001.6L   - 67021
42COMP-SHAFT, CRANK (CRANKSHAFT)
  12200-A74101.6L6703 -   1
43COMP-SHAFT, CRANK (CRANKSHAFT)
  12200-A74101.6L6703 -   1
44COMP-SHAFT, CRANK (CRANKSHAFT)
  12200-A74101.6L6703 -   1
45PLUG-OIL GALLERY
  00931-206101.6L   -   4
46BUSHING-1ST MOTION SHAFT (NOT USED FROM E/# R-40001)
  32202-B95001.6L   - 67021
47BEARNG-NEEDLE PILOT
  32202-095001.6L   - 67021
48SET-BUSHING, CRANK SHAFT (STD. SIZE) (MAIN BEARING), F770 3-BEARINGS
  12207-736001.6L   - 67021
49SET-BUSHING, CRANK SHAFT (STD. SIZE) (MAIN BEARING), F550 3-BEARINGS
  12207-736001.6L   - 67021
50SET-BUSHING, CRANK SHAFT (STD. SIZE) (MAIN BEARING), F770 5-BEARINGS
  12207-E07021.6L6703 -   1
51SET-BUSHING, CRANK SHAFT F500 U/S 0.02MM, 3-BEARINGS
  12208-122011.6L   - 67021
52SET-BUSHING, CRANK SHAFT F500 U/S 0.02MM, 3-BEARINGS
  12208-122011.6L   - 67021
53SET-BUSHING, CRANK SHAFT F770 U/S 0.02MM, 5-BEARINGS
  12208-784001.6L6703 -   1
54BUSHING-MAIN BEARING F500
  12248-712001.6L   -   2
55SET-BUSHING, CRANK SHAFT F770 0.25MM, 3-BEARINGS
  12209-122011.6L   - 67021
56SET-BUSHING, CRANK SHAFT F500 0.25MM, 3-BEARINGS
  12209-122011.6L   - 67021
57SET-BUSHING, CRANK SHAFT F770 0.25MM, 5-BEARINGS
  12209-E07021.6L6703 -   1
58SET-BUSHING, CRANK SHAFT F550 0.50MM, 3-BEARINGS
  12210-122011.6L   - 67021
  12210-736001.6L   - 67021
59SET-BUSHING, CRANK SHAFT F770 0.50MM, 3-BEARINGS
  12210-122011.6L   - 67021
60SET-BUSHING, CRANK SHAFT F770 0.50MM, 3-BEARINGS
  12210-122011.6L   - 67021
61SET-BUSHING, CRANK SHAFT F770 0.50MM, 5-BEARINGS
  12210-E07021.6L6703 -   1
62SET-BUSHING, CRANK SHAFT F550 0.75MM, 3-BEARINGS
  12211-122011.6L   - 67021
  12211-736001.6L   - 67021
63SET-BUSHING, CRANK SHAFT F770 0.75MM, 3-BEARINGS
  12211-122011.6L   - 67021
64SET-BUSHING, CRANK SHAFT F770 0.75MM, 3-BEARINGS
  12211-122011.6L   - 67021
65SET-BUSHING, CRANK SHAFT F770 0.75MM, 5-BEARINGS
  12211-784001.6L6703 -   1
66SET-BUSHING, CRANK SHAFT F550 1.00MM, 3-BEARINGS
  12212-736001.6L   - 67021
67SET-BUSHING, CRANK SHAFT F770 1.00MM, 3-BEARINGS
  12212-736001.6L   - 67021
68SET-BUSHING, CRANK SHAFT F770 1.00MM, 5-BEARINGS
  12212-784001.6L6703 -   1
69KEY-WOODRUF
  00926-516001.6L   -   2
70GEAR-CRANKSHAT
  13021-736011.6L   -   2
71SHIM-CRANKSHAFT GEAR
  12299-322001.6L   -
72OIL THROWER-CRANKSHAFT (SLINGER)
  12302-322001.6L   -   1
73PULLEY-CRANKSHAFT
  12303-322001.6L   -   1
74PULLEY-CRANKSHAFT (130M/M)
  12303-14700SPLU   -   1
75WASHER-LOCK, STARTING NUT (WASHER PULLEY)
  12308-322001.6L   -   1
76WASHER-LOCK, STARTING NUT (WASHER PULLEY)
  12308-650001.6L   -   1
77NUT-STARTING FOR CRANK HANDLE
  12309-122001.6L   -   1
78NUT-STARTING NOT FOR CRANK HANDLE
  12309-122001.6L   -   1
79FLYWHEEL
  12310-146001.6L   - 67021
80FLYWHEEL
  12310-188101.6L6703 -   1
81RING GEAR, FLYWHEEL
  12312-19G001.6L   -   1
82DOWELL-CLUTCH TO FLYWHEEL
  12313-106001.6L   -   2
83BOLT
  00134-625101.6L   -   6
84PLATE-LOCK, FLYWHEEL BOLT (WASHER-LOCK)
  12314-300001.6L   -   3
BOLT-CONNECTING ROD BUSHING-CONNECTING ROD (STD. SIZE F770) (ROD BEARING) / BUSHING-CONNECTING ROD (1.00M/M UNDER SIZE F770) (ROD BEARING) PLUG-OIL GALLERY CONNECTING ROD PLUG-OIL GALLERY PLATE-LOCK, FLYWHEEL BOLT (WASHER-LOCK) BOLT RING GEAR, FLYWHEEL PULLEY-CRANKSHAFT / PULLEY-CRANKSHAFT (130M/M) WASHER-LOCK, STARTING NUT (WASHER PULLEY) SHIM-CRANKSHAFT GEAR SET-BUSHING, CRANK SHAFT F500 0.25MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT F550 0.50MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT F770 0.50MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT F770 0.75MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT F550 1.00MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT (STD. SIZE) (MAIN BEARING), F770 5-BEARINGS SET-BUSHING, CRANK SHAFT F770 U/S 0.02MM, 5-BEARINGS SET-BUSHING, CRANK SHAFT F500 0.25MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT F770 0.50MM, 5-BEARINGS SET-BUSHING, CRANK SHAFT F770 0.75MM, 5-BEARINGS SET-BUSHING, CRANK SHAFT F770 1.00MM, 5-BEARINGS PISTON W/PIN (STD. SIZE) / PISTON W/PIN (1.50M/M OVER SIZE) RING-SNAP, PISTON PIN SET-RING, PISTON (STD. SIZE) / SET-RING, PISTON (1.50M/M OVER SIZE), RIK-VENT CONNECTING ROD BUSHING-CONNECTING ROD, SMALL END CONNECTING ROD BUSHING-CONNECTING ROD (STD. SIZE F770) (ROD BEARING) / BUSHING-CONNECTING ROD (1.00M/M UNDER SIZE F770) (ROD BEARING) NUT NUT-CONNECTING ROD KEY-WOODRUF FLYWHEEL FLYWHEEL / FLYWHEEL WASHER-LOCK, STARTING NUT (WASHER PULLEY) NUT-STARTING NOT FOR CRANK HANDLE NUT-STARTING FOR CRANK HANDLE OIL THROWER-CRANKSHAFT (SLINGER) SET-BUSHING, CRANK SHAFT F770 1.00MM, 5-BEARINGS COMP-SHAFT, CRANK (CRANKSHAFT) COMP-SHAFT, CRANK (CRANKSHAFT) SET-BUSHING, CRANK SHAFT (STD. SIZE) (MAIN BEARING), F550 3-BEARINGS SET-BUSHING, CRANK SHAFT F500 U/S 0.02MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT F550 0.75MM, 3-BEARINGS SET-BUSHING, CRANK SHAFT F770 0.75MM, 3-BEARINGS
