Datsun Fairlady 2000 (U20) Cylinder Block

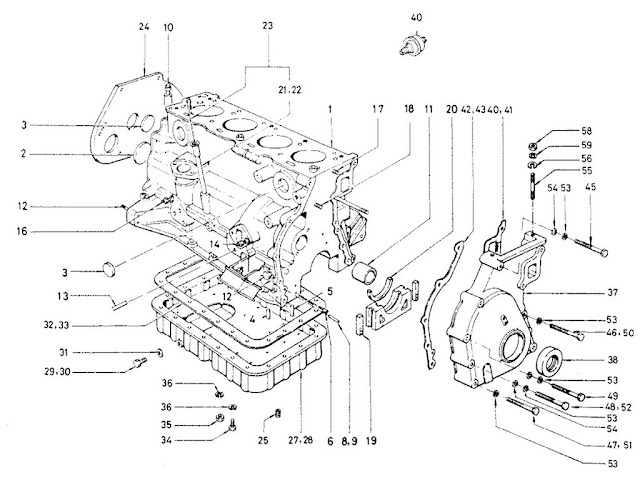

Datsun Fairlady Parts illustration no. 001A-1 Cylinder Block 2000 (U20)

001A -1  Cylinder Block 2000 (U20)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-BLOCK, CYLINDER WITH PLUGS
  11010-255002L   -   1
2PLUG-WELCH, JACK SHAFT, REAR
  11019-322012L   -   1
3PLUG-WELCH (35)
  00933-1355A2L   -   6
4PLUG-TAPER (12.7), MAIN GALLERY
  11024-K01002L   -   2
5PLUG-TAPER (6,5), OIL GALLERY, FRONT
  11024-782002L   -   1
6JET-OIL, CHAIN TENSIONER
  13081-782002L   -   1
7DOWEL-TIMING CHAIN CASE
  11046-734022L   -   2
8DOWEL-TIMING CHAIN CASE
  11046-734022L   -   2
9DOWEL-TIMING CHAIN
  30412-850602L   -   2
10BUSHING-OIL PUMP DRIVE SPINDLE
  15042-201002L   -   1
11SET-BUSH, JACK SHAFT (STANDARD) (INC. FRONT, MIDDLE AND REAR)
  13002-712042L   -   1
12PLUG-HEXAGON TAPER THREAD, OIL GALLERY
  08931-3021A2L   -   1
13PLUG-TAPER 8, OIL GALLERY
  11023-782002L   -   1
14STUD-FUEL PUMP (25M/M)
  08223-825102L   -   2
15STUD-FUEL PUMP (32M/M)
  08223-832102L   -   2
16STUD-OIL PUMP
  14064-E30002L   -   2
17STUD H8 X 1.25 X 92, WATER PUMP
  13061-255002L   -   1
18STUD H10 X 1.25 X 92, WATER PUMP
  13062-255002L   -   1
19SEAL-OIL, REAR BEARING CAP SIDE (CRANKSHAFT SEAL)
  12289-146002L   -   2
20SEAL-OIL, CRANK SHAFT REAR
  12279-322002L   -   2
21GUIDE-OIL LEVEL GAUGE (DIPSTICK)
  15146-122012L (EXC EVAPO)   -   1
22GUIDE-OIL LEVEL GAUGE (DIPSTICK)
  15146-A77002L EVAPO   -   1
23ASSY-GAUGE, OIL LEVEL (DIPSTICK)
  15140-122012L   -   1
24PLATE-ENGINE REAR
  30411-782022L   -   1
25PLUG-DRAIN, BRASS
  21211-180002L   -   1
26ASSY-PAN,OIL FOR SOLEX CARBURETOR
  11110-255002L   -   1
27ASSY-PAN,OIL FOR SOLEX CARBURETOR
  11110-255002L   -   1
28ASSY-PAN,OIL FOR SU CARBURETOR
  11110-122002L   -   1
29PLUG-DRAIN
  11128-U8000 2L   -   1
30PLUG-DRAIN
  11128-U80002L   -   1
31WASHER-DRAIN PLUG
  11026-610002L   -   1
32GASKET-OIL PAN T 1.2
  11121-25502 2L   -   1
33GASKET-OIL PAN
  11121-255022L   -   1
34BOLT-HEXAGON M6 X 1.0 TO ATTACH OIL PAN TO CYLINDER BLOCK
  08130-618102L   -   18
35NUT-HEXAGON M6 X 1.0 TO ATTACH OIL PAN TO CYLINDER BLOCK
  08911-105102L   -   4
36WASHER-SPRING M6 TO ATTACH OIL PAN TO CYLINDER BLOCK
  08915-1361A2L   -   22
37ASSY-COVER, FRONT
  13500-255012L   -   1
38SEAL-OIL,FRONT COVER
  13042-A8601 2L   -   1
39SEAL-OIL,FRONT COVER
  13042-A86012L   -   1
40GASKET-FRONT COVER R.H
  13520-255002L   -   1
41GASKET-FRONT COVER R.H
  13520-255002L   -   1
42GASKET-FRONT COVER L.H
  13521-255002L   -   1
43GASKET-FRONT COVER L.H
  13521-255002L   -   1
44ASSY-GAUGE, OIL PRESSURE, ENGINE SIDE
  25078-32200ALL   -   1
45BOLT M8XL40 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  08120-840102L   -   1
46BOLT M8XL40 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  15267-78211SR   -   2
47BOLT M8XL98 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  15036-66700SRL   -   2
48BOLT M8X1, 25XL72 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  15267-25600SRLU   -   2
49BOLT M8XL65 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  15267-782132L   -   2
50BOLT M8XL78 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  13541-25500SR   -   2
51BOLT M8XL70 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  13540-25500SRL   -   2
52BOLT M8XL85 TO ATTACH FRONT COVER TO CYLINDER BLOCK
  15267-14700SRLU   -   2
53WASHER-SPRING
  08915-1381A2L   -   7
54WASHER-PLAIN
  08915-4381A2L   -   5
55STUD TO FIX FRONT COVER TO CYLINDER HEAD
  08228-614102L   -   2
56WASHER-LOCK TO FIX FRONT COVER TO CYLINDER HEAD
  08915-1361A2L   -   2
58NUT TO FIX FRONT COVER TO CYLINDER HEAD
  08911-1062A2L   -   2
59WASHER-PLAIN TO FIX FRONT COVER TO CYLINDER HEAD
  08915-4361A2L   -   2
PLUG-WELCH, JACK SHAFT, REAR PLUG-WELCH (35) PLUG-TAPER (6,5), OIL GALLERY, FRONT STUD-OIL PUMP PLUG-TAPER 8, OIL GALLERY PLATE-ENGINE REAR GUIDE-OIL LEVEL GAUGE (DIPSTICK) STUD H8 X 1.25 X 92, WATER PUMP SET-BUSH, JACK SHAFT (STANDARD) (INC. FRONT, MIDDLE AND REAR) SEAL-OIL, CRANK SHAFT REAR GASKET-FRONT COVER L.H GASKET-OIL PAN T 1.2 / GASKET-OIL PAN PLUG-DRAIN WASHER-SPRING M6 TO ATTACH OIL PAN TO CYLINDER BLOCK JET-OIL, CHAIN TENSIONER WASHER-PLAIN TO FIX FRONT COVER TO CYLINDER HEAD WASHER-PLAIN ASSY-COVER, FRONT BOLT M8XL40 TO ATTACH FRONT COVER TO CYLINDER BLOCK SEAL-OIL,FRONT COVER WASHER-SPRING WASHER-SPRING WASHER-PLAIN WASHER-SPRING BOLT M8XL98 TO ATTACH FRONT COVER TO CYLINDER BLOCK BOLT M8XL70 TO ATTACH FRONT COVER TO CYLINDER BLOCK ASSY-BLOCK, CYLINDER WITH PLUGS PLUG-WELCH (35) PLUG-TAPER (12.7), MAIN GALLERY PLUG-HEXAGON TAPER THREAD, OIL GALLERY BUSHING-OIL PUMP DRIVE SPINDLE ASSY-GAUGE, OIL LEVEL (DIPSTICK) GASKET-FRONT COVER R.H STUD H10 X 1.25 X 92, WATER PUMP GASKET-FRONT COVER R.H WASHER-DRAIN PLUG WASHER-SPRING M6 TO ATTACH OIL PAN TO CYLINDER BLOCK NUT-HEXAGON M6 X 1.0 TO ATTACH OIL PAN TO CYLINDER BLOCK BOLT-HEXAGON M6 X 1.0 TO ATTACH OIL PAN TO CYLINDER BLOCK PLUG-DRAIN, BRASS ASSY-PAN,OIL FOR SOLEX CARBURETOR / ASSY-PAN,OIL FOR SU CARBURETOR DOWEL-TIMING CHAIN CASE / DOWEL-TIMING CHAIN SEAL-OIL, REAR BEARING CAP SIDE (CRANKSHAFT SEAL) PLUG-HEXAGON TAPER THREAD, OIL GALLERY STUD-FUEL PUMP (25M/M) NUT TO FIX FRONT COVER TO CYLINDER HEAD WASHER-LOCK TO FIX FRONT COVER TO CYLINDER HEAD STUD TO FIX FRONT COVER TO CYLINDER HEAD WASHER-SPRING BOLT M8XL40 TO ATTACH FRONT COVER TO CYLINDER BLOCK WASHER-SPRING BOLT M8XL78 TO ATTACH FRONT COVER TO CYLINDER BLOCK BOLT M8XL65 TO ATTACH FRONT COVER TO CYLINDER BLOCK BOLT M8X1, 25XL72 TO ATTACH FRONT COVER TO CYLINDER BLOCK BOLT M8XL85 TO ATTACH FRONT COVER TO CYLINDER BLOCK
