Datsun Fairlady 1600/2000 Emission Control Device

The emission control device was fitted to cars sold in USA & Canada from 1968 year models up to 1970.

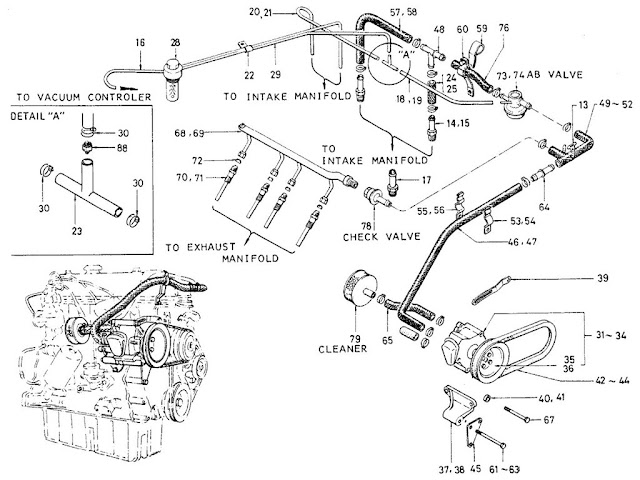

Datsun Fairlady Parts illustration no. 002B-1 Emission Control Device

002B -1  Emission Control Device
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-BY PASS VALVE
  14940-A77001.6L EXHAUST & EVAPO   -   1
2GASKET-BY PASS VALVE
  14942-A77001.6L EXHAUST & EVAPO   -   1
3TUBE-BY PASS FRONT
  14944-A77001.6L EXHAUST & EVAPO   -   1
4TUBE-BY PASS CENTER
  14945-A77001.6L EXHAUST & EVAPO   -   1
5TUBE-BY PASS REAR
  14946-A77001.6L EXHAUST & EVAPO   -   1
6CONNECTOR-3 WAY
  14948-A77001.6L EXHAUST & EVAPO   -   1
7CLAMP-HOSE
  16439-N210A1.6L EXHAUST & EVAPO   -   6
8BOLT HEX M6 X 1.0
  08110-6202A1.6L EXHAUST & EVAPO   -   2
9SPRING LOCK WASHER
  08915-1361A1.6L EXHAUST & EVAPO   -   2
10ASSY-NEUTRAL, 3RD & 4TH GEAR SWITCH
  32006-K20041.6L EXHAUST & EVAPO   -   2
11ASSY CLUTCH SWITCH (NOT ADOPTED)
  25320-A55011.6L EXHAUST & EVAPO   -   1
12ASSY CLUTCH SWITCH
  25320-A55011.6L EXHAUST & EVAPO   -   1
13BAND-HOSE
  01552-00083EXHAUST & EVAPO6710 -   1
14CONNECTOR-HOSE, MANIFOLD
  14875-A7700EXHAUST & EVAPO   -   2
15TUBE-MANIFOLD TO WATER PUMP
  14875-A7700EXHAUST & EVAPO   -   2
16TUBE-MANIFOLD TO WATER PUMP
  14054-147001.6L EXHAUST & EVAPO6710 -   1
17CONNECTOR-VACUUM TUBE
  14875-25605EXHAUST & EVAPO6710 -   1
18HOSE-VACUUM, INTAKE MANIFOLD
  02141-319W0 1.6L EXHAUST & EVAPO   -   1
19HOSE-VACUUM, INTAKE MANIFOLD
  02141-319W01.6L EXHAUST & EVAPO   -   1
20HOSE-VACUUM, INTAKE MANIFOLD
  02141-319W0 2L EXHAUST & EVAPO   -   1
21HOSE-VACUUM, INTAKE MANIFOLD
  02141-319W02L EXHAUST & EVAPO   -   1
22CLAMP-VACUUM TUBE
  14898-256002L EXHAUST & EVAPO6710 -   1
23CONNECTOR-3 WAY
  14888-256002L EXHAUST & EVAPO6710 -   1
24HOSE-INTAKE MANIFOLD TO CONNECTOR
  14864-147001.6L EXHAUST & EVAPO6710 -   1
25HOSE-INTAKE MANIFOLD TO CONNECTOR
  14865-256012L EXHAUST & EVAPO6710 -   1
26TUBE-MODULATOR TO CARBURETOR
  02141-319W0 2L EXHAUST & EVAPO   -   1
27TUBE-MODULATOR TO CARBURETOR
  02141-319W02L EXHAUST & EVAPO   -   1
28MODULATOR THERMAL
  14890-256012L EXHAUST & EVAPO6710 -   1
29TUBE-MODULATOR TO CONNECTOR
  14886-256002L EXHAUST & EVAPO6710 -   1
30CLAMP-TUBE
  16439-N21012L EXHAUST & EVAPO   -   3
31AIR-PUMP W/PULLEY
  14800-147011.6L EXHAUST   -   1
32AIR-PUMP W/PULLEY (ISO)
  14800-147011.6L EXHAUST & EVAPO   -   1
33AIR-PUMP W/PULLEY
  14800-256012L EXHAUST   -   1
34AIR-PUMP W/PULLEY (ISO)
  14800-256012L EXHAUST & EVAPO   -   1
35PULLEY-AIR PUMP
  14850-147001.6L EXHAUST & EVAPO6710 -   1
36PULLEY-AIR PUMP
  14850-256002L EXHAUST & EVAPO6710 -   1
37BRACKET-AIR PUMP
  14840-25602EXHAUST   -   1
38BRACKET-AIR PUMP
  14840-25602EXHAUST & EVAPO   -   1
39BAR-ADJUSTING AIR PUMP
  14841-25601EXHAUST & EVAPO6710 -   1
40SPACER-AIR PUMP
  14849-147001.6L EXHAUST & EVAPO6710 -   2
41SPACER-AIR PUMP
  14849-256002L EXHAUST & EVAPO6710 -   2
42BELT-AIR PUMP 735MM
  14853-25602 EXHAUST   -   1
43BELT-AIR PUMP 730 MM
  14853-256021.6L EXHAUST & EVAPO   -   1
44BELT-AIR PUMP 720 MM
  14853-256022L EXHAUST & EVAPO   -   1
45SUPPORT-AIR PUMP
  14843-25600EXHAUST & EVAPO6710 -   1
46HOSE-PUMP TO CHECK VALVE
  14861-147011.6L EXHAUST & EVAPO6710 -   1
47HOSE-PUMP TO CHECK VALVE
  14861-256022L EXHAUST & EVAPO   -   1
48CONNECTOR-3 WAY
  14874-25600EXHAUST & EVAPO6710 -   1
49HOSE-AIR INJECTION (3-WAY)
  14869-147011.6L EXHAUST6710 -   1
50HOSE-AIR INJECTION (3-WAY)
  14869-147011.6L EXHAUST & EVAPO6710 -   1
51HOSE-AIR INJECTION (3-WAY)
  14869-256012L EXHAUST6710 -   1
52HOSE-AIR INJECTION (3-WAY)
  14869-256012L EXHAUST & EVAPO6710 -   1
53CLAMP-HOSE, AIR PUMP
  14872-A77001.6L EXHAUST & EVAPO   -   1
54CLAMP-HOSE, AIR PUMP
  14872-A77001.6L EXHAUST & EVAPO   -   1
55CLAMP-HOSE, AIR PUMP
  14873-A77001.6L EXHAUST & EVAPO   -   1
56CLAMP-HOSE, AIR PUMP
  14872-256022L EXHAUST & EVAPO6710 -   1
57HOSE-CONNECTOR TO MANIFOLD
  14865-147001.6L EXHAUST & EVAPO6710 -   1
58HOSE-CONNECTOR TO MANIFOLD
  14864-256012L EXHAUST & EVAPO6710 -   1
59CLAMP HOSE
  14867-147011.6L EXHAUST & EVAPO6710 -   1
60CLAMP HOSE
  14867-256012L EXHAUST & EVAPO6710 -   1
61BOLT-ADJUSTING BAR
  11916-V5001 EXHAUST6710 -   1
62BOLT-ADJUSTING BAR
  11916-V5001EXHAUST & EVAPO6710 -   1
63BOLT-BRACKET
  14842-25600EXHAUST & EVAPO6710 -   1
64CONNECTOR-AIR PUMP
  14868-25600EXHAUST & EVAPO6710 -   1
65HOSE-AIR CLEANER TO PUMP
  14860-25601EXHAUST & EVAPO6710 -   1
66BAND-HOSE
  24216-10Y80EXHAUST & EVAPO6710 -   1
67BOLT-AIR PUMP FIX
  15267-147001.6L EXHAUST & EVAPO6710 -   2
68PIPE-AIR GALLARY
  14820-147001.6L EXHAUST & EVAPO6710 -   1
69PIPE-AIR GALLARY
  14820-256002L EXHAUST & EVAPO6710 -   1
70PIPE-AIR INJECTION
  14825-147001.6L EXHAUST & EVAPO6710 -   4
71PIPE-AIR INJECTION
  14825-256002L EXHAUST & EVAPO6710 -   1
72SEAT-INJECTION PIPE
  14826-25600EXHAUST & EVAPO6710 -   4
73AB VALVE
  14835-25601EXHAUST   -   1
74AB VALVE
  14835-25601EXHAUST & EVAPO   -   1
75ORIFICE-AB VALVE
  14889-25600EXHAUST & EVAPO6710 -   1
76HOSE-AB VALVE TO CONNECTOR
  14863-147001.6L EXHAUST & EVAPO6710 -   1
77NUT-CONNECTOR
  14829-25600EXHAUST & EVAPO6710 -   4
78CHECK VALVE
  14830-23001EXHAUST & EVAPO6710 -   1
79AIR CLEANER FOR SU
  14880-25600EXHAUST & EVAPO6710 -   1
80ASSY FLOW GUIDE VALVE
  14910-A5500EVAPO   -   1
81BRACKET-FLOW GUIDE VALVE
  14914-A5500EVAPO   -   1
82TUBE EVAPO CONTROL
  14911-A5500EVAPO   -   1
83TUBE EVAPO CONTROL
  A4911-A5500EVAPO   -   1
84TUBE EVAPO CONTROL
  14913-A7700EVAPO   -   1
85CLAMP-HOSE
  01555-00411EVAPO   -   4
86SCREW M6 X 1.0
  08360-61020EVAPO   -   1
87WASHER-SPRING
  08915-1361AEVAPO   -   1
88ARRESTER FLAME
  15296-123002L EXHAUST & EVAPO   -   1
TUBE-MODULATOR TO CONNECTOR CLAMP-TUBE CLAMP-TUBE HOSE-CONNECTOR TO MANIFOLD CONNECTOR-3 WAY CLAMP HOSE HOSE-AB VALVE TO CONNECTOR AB VALVE CONNECTOR-VACUUM TUBE HOSE-AIR INJECTION (3-WAY) AIR-PUMP W/PULLEY / AIR-PUMP W/PULLEY (ISO) PULLEY-AIR PUMP BRACKET-AIR PUMP BOLT-ADJUSTING BAR / BOLT-BRACKET HOSE-VACUUM, INTAKE MANIFOLD CLAMP-VACUUM TUBE MODULATOR THERMAL TUBE-MANIFOLD TO WATER PUMP PIPE-AIR GALLARY SEAT-INJECTION PIPE PIPE-AIR INJECTION ARRESTER FLAME CLAMP-TUBE CONNECTOR-3 WAY CLAMP HOSE HOSE-VACUUM, INTAKE MANIFOLD CONNECTOR-HOSE, MANIFOLD / TUBE-MANIFOLD TO WATER PUMP HOSE-INTAKE MANIFOLD TO CONNECTOR HOSE-INTAKE MANIFOLD TO CONNECTOR CHECK VALVE CLAMP-HOSE, AIR PUMP BAND-HOSE CONNECTOR-AIR PUMP CLAMP-HOSE, AIR PUMP HOSE-PUMP TO CHECK VALVE BAR-ADJUSTING AIR PUMP HOSE-AIR CLEANER TO PUMP AIR CLEANER FOR SU BELT-AIR PUMP 735MM / BELT-AIR PUMP 720 MM SPACER-AIR PUMP BOLT-AIR PUMP FIX PULLEY-AIR PUMP SUPPORT-AIR PUMP ASSY-BY PASS VALVE GASKET-BY PASS VALVE TUBE-BY PASS FRONT CLAMP-HOSE CLAMP-HOSE BOLT HEX M6 X 1.0 ASSY CLUTCH SWITCH (NOT ADOPTED) / ASSY CLUTCH SWITCH TUBE-BY PASS CENTER TUBE-BY PASS REAR CONNECTOR-3 WAY CLAMP-HOSE SPRING LOCK WASHER ASSY-NEUTRAL, 3RD & 4TH GEAR SWITCH BOLT-BRACKET ASSY FLOW GUIDE VALVE TUBE EVAPO CONTROL TUBE EVAPO CONTROL NUT-CONNECTOR AIR CLEANER FOR SU BRACKET-FLOW GUIDE VALVE TUBE EVAPO CONTROL TUBE EVAPO CONTROL
