Datsun Fairlady 1600/2000 Radiator (1965-1969)

To C/# SP311-05000, SPL311-25000, SR311-04000, SRL-08000

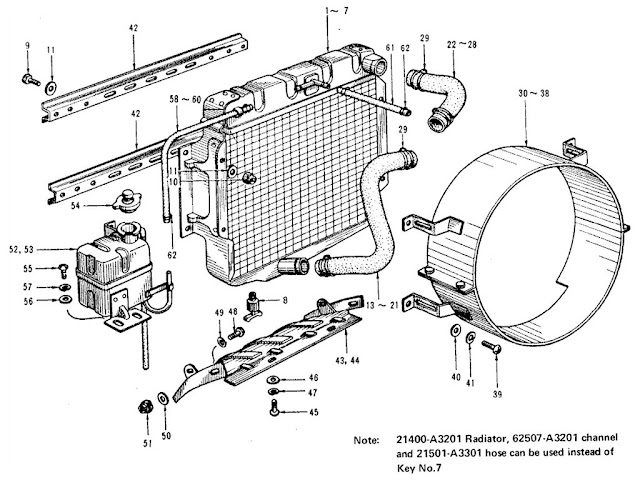

Datsun Fairlady Parts illustration no. 016-1 Radiator (1965-69) (To C/# SP311-05000, SPL311-25000, SR311-04000, SRL-08000)

016 -1  Radiator (1965-69) (To C/# SP311-05000, SPL311-25000, SR311-04000, SRL-08000)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-RADIATOR
  21400-146011.6L   - 67091
2ASSY-RADIATOR
  21400-146021.6L (EXC USA)6710 -   1
3ASSY-RADIATOR
  21400-A3200SPLU6710 -   1
4ASSY-RADIATOR
  21400-25501SR   -   1
5ASSY-RADIATOR
  21400-25600SRL   - 67091
6ASSY-RADIATOR
  21400-259002L (EXC USA)6710 -   1
7ASSY-RADIATOR
  21400-26000SRLU6710 -   1
8PLUG-DRAIN
  21211-12601ALL   -   1
9BOLT
  00114-52810ALL   -   4
10NUT
  00912-44510ALL   -   4
11WASHER-PLAIN
  00915-41500ALL   -   5
12HOSE-RADIATOR TO WATER PUMP
  B1503-14602SP   -   1
13HOSE-RADIATOR LOWER
  B1503-14602SP   - 67091
14HOSE-RADIATOR LOWER
  21503-14604SP6710 -   1
15HOSE-RADIATOR LOWER
  21503-25501SR   - 67091
16HOSE-RADIATOR LOWER
  21503-25901SR6710 -   1
17HOSE-RADIATOR TO WATER PUMP
  21503-14702SPL   -   1
18HOSE-RADIATOR LOWER
  21503-14702SPL   - 67091
19HOSE-RADIATOR LOWER
  B1503-14703SPL, SPLU6710 -   1
20HOSE-RADIATOR LOWER
  21503-25601SRL   - 67091
21HOSE-RADIATOR LOWER
  21503-26000SRL, SRLU6710 -   1
22HOSE-RADIATOR UPPER
  21501-14600SP   - 67091
23HOSE-RADIATOR UPPER
  21501-14603SP6710 -   1
24HOSE-RADIATOR TO CYLINDER HEAD
  21501-25503SR   -   1
25HOSE-RADIATOR UPPER
  21501-14700SPL   - 67091
26HOSE-RADIATOR UPPER
  21501-14702SPL6710 -   1
27HOSE-RADIATOR UPPER
  21501-14702SPLU6710 -   1
28HOSE-RADIATOR TO CYLINDER HEAD
  B1501-25601SRL   -   1
29CLAMP-HOSE
  00721-14410ALL   -   4
30SHROUD-RADIATOR
  21475-16300SP   -   1
31SHROUD-RADIATOR, UPPER
  21476-25500SR   - 67091
32SHROUD-RADIATOR, LOWER
  21477-25500SR   - 67091
33SHROUD-RADIATOR
  21475-25901SR6710 -   1
34SHROUD RADIATOR
  21475-14700SPL   - 67091
35SHROUD-RADIATOR
  21475-14701SPL6710 -   1
36SHROUD-RADIATOR, UPPER
  21477-25600SRL   - 67091
37SHROUD-RADIATOR, LOWER
  21477-25600SRL   - 67091
38SHROUD-RADIATOR, LOWER
  21475-A3300SRL, SRLU, SPLU6710 -   1
39SCREW-MACHINE
  00314-41610ALL   -   4
40WASHER-PLAIN
  08911-10637ALL   -   4
41WASHER-LOCK
  00915-11410ALL   -   4
42CHANNEL-UPPER & LOWER
  62507-A3201ALL   -   2
43CHANNEL-UPPER & LOWER
  62507-A3201ALL   -   2
44GUIDE-AIR
  21476-14601ALL   -   1
45GUIDE-AIR
  21476-14602ALL   -   1
46SCREW
  00314-41610ALL   -   2
47WASHER-PLAIN
  08911-10637ALL   -   2
48WASHER-LOCK
  00915-11410ALL   -   2
49BOLT
  00114-41810ALL   -   2
50WASHER-SPRING
  00915-11410ALL   -   2
51WASHER-SPRING
  08911-10637ALL   -   4
52NUT-HEX
  00911-11410ALL   -   2
53ASSY-TANK, RESERVOIR
  21510-14601ALL   - 67091
54ASSY-TANK, RESERVOIR
  21510-25900ALL6710 -   1
55ASSY-CAP, PRESSURE
  21430-16300ALL   -   1
56SCREW
  00511-41610ALL   -   2
57WASHER-PLAIN
  08911-10637ALL   -   2
58WASHER-LOCK
  00915-11410ALL   -   2
59HOSE-RADIATOR TO RESERVOIR TANK
  21515-14600SP, SRL   -   1
60HOSE-RADIATOR TO RESERVOIR TANK
  21515-25500SR   -   1
61HOSE-RADIATOR TO RESERVOIR TANK
  21515-14700SPL, SPLU   -   1
62HOSE-BREATHER, RADIATOR
  21516-16300ALL   -   1
63HOSE CLAMP
  01555-00191ALL   -   4
ASSY-RADIATOR / ASSY-RADIATOR PLUG-DRAIN NUT SHROUD-RADIATOR / SHROUD-RADIATOR, LOWER SCREW-MACHINE WASHER-PLAIN GUIDE-AIR WASHER-PLAIN WASHER-LOCK WASHER-SPRING WASHER-SPRING ASSY-CAP, PRESSURE SCREW WASHER-PLAIN HOSE-RADIATOR TO RESERVOIR TANK HOSE-BREATHER, RADIATOR CLAMP-HOSE BOLT WASHER-PLAIN WASHER-PLAIN HOSE-RADIATOR LOWER HOSE-RADIATOR UPPER / HOSE-RADIATOR TO CYLINDER HEAD CLAMP-HOSE WASHER-LOCK CHANNEL-UPPER & LOWER CHANNEL-UPPER & LOWER / GUIDE-AIR SCREW BOLT NUT-HEX / ASSY-TANK, RESERVOIR ASSY-TANK, RESERVOIR WASHER-LOCK / HOSE-RADIATOR TO RESERVOIR TANK HOSE-BREATHER, RADIATOR CHANNEL-UPPER & LOWER
