Datsun Fairlady 1600/2000 Radiator (1969-70)

From C/# SP311-05001, SPL311-25001, SR311-04001, SRL311-05001

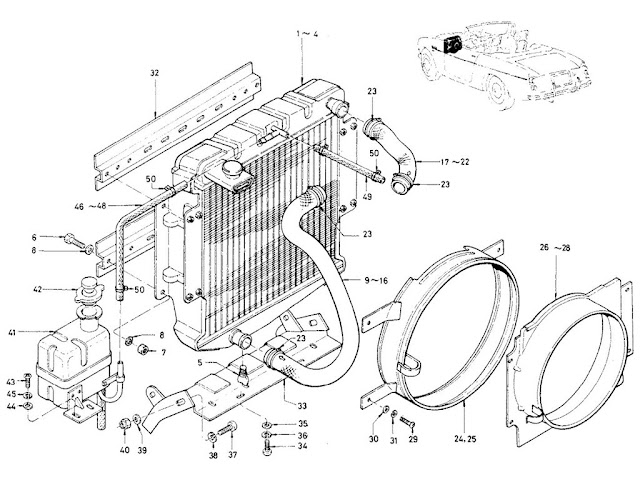

Datsun Fairlady Parts illustration no. 016A-1 Radiator (1969-70) (From C/# SP311-05001, SPL311-25001, SR311-04001, SRL311-05001)

016A -1  Radiator (1969-70) (From C/# SP311-05001, SPL311-25001, SR311-04001, SRL311-05001)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-RADIATOR
  21400-A32021.6L R DRIVE   -   1
2ASSY-RADIATOR
  21400-A32001.6L L DRIVE   -   1
3ASSY-RADIATOR
  21400-A32032L R DRIVE   -   1
4ASSY-RADIATOR
  21400-A32012L L DRIVE   -   1
5PLUG-DRAIN
  21211-12601ALL   -   1
6BOLT
  00114-52810ALL   -   4
7NUT
  00912-44510ALL   -   4
8WASHER-PLAIN
  00915-41500ALL   -   5
9HOSE RADIATOR LOWER
  21503-A32011.6L R DRIVE   -   1
10HOSE RADIATOR LOWER
  21503-A32011.6L R DRIVE   -   1
11HOSE RADIATOR LOWER
  B1503-A3303 1.6L L DRIVE   -   1
12HOSE-RADIATOR LOWER
  B1503-A33031.6L L DRIVE   -   1
13HOSE RADIATOR LOWER
  21503-A32042L R DRIVE   -   1
14HOSE RADIATOR LOWER
  21503-A32042L R DRIVE   -   1
15HOSE RADIATOR LOWER
  B1503-A3302 2L L DRIVE   -   1
16HOSE RADIATOR LOWER
  B1503-A33022L L DRIVE   -   1
17HOSE RADIATOR UPPER
  21501-A32011.6L R DRIVE   -   1
18HOSE RADIATOR UPPER
  21501-A32011.6L R DRIVE   -   1
19HOSE RADIATOR UPPER
  B1501-A3303 1.6L L DRIVE   -   1
20HOSE RADIATOR UPPER
  B1501-A33031.6L L DRIVE   -   1
21HOSE RADIATOR UPPER
  21501-A32042L R DRIVE   -   1
22HOSE RADIATOR UPPER
  21501-A33022L L DRIVE   -   1
23CLAMP-HOSE
  00721-14410ALL   -   4
24SHROUD-RADIATOR
  21475-146001.6L R DRIVE   -   1
25SHROUD-RADIATOR
  21475-147011.6L L DRIVE (EXC USA)   -   1
26SHROUD-RADIATOR
  21475-A33011.6L USA   -   1
27SHROUD-RADIATOR
  21475-259012L R DRIVE   -   1
28SHROUD-RADIATOR
  21475-A33002L L DRIVE   -   1
29SCREW-MACHINE
  00314-41610ALL   -   4
30WASHER-PLAIN
  08911-10637ALL   -   4
31WASHER-LOCK
  00915-11410ALL   -   4
32CHANNEL-UPPER & LOWER
  62507-A3201ALL   -   2
33GUIDE-AIR
  21476-14602ALL   -   1
34SCREW-MACHINE
  00314-41610ALL   -   2
35WASHER-PLAIN
  08911-10637ALL   -   2
36WASHER-LOCK
  00915-11410ALL   -   2
37BOLT
  00314-41610ALL   -   2
38WASHER-LOCK
  00915-11410ALL   -   2
39WASHER-PLAIN
  08911-10637ALL   -   4
40NUT-HEX
  00911-11410ALL   -   2
41ASSY-TANK, RESERVOIR
  21510-25900ALL   -   1
42ASSY-CAP, RESERVOIR
  21430-16300ALL   -   1
43SCREW
  00511-41610ALL   -   2
44WASHER-PLAIN
  08911-10637ALL   -   2
45WASHER-LOCK
  00915-11410ALL   -   2
46HOSE-RADIATOR TO RESERVOIR TANK
  21515-146001.6L R DRIVE   -   1
47HOSE-RADIATOR TO RESERVOIR TANK
  21515-A32002L R DRIVE   -   1
48HOSE-RADIATOR TO RESERVOIR TANK
  21515-14700L DRIVE   -   1
49HOSE-BREATHER RADIATOR
  21516-16300ALL   -   1
50CLAMP-HOSE
  01555-00191ALL   -   4
CLAMP-HOSE CLAMP-HOSE CLAMP-HOSE HOSE-RADIATOR TO RESERVOIR TANK CLAMP-HOSE CLAMP-HOSE HOSE RADIATOR LOWER BOLT ASSY-CAP, RESERVOIR ASSY-TANK, RESERVOIR WASHER-PLAIN NUT GUIDE-AIR SHROUD-RADIATOR WASHER-PLAIN WASHER-LOCK BOLT WASHER-PLAIN WASHER-LOCK ASSY-RADIATOR CHANNEL-UPPER & LOWER HOSE-BREATHER RADIATOR HOSE RADIATOR UPPER SHROUD-RADIATOR WASHER-PLAIN CLAMP-HOSE PLUG-DRAIN CLAMP-HOSE SCREW-MACHINE WASHER-PLAIN WASHER-LOCK SCREW-MACHINE WASHER-LOCK WASHER-PLAIN NUT-HEX SCREW
