Datsun Fairlady 1600 Transmission Case (4-Speed)

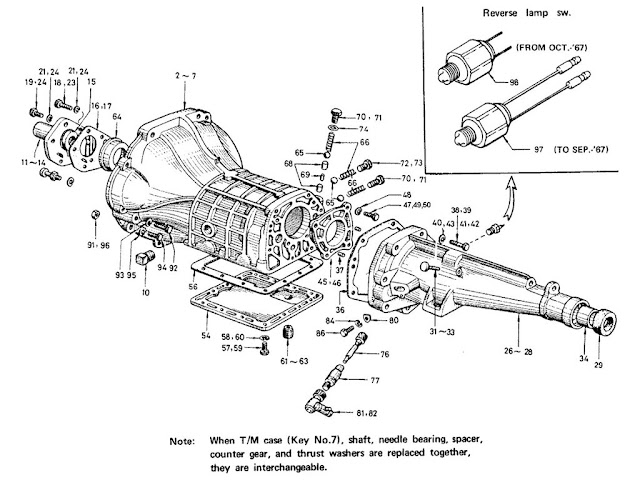

Datsun Fairlady Parts illustration no. 031-1 Transmission Case 1600 (R16)

031 -1  Transmission Case 1600 (R16)
KeyPart No.ModelApplied DateQty
FromTo
1CASE-TRANSMISSION
  32101-14610 1.6L   -   1
2CASE-TRANSMISSION
  32101-146101.6L   -   1
3CASE-TRANSMISSION
  32101-146101.6L   -   1
4CASE-TRANSMISSION
  32101-146101.6L6703 -   1
5CASE-TRANSMISSION
  32101-146101.6L6703 -   1
6CASE-TRANSMISSION
  32101-A32101.6L   -   1
  32101-146101.6L6710 -   1
7CASE-TRANSMISSION
  32101-A32101.6L   -   1
8PLUG-TAPER THREAD
  38357-E4600 1.6L   -   1
9PLUG-TAPER THREAD
  38357-E46001.6L   -   1
10PLUG-TAPER THREAD
  38357-E46001.6L   -   1
11COVER-FRONT TRANSMISSION
  32110-146011.6L   - 67091
12COVER-FRONT TRANSMISSION
  32110-146011.6L   - 67091
13COVER-FRONT TRANSMISSION
  32111-220001.6L6710 -   1
14COVER-FRONT TRANSMISSION
  32110-A11001.6L   -   1
15SEAL-OIL, FRONT COVER
  32113-N2101 1.6L   -   1
16GASKET-FRONT COVER
  32112-148101.6L   -   1
17GASKET-FRONT COVER
  32112-A09001.6L   -   1
18BOLT TO FIX FRONT COVER
  00114-535101.6L   -   2
19BOLT TO FIX FRONT COVER
  00114-522101.6L   -   3
20WASHER-SPRING TO FIX FRONT COVER
  00915-115101.6L   -   5
21WASHER-SPRING TO FIX FRONT COVER
  00915-115101.6L   -   5
22BOLT HEX TO FIX FRONT COVER (METRIC)
  08110-8351A1.6L   -   3
23BOLT HEX TO FIX FRONT COVER (METRIC)
  32055-476001.6L   -   2
24WASHER SPRING TO FIX FRONT COVER (METRIC)
  08915-1381A1.6L   -   5
25ASSY-EXTENSION, REAR
  32130-146011.6L   -   1
26EXTENSION REAR
  32130-146011.6L6703 - 67091
27EXTENSION-REAR
  32130-A74001.6L (EXC EMISSION CONTROL)6710 -   1
28EXTENSION-REAR
  32130-A77011.6L EMISSION CONTROL   -   1
29SEAL-OIL, REAR EXTENSION
  32136-E01001.6L   -   1
30SEAL-OIL, REAR EXTENSION
  32136-E01001.6L   -   1
31ASSY-BREATHER
  38322-146001.6L   -   1
32ASSY-BREATHER
  38322-205001.6L6703 -   1
33ASSY-BREATHER
  38322-N01001.6L   -   1

ASSY-BREATHER (METRIC)
  38322-N01001.6L   -   1
34BUSHNG REAR EXTENSION
  32132-B30001.6L   -   1
35GASKET-REAR EXTENSION
  32134-148101.6L   -   1
36GASKET-REAR EXTENSION
  32134-148101.6L   -   1
37PIN-DOWEL REAR EXTENSION
  32133-146001.6L   -   2
38BOLT TO FIX REAR EXTENSION
  00114-530101.6L   -   4
39BOLT TO FIX REAR EXTENSION (INCH)
  00114-545101.6L   -   4
40WASHER TO FIX REAR EXTENSION (INCH)
  00915-115101.6L   -   8
41BOLT HEX TO FIX REAR EXTENSION (METRIC)
  08120-8321A1.6L   -   4
42BOLT HEX TO FIX REAR EXTENSION (METRIC)
  08120-845101.6L   -   4
43WASHER SPRING TO FIX REAR EXTENSION (METRIC)
  08915-1381A1.6L   -   8
44RETAINER-BEARING, MAIN SHAFT
  32138-732001.6L   -   1
45RETAINER-BEARING, MAIN SHAFT
  32138-732001.6L   -   1
46RETAINER-BEARING, MAIN SHAFT
  32138-W10001.6L   -   1
47BOLT TO FIX BEARING RETAINER (INCH)
  00114-528101.6L   -   4
48WASHER-SPRING TO FIX BEARING RETAINER (INCH)
  00915-115101.6L   -   4
49BOLT TO FIX BEARING RETAINER (METRIC)
  32055-476001.6L   -   4
50BOLT TO FIX BEARING RETAINER (METRIC)
  32055-476001.6L   -   4
51WASHER TO FIX BEARING RETAINER
  08915-1381A1.6L   -   4
52COVER-BOTTOM, TRANSMISSION CASE W/DRAIN PLUG
  32161-U84251.6L   -   1
53COVER-BOTTOM, TRANSMISSION CASE W/DRAIN PLUG
  32161-U8425 1.6L   -   1
54COVER-BOTTOM, TRANSMISSION CASE W/DRAIN PLUG
  32161-U84251.6L   -   1
55GASKET-BOTTOM COVER
  32162-148101.6L   -   1
56GASKET-BOTTOM COVER
  32162-148101.6L   -   1
57BOLT TO FIX BOTTOM COVER (INCH)
  00114-528101.6L   -   14
58WASHER-SPRING TO FIX BOTTOM COVER (INCH)
  00915-11510     -   14
59BOLT TO FIX BOTTOM COVER (METRIC)
  08110-816101.6L   -   14
60WASHER-SPRING TO FIX BOTTOM COVER (METRIC)
  08915-1381A1.6L   -   14
61ASSY-PLUG, DRAIN
  32103-U840A1.6L   -   1
62ASSY-PLUG, DRAIN
  11128-U80001.6L   -   1
63WASHER DRAIN
  11026-610001.6L   -   1
64RETAINER-BEARING, MAIN DRIVE
  32208-146001.6L   -   1
65BALLCHECKING
  32829-267601.6L   -   3
66SPRING-CHECKING BALL
  32815-369001.6L   -   3
67SPRING-CHECKING BALL
  32815-369001.6L   -   3
68PLUNGER-INTER LOCK
  32815-369001.6L   -   2
  32832-146001.6L   -   2
69PIN-INTER LOCK
  32833-146001.6L   -   1
70PLUG-CHECKING BALL
  32834-146001.6L   -   2
71PLUG-CHECKING BALL (METRIC)
  32834-211001.6L   -   2
72PLUG-CHECKING BALL
  32835-146001.6L   -   1
73PLUG-CHECKING BALL (METRIC)
  32835-780001.6L   -   1
74WASHER-PLAIN
  32836-146001.6L   -   3
75ASSY-PINION, SPEEDOMETER (16T)
  32703-220001.6L   -   1
76PINION-SPEEDOMETER 16T NYLON
  32703-220001.6L   -   1
77ASSY-SLEEVE, SPEEDOMETER PINION
  32707-146001.6L   -   1
78PIN RETAINING
  32873-146001.6L   -   1
79PIN-RETAINING
  32873-146001.6L   -   1
80PLATE-LOCK, SPEEDOMETER SLEEVE
  32718-146011.6L   -   1
81ADAPTER-SPEEDOMETER PINION
  32730-285001.6L   -   1
82ADAPTER-SPEEDOMETER PINION (W/CURVED GREESE NIPPLE)
  32730-285001.6L   -   1
83WASHER-SPRING
  00915-114101.6L   -   1
84WASHER-SPRING
  00915-114101.6L   -   1
85BOLT
  08110-6121A 1.6L   -   1
86BOLT
  08110-6121A1.6L   -   1
87BOLT TO FIX TRANSMISSION (INCH)
  00131-660101.6L   -   4
88WASHER-SPRING TO FIX TRANSMISSION (INCH)
  00915-216101.6L   -   4
89BOLT TO FIX TRANSMISSION (INCH)
  00111-525101.6L   -   2
90WASHER-SPRING TO FIX TRANSMISSION (INCH)
  00915-115101.6L   -   2
91NUT TO FIX TRANSMISSION (INCH)
  00911-115101.6L   -   2
92BOLT TO FIX TRANSMISSION (METRIC)
  08171-0601A1.6L   -   4
93WASHER-SPRING TO FIX TRANSMISSION (METRIC)
  08915-2401A1.6L   -   4
94BOLT M8 X 1.25 TO FIX TRANSMISSION (METRIC)
  32055-476001.6L   -   2
95WASHER-SPRING TO FIX TRANSMISSION (METRIC)
  08915-1381A1.6L   -   2
96NUT M8 X 1.25 TO FIX TRANSMISSION (METRIC)
  08911-1082A1.6L   -   2
97COMP-SWITCH, REVERSE LAMP
  B5310-146001.6L   - 67091
98COMP-SWITCH, REVERSE LAMP
  32005-K12141.6L   -   1
