Datsun Fairlady 1600/2000 Transmission & Gasket Kit

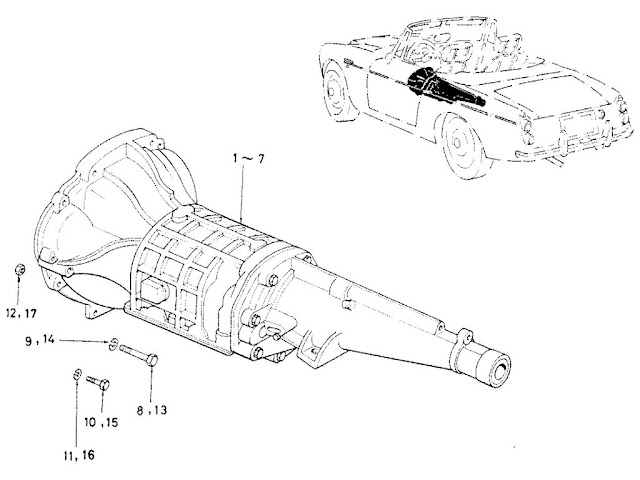

Datsun Fairlady Parts illustration no. 030-1 Transmission

030 -1  Transmission
KeyPart No.ModelApplied DateQty
FromTo
1TRANSMISSION 16/5 FOR FINAL RATIO 3.889
  32010-146531.6L   - 67091
2TRANSMISSION 16/5 FOR FINAL RATIO 3.889
  32010-A33501.6L SERVO (EXC EMISSION CONTROL)6710 -   1
3TRANSMISSION 16/5 FOR FINAL RATIO 3.889
  32010-A33501.6L WARNER (EXC EMISSION CONTROL)   -   1
4ASSY-TRANSMISSION 16/5
  32010-A77521.6L SERVO EMISSION CONTROL   -   1
5ASSY-TRANSMISSION 16/5
  32010-A77501.6L WARNER EMISSION CONTROL   -   1
6ASSY-TRANSMISSION, 5-SPEED (18/6) FOR FINAL RATIO 3.700
  32010-255512L SERVO   -   1
7ASSY-TRANSMISSION, 5-SPEED (18/6) FOR FINAL RATIO 3.700
  32010-A25502L WARNER   -   1
8BOLT TRANSMISSION TO ENGINE
  00131-660101.6L   -   4
9WASHER-SPRING TRANSMISSION TO ENGINE
  00915-216101.6L   -   4
10BOLT TRANSMISSION CASE TO ENGINE PLATE
  00111-525101.6L   -   2
11WASHER-SPRING TRANSMISSION CASE TO ENGINE PLATE
  00915-115101.6L   -   2
12NUT TRANSMISSION CASE TO ENGINE PLATE
  00911-115101.6L   -   2
13BOLT TRANSMISSION TO ENGINE
  08171-0651A2L   -   4
14WASHER-SPRING TRANSMISSION TO ENGINE
  08915-2401A2L   -   4
15BOLT M6 X 1.25 TRANSMISSION CASE TO ENGINE PLATE
  93380-02T602L   -   2
16WASHER-SPRING TRANSMISSION CASE TO ENGINE PLATE
  08915-1381A2L   -   2
17NUT M8 X 1.25 TRANSMISSION CASE TO ENGINE PLATE
  08911-1082A2L   -   2

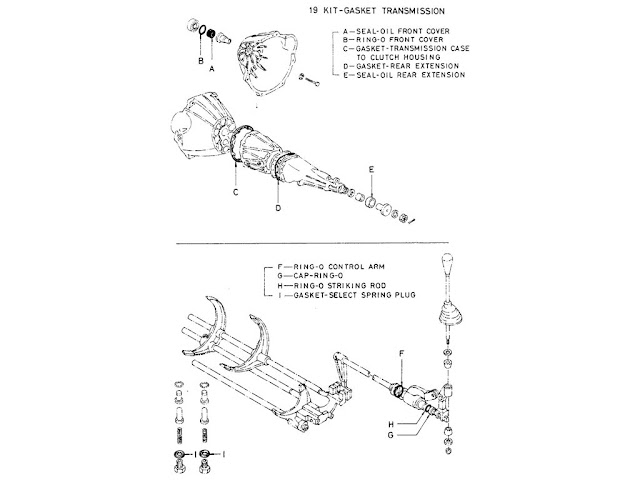

18KIT-GASKET TRANSMISSION
  32010-220261.6L   -   1
19KIT-GASKET TRANSMISSION
  32010-255262L   -   1
20KIT-GASKET TRANSMISSION
  32010-255262L   -   1
TRANSMISSION 16/5 FOR FINAL RATIO 3.889 / ASSY-TRANSMISSION, 5-SPEED (18/6) FOR FINAL RATIO 3.700 BOLT TRANSMISSION TO ENGINE BOLT TRANSMISSION TO ENGINE WASHER-SPRING TRANSMISSION TO ENGINE BOLT TRANSMISSION CASE TO ENGINE PLATE BOLT M6 X 1.25 TRANSMISSION CASE TO ENGINE PLATE NUT TRANSMISSION CASE TO ENGINE PLATE NUT M8 X 1.25 TRANSMISSION CASE TO ENGINE PLATE WASHER-SPRING TRANSMISSION TO ENGINE WASHER-SPRING TRANSMISSION CASE TO ENGINE PLATE WASHER-SPRING TRANSMISSION CASE TO ENGINE PLATE KIT-GASKET TRANSMISSION
