Datsun Fairlady 1600 Engine (R16) Competition/Racing Parts

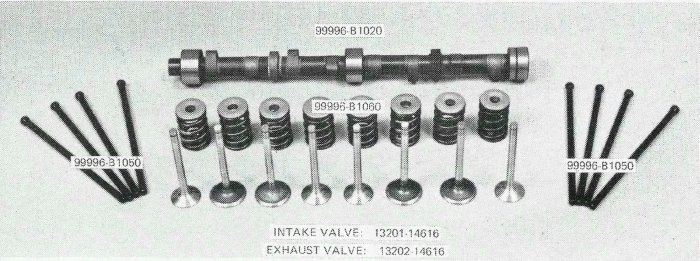

Datsun Roadster R16 Valve Train Competition Components
R16 Valve Train Components

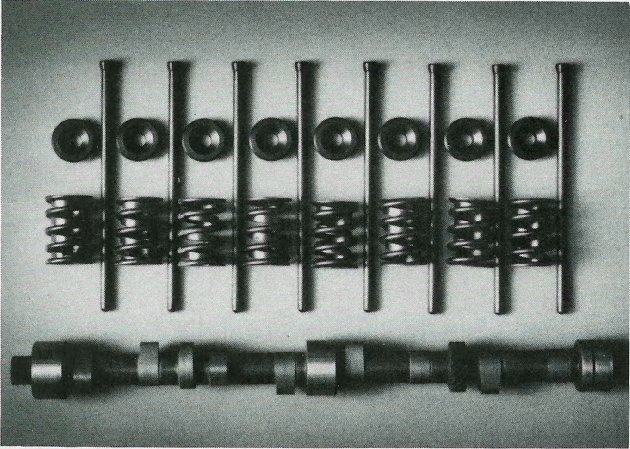

 R16 Cam Kit
R16 Cam Kit

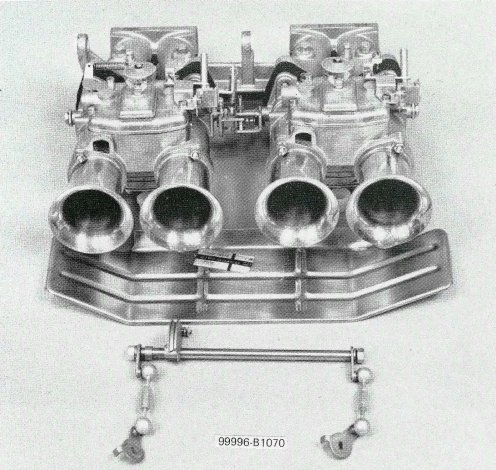

R16 Solex Conversion Kit
R16 Solex Conversion Kit

Aluminum Oil Pan
Aluminum Oil Pan



KeyPart No.ModelApplied DateQty
FromTo
1FULL RACE CAMSHAFT, .480 INCH LIFT, 306 DEG. DURATION. REQUIRES USE OF LONGER PUSHRODS AND RACING VALVE SPRING KIT.
  99996-B10201.6L   -   1
2ALUMINUM PUSHRODS. SET OF EIGHT. ONLY FOR USE WITH FULL RACE CAM.
  99996-B10501.6L   -   1
3VALVE SPRING KIT (SPRINGS, ALUMINUM RETAINERS, VALVE KEEPERS)
  99996-B10611.6L   -   1
4INTAKE VALVE (1.69 INCH)
  13201-146161.6L   -   4
5INTAKE VALVE SEAT (OVERSIZE)
  11098-146011.6L   -   4
6EXHAUST VALVE (1.38 INCH)
  13202-146161.6L   -   4
7EXHAUST VALVE SEAT (OVERSIZE)
  11099-146011.6L   -   4
8MANIFOLD GASKET
  14035-146151.6L   -   1
9DATSUN VENOLIA PISTON, 0.40 INCH OVERSIZE, APPROX. 12:1 COMPRESSION RATIO.
  99996-B10351.6L   -   4
10DATSUN VENOLIA PISTON RING SET
  99996-B10411.6L   -   1
11ALUMINUM FLYWHEEL, 8 LBS.
  99996-B10101.6L   -   1
12ROD BEARINGS, F77, APPROX. .001 INCH THINNER FOR INCREASED OIL CLEARENCE
  12111-25510ALL   -   8
13MAIN BEARING SET. APPROX. .001 INCH THINNER FOR INCREASED OIL CLEARANCE
  12207-736001.6L 3-MAIN ENGINES   - 67021
14MAIN BEARING SET. APPROX. .001 INCH THINNER FOR INCREASED OIL CLEARANCE
  99996-C1090ALL 5-MAIN ENGINES6703 -   1
15ROLLER BEARING PILOT BUSHING
  32202-09500ALL   -   1
16R16 STROKER CRANK / H20 CRANK
  12200-E07001.6L6703 -   1
17RACING OIL PUMP
  15010-122101.6L   -   1
18OIL COOLER KIT (INCLUDES COOLER LINES, FITTINGS AND OIL FILTER BRACKET)
  21300-25510ALL   -   1
19ADAPTER FOR INSTALLING OIL TEMPERATURE GAUGE SENSOR INTO OIL PAN DRAIN PLUG HOLE
  11128-H2375ALL   -   1
20CRANK PULLEY
  12303-146151.6L   -   1
21FAN PULLEY
  21051-146151.6L   -   1
22ALTERNATOR PULLEY
  23150-146151.6L   -   1
23ALUMINUM OIL PAN, 7.5 QTS CAPACITY
  11110-25500ALL   -   1
24OIL PAN GASKET (SPECIAL)
  99996-C1135ALL   -   1
25OIL PAN INSERT
  99996-C1133ALL   -   1
26COMPLETE R16 SOLEX CONVERSION KIT. PACKAGE CONTAINS ALL PIECES NECESSARY TO INSTALL THE 44MM SOLEX CARBURETORS ON THE R16 ENGINE. INDIVIDUAL COMPONENTS ARE LISTED BELOW
  99996-B10701.6L   -   1
2744 MM SOLEX CARBURETOR SET, SET OF TWO
  A6010-25505ALL   -   1
28MAIN JET NO. 130
  16033-25926ALL   -   4
29MAIN JET NO. 160
  16033-25528ALL   -   4
30MAIN JET NO. 180
  16033-25520ALL   -   4
31MAIN JET NO. 190
  16033-25521ALL   -   4
32MAIN JET NO. 200
  16033-25522ALL   -   4
33MAIN JET NO. 210
  16033-25523ALL   -   4
34MAIN JET NO. 220
  16033-25524ALL   -   4
35MAIN JET NO. 230
  16033-25525ALL   -   4
36MAIN JET NO. 240
  16033-25526ALL   -   4
37MAIN JET NO. 250
  16033-25527ALL   -   4
38AIR JET NO. 190
  16036-25521ALL   -   4
39AIR JET NO. 210
  16036-25522ALL   -   4
40AIR JET NO. 230
  16036-25523ALL   -   4
41AIR JET NO. 250
  16036-25520ALL   -   4
42PILOT JET NO. 52.5
  16189-25520ALL   -   4
43PILOT JET NO. 55
  16189-25521ALL   -   4
44PILOT JET NO. 60
  16189-25522ALL   -   4
45GASKET, INSULATOR
  16175-255011.6L   -   4
46INSULATOR
  16174-201001.6L   -   4
47GASKET, INSULATOR
  16176-201011.6L   -   4
48INTAKE MANIFOLD SOLEX
  14002-146151.6L   -   1
49GASKET, MANIFOLD
  14035-146151.6L   -   1
50HEAT SHIELD
  14330-122101.6L   -   1
51LINKAGE ASSEMBLY, THROTTLE
  16360-122101.6L   -   1
52ELECTRIC FUEL PUMP
  17010-A7600ALL   -   1
53BLANKING PLATE FOR MECHANICAL FUEL PUMP
  16420-E0100ALL   -   1
54REPLACEMENT FILTER FOR ELECTRIC FUEL PUMP
  16404-29900ALL   -   1
55SOLEX AIR CLEANER ASSEMBLY
  16500-25501ALL   -   1
56REPLACEMENT ELEMENT FOR AIR FILTER 16500-25501
  16546-25500ALL   -   1
57HIGH TENSION CONTACT SET (WITH PLATINIUM POINTS)
  22140-14410ALL   -   1
