Datsun Fairlady 2000 Engine (U20) Competition/Racing Parts

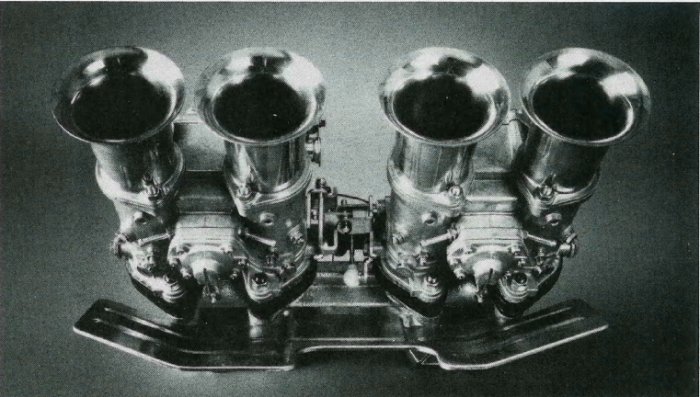

U20 Solex Conversion Kit
U20 Solex Conversion Kit

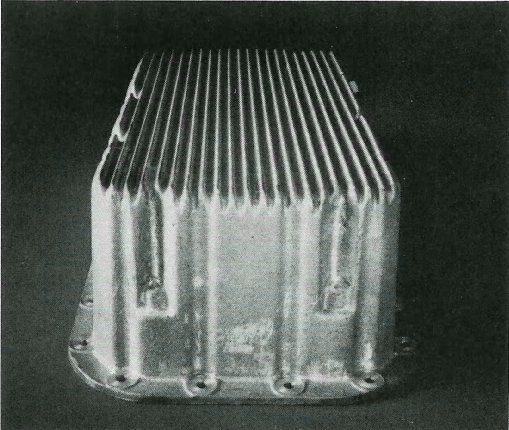

Aluminum Oil Pan
Aluminum Oil Pan
KeyPart No.ModelApplied DateQty
FromTo
1CAMSHAFT FOR SOLEX CARBURETORS. .449 INCH LIFT/280 DEGREE DURATION
  13001-255002L   -   1
2VALVE SPRING KIT (SPRINGS, ALUMINUM RETAINERS, VALVE KEEPERS)
  99996-B1061ALL   -   1
3FORGED PISTON W/PIN AND SPIROLOX, .040 INCH OVERSIZE, 3.473 INCH BORE SIZE, APPROX. 11.5:1 COMPRESSION RATIO, REQUIRES CYLINDER HEAD MODIFICATION. PISTON TO CYLINDER WALL CLEARANCE SHOULD BE APPROX. .006 INCH
  99996-C10302L   -   4
4PISTON RING SET FOR FORGED PISTONS ONLY
  99996-B10412L   -   1
5EARLY TYPE "SILVER" HEAD GASKET
  11044-255012L   -   1
6RACING OIL PUMP
  15010-255152L   -   1
7ROD BEARING, F77, APPROX .001 INCH THINNER FOR INCREASED OIL CLEARENCE
  12111-25510ALL   -   8
8MAIN BEARING SET (U20 & R16 5-MAIN ENGINES)
  99996-C1090ALL   -   1
9ROLLER BEARING PILOT BUSHING
  32202-09500ALL   -   1
10U20 HEAD BOLT KIT 10 PCS. (5 LONG, 5 SHORT) (STRONGER THAN OEM)
  99996-U20HB2L   -   1
11FAN PULLEY
  21051-255102L   -   1
12ALTERNATOR PULLEY
  23150-255102L   -   1
13ALUMINUM FLYWHEEL, 8 LBS.
  99996-C10102L   -   1
14ALUMINUM FLYWHEEL, 11 LBS.
  99996-C10122L   -   1
1544 MM SOLEX CARBURETORS, SET OF TWO
  16010-25505ALL   -   1
16MAIN JET NO. 130
  16033-25926ALL   -   4
17MAIN JET NO. 160
  16033-25528ALL   -   4
18MAIN JET NO. 180
  16033-25520ALL   -   4
19MAIN JET NO. 190
  16033-25521ALL   -   4
20MAIN JET NO. 200
  16033-25522ALL   -   4
21MAIN JET NO. 210
  16033-25523ALL   -   4
22MAIN JET NO. 220
  16033-25524ALL   -   4
23MAIN JET NO. 230
  16033-25525ALL   -   4
24MAIN JET NO. 240
  16033-25526ALL   -   4
25MAIN JET NO. 250
  16033-25527ALL   -   4
26AIR JET NO. 190
  16036-25521ALL   -   4
27AIR JET NO. 210
  16036-25522ALL   -   4
28AIR JET NO. 230
  16036-25523ALL   -   4
29AIR JET NO. 250
  16036-25520ALL   -   4
30PILOT JET NO. 52.5
  16189-25520ALL   -   4
31PILOT JET NO. 55
  16189-25521ALL   -   4
32PILOT JET NO. 60
  16189-25522ALL   -   4
33ALUMINUM OIL PAN, 7.5 QTS CAPACITY
  11110-25500ALL   -   1
34OIL PAN GASKET (SPECIAL)
  99996-C1135ALL   -   1
35OIL PAN INSERT
  99996-C1133ALL   -   1
36OIL COOLER KIT (INCLUDES COOLER, LINES, FITTINGS, AND OIL FILTER BRACKET)
  21300-25510ALL   -   1
37ADAPTER FOR INSTALLING OIL TEMPERATURE GAUGE SENSOR INTO OIL PAN DRAIN PLUG HOLE
  11128-H2375ALL   -   1
38SOLEX CONVERSION KIT. A COMPLETELY ASSEMBLED PACKAGE READY TO BOLT ONTO YOUR ENGINE. THE ONLY OTHER ITEM NEEDED TO CONVERT YOUR SU CARBURETED VERSION TO 150 HP SOLEX MODEL IS SOLEX CAMSHAFT (PART NO. 13001-25500)
  99996-C10402L   -   1
39ELECTRIC FUEL PUMP
  17010-A7600ALL   -   1
40BLANKING PLATE FOR MECHANICAL FUEL PUMP
  16420-E0100ALL   -   1
41REPLACEMENT FILTER FOR ELECTRIC FUEL PUMP
  16404-29900ALL   -   1
42SOLEX AIR CLEANER ASSEMBLY
  16500-25501ALL   -   1
43REPLACEMENT ELEMENT FOR AIR FILTER 16500-25501
  16546-25500ALL   -   1
44HIGH TENSION CONTACT SET (WITH PLATINIUM POINTS)
  22140-14410ALL   -   1
