Datsun Fairlady 1600/2000 Steering Gear (1969-1970) (R.B Type)

From C/# SPL311-25001, SRL311-09001, SP311-05001, SR311-04001.

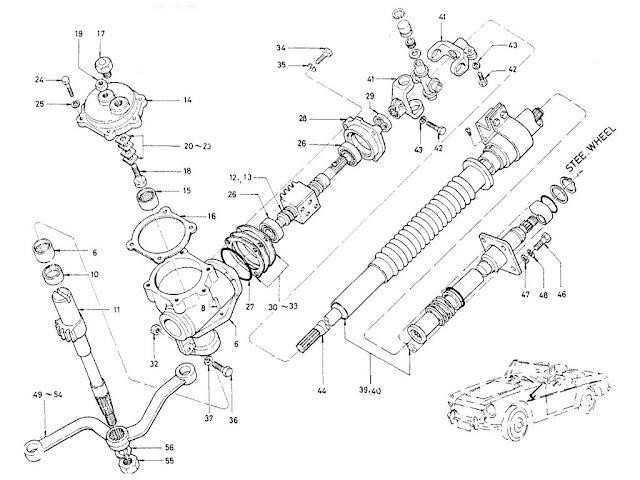

Datsun Fairlady Parts illustration no. 049B-1 Steering Gear (1969-70) (R.B Type)

049B -1  Steering Gear (1969-70) (R.B Type)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-STEERING GEAR
  48010-A3250R DRIVE6812 -   1
2ASSY-STEERING GEAR
  48010-A3350L DRIVE6812 -   1
3COMP-HOUSING STEERING GEAR
  48011-A3250R DRIVE6812 -   1
4COMP-HOUSING STEERING GEAR (INC. 48201-A3200)
  48011-A3250R DRIVE6812 -   1
5COMP-HOUSING STEERING GEAR
  48011-A3350L DRIVE6812 -   1
6COMP-HOUSING STEERING GEAR (INC. 48201-A3200)
  48011-A3350L DRIVE6812 -   1
7COMP-NEEDLE BEARING
  48127-71201ALL6812 -   1
8LOCATION PIN-STEERING GEAR HOUSING
  48206-26760ALL6812 -   1
9PLUG-EXPANSION
  00933-33000ALL6812 -   1
10SEAL-OIL SECTOR SHAFT
  48137-36700ALL6812 -   1
11SHAFT-SECTOR STEERING
  48103-A3200ALL6812 -   1
12WORM-STEERING
  48150-23100R DRIVE6812 -   1
13WORM-STEERING
  48150-26100L DRIVE6812 -   1
14COVER SECTOR SHAFT
  48201-A3200ALL6812 -   1
15BEARING-NEEDLE
  48127-71201ALL6812 -   1
16GASKET-SECTOR SHAFT COVER
  48204-A3200ALL6812 -   1
17PLUG-FILLER
  48060-23100ALL6812 -   1
18SCREW-SECTOR SHAFT ADJUST
  48135-A3200ALL6812 -   1
19NUT-LOCK ADJUST SCREW
  08911-60800ALL6812 -   1
20SHIM-SECTOR SHAFT ADJUST
  48129-A3200ALL6812 -   1
21SHIM-SECTOR SHAFT ADJUST
  48130-A3200ALL6812 -   1
22SHIM-SECTOR SHAFT ADJUST
  48131-A3200ALL6812 -   1
23SHIM-SECTOR SHAFT ADJUST
  48132-A3200ALL6812 -   1
24BOLT-HEX M8X1, 25X25
  08120-8251EALL6812 -   4
25WASHER-LOCK SPRING
  08915-1381AALL6812 -   4
26ASSY-BEARING WORM
  48190-21000ALL6812 -   2
27RING-O
  48035-71200ALL6812 -   1
28COMP-REAR COVER HOUSING
  48250-A9000ALL6812 -   1
29SEAL-OIL WORM
  48029-04100ALL6812 -   1
30SHIM-WORM BEARING (T=0.762)
  48029-71200ALL6812 -   1
31SHIM-WORM BEARING (T=0.294)
  48030-71200ALL6812 -   2
32SHIM-WORM BEARING (T=0.127)
  48031-71200ALL6812 -   1
33SHIM-WORM BEARING (T=0.050)
  48032-71200ALL6812 -   1
34BOLT-HEX M8X1, 25X20
  08120-8201EALL6812 -   3
35WASHER-LOCK SPRING
  08915-1381AALL6812 -   3
36BOLT 3/8-24X30
  00124-63010ALL6812 -   3
37NUT 3/8-24 SELF LOCK
  00912-64610ALL6812 -   1
38WASHER-LOCK SPRING
  00915-11610ALL6812 -   2
39ASSY-SHAFT & TUBE STEERING
  48805-25951R DRIVE6812 -   1
40ASSY-SHAFT & TUBE STEERING
  48805-26051L DRIVE6812 -   1
41ASSY-STEERING JOINT
  48080-A3200ALL6812 -   1
42BOLT-HEX M10X1, 25X20
  08134-02810ALL6812 -   2
43WASHER-LOCK SPRING
  08915-2401AALL6812 -   2
44SHAFT-STEERING COLUMN LOWER
  48833-A3200ALL6812 -   1
45BLOCK-RUBBER
  48057-10400ALL6812 -   1
46BOLT HEX 1/4-20 UNC X 16
  00111-41610ALL6812 -   4
47WASHER-PLAIN
  00915-51410ALL6812 -   4
48WASHER SPRING LOCK
  00915-11410ALL6812 -   4
49ARM-STEERING GEAR
  48501-A3250R DRIVE6812 -   1
50ARM-STEERING GEAR
  48501-A3251R DRIVE6812 -   1
51ARM-STEERING GEAR
  48501-A3252R DRIVE6812 -   1
52ARM-STEERING GEAR
  48501-A3351L DRIVE6812 -   1
53ARM-STEERING GEAR
  48501-A3351L DRIVE6812 -   1
54ARM-STEERING GEAR
  48501-A3352L DRIVE6812 -   1
55NUT-HEX M20X1.5
  08911-2501AALL6812 -   1
56WASHER-LOCK SPRING
  08915-15010ALL6812 -   1
BOLT-HEX M8X1, 25X25 COVER SECTOR SHAFT SCREW-SECTOR SHAFT ADJUST GASKET-SECTOR SHAFT COVER ASSY-BEARING WORM COMP-REAR COVER HOUSING ASSY-STEERING JOINT BOLT-HEX M10X1, 25X20 WASHER-LOCK SPRING SEAL-OIL WORM WASHER-LOCK SPRING BOLT-HEX M10X1, 25X20 SEAL-OIL SECTOR SHAFT NUT 3/8-24 SELF LOCK BOLT 3/8-24X30 WASHER-LOCK SPRING SHAFT-STEERING COLUMN LOWER WASHER-PLAIN NUT-LOCK ADJUST SCREW PLUG-FILLER WASHER-LOCK SPRING SHIM-SECTOR SHAFT ADJUST BEARING-NEEDLE WORM-STEERING BOLT-HEX M8X1, 25X20 WASHER-LOCK SPRING ASSY-BEARING WORM ASSY-STEERING JOINT COMP-HOUSING STEERING GEAR (INC. 48201-A3200) SHAFT-SECTOR STEERING ARM-STEERING GEAR SHIM-WORM BEARING (T=0.127) LOCATION PIN-STEERING GEAR HOUSING COMP-HOUSING STEERING GEAR (INC. 48201-A3200) RING-O SHIM-WORM BEARING (T=0.762) / SHIM-WORM BEARING (T=0.050) NUT-HEX M20X1.5 ASSY-SHAFT & TUBE STEERING BOLT HEX 1/4-20 UNC X 16 WASHER SPRING LOCK
