Datsun Fairlady 1600/2000 Steering Linkage

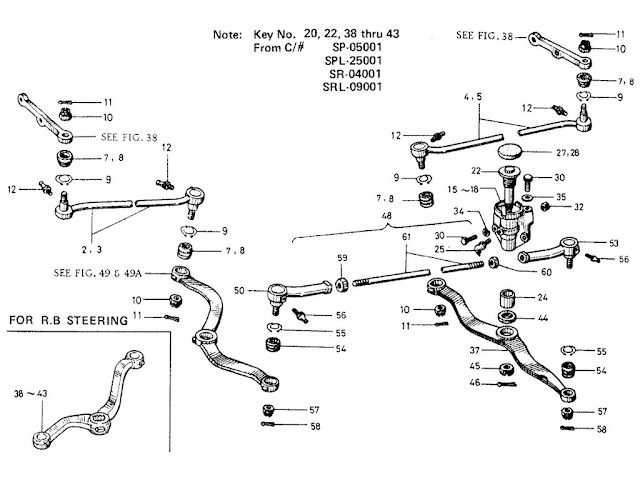

Datsun Fairlady Parts illustration no. 050-1 Steering Linkage

050 -1  Steering Linkage
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-ROD, SIDE RH
  48510-25900 ALL   -   1
2ASSY-ROD, SIDE RH
  48510-25900ALL   -   1
3ASSY-ROD, SIDE RH
  48510-25900ALL   -   1
4ASSY-ROD, SIDE RH
  48630-25900ALL   -   1
5ASSY-ROD, SIDE LH
  48630-25900ALL   -   1
6SEAL-DUST, SOCKET
  48522-16501ALL   - 67094
7SEAL-DUST, SOCKET
  48522-16501ALL   - 67091
8SEAL-DUST, SOCKET
  48522-25900ALL6710 -   4
9CLAMP-DUST,SEAL
  48520-04100ALL   -   4
10NUT
  00911-04710ALL   -   4
11COTTER PIN
  00921-2252AALL   -   4
12NIPPLE-GREASE
  00932-30200ALL   -   4
13ASSY-IDLER
  48530-A3350 R DRIVE   -   1
14ASSY-IDLER
  48530-A3350R DRIVE   -   1
15ASSY-IDLER
  48530-A3350R DRIVE   -   1
16ASSY-IDLER
  48530-A3350 L DRIVE   -   1
17ASSY-IDLER
  48530-A3350L DRIVE   -   1
18ASSY-IDLER
  48530-A3350L DRIVE   -   1
19ASSY-IDLER WITH ARM
  48530-A3350 R DRIVE   -   1
20ASSY-IDLER WITH ARM
  48530-A3350R DRIVE   -   1
21ASSY-IDLER WITH ARM
  48530-A3350L DRIVE   -   1
22ASSY-IDLER WITH ARM
  48530-A3350L DRIVE   -   1
23COMP.-BODY,IDLER
  48531-04100ALL   -   1
24BUSHING-IDLER SOCKET
  48127-30001ALL   -   1
25NIPPLE-GREASE
  00932-30200ALL   -   1
26IDLER SHAFT
  48540-04100ALL   -   1
27COVER IDLER (RUBBER)
  48546-A3200ALL   -   1
28COVER IDLER (RUBBER)
  48546-A3200ALL   -   1
29BOLT
  00124-63510ALL   -   3
30BOLT
  00124-63510ALL   -   3
31NUT
  00912-64610ALL   -   2
32NUT
  00912-64610ALL   -   2
33WASHER-LOCK
  00915-11610ALL   -   2
34WASHER-LOCK
  00915-11610ALL   -   2
35WASHER-LOCK
  00916-21610ALL   -   2
36ARM-IDLER
  48551-04150ALL   -   1
37ARM-IDLER
  48551-04150SP   -   1
38ARM-IDLER NO.1
  48551-04150R DRIVE   -   1
39ARM-IDLER NO.2
  48551-04151R DRIVE   -   1
40ARM-IDLER NO.3
  48551-04152R DRIVE   -   1
41ARM-IDLER NO.1
  48501-04150L DRIVE   -   1
42ARM-IDLER NO.2
  48501-04152L DRIVE   -   1
43ARM-IDLER NO.3
  48501-04152L DRIVE   -   1
44SEAL-DUST, ROCKER SHAFT
  48521-04100ALL   -   1
45NUT-STEERING LEVER
  48504-04100ALL   -   1
46COTTER PIN
  00921-43510ALL   -   1
47ASSY-ROD, CROSS
  48560-25900ALL   -   1
48ASSY-ROD, CROSS
  48560-25900ALL   -   1
49ASSY-SOCKET, CROSS ROD RH
  48570-71200 ALL   -   1
50ASSY-SOCKET, CROSS ROD RH
  48570-71200ALL   -   1
51ASSY-SOCKET, CROSS ROD LH
  48571-25900 ALL   -   1
52ASSY-SOCKET, CROSS ROD LH
  48571-25900ALL   -   1
53ASSY-SOCKET, CROSS ROD LH
  48571-25900ALL   -   1
54SEAL-DUST (RUBBER)
  48522-16501ALL   -   2
55CLAMP-DUST SEAL
  48520-04100ALL   -   2
56NIPPLE-GREASE
  00932-10200ALL   -   2
57NUT-SLOTTED
  00911-04710ALL   -   2
58COTTER PIN
  00921-2252AALL   -   2
59NUT
  00911-34810ALL   -   1
60NUT-CROSS ROD, LOCKING
  48583-04100ALL   -   1
61BAR CROSS ROD
  48550-04100ALL   -   1
ASSY-ROD, SIDE RH SEAL-DUST, SOCKET CLAMP-DUST,SEAL CLAMP-DUST,SEAL NUT NUT COTTER PIN COTTER PIN NIPPLE-GREASE COTTER PIN NUT ASSY-ROD, CROSS BAR CROSS ROD ASSY-IDLER WITH ARM BOLT WASHER-LOCK ASSY-IDLER WASHER-LOCK BOLT NUT-CROSS ROD, LOCKING COTTER PIN SEAL-DUST, ROCKER SHAFT ARM-IDLER CLAMP-DUST SEAL SEAL-DUST (RUBBER) NUT-SLOTTED COTTER PIN NUT-SLOTTED COTTER PIN ARM-IDLER NO.1 / ARM-IDLER NO.3 SEAL-DUST (RUBBER) CLAMP-DUST SEAL NIPPLE-GREASE ASSY-ROD, SIDE RH / ASSY-ROD, SIDE LH SEAL-DUST, SOCKET CLAMP-DUST,SEAL SEAL-DUST, SOCKET NIPPLE-GREASE NIPPLE-GREASE NIPPLE-GREASE CLAMP-DUST,SEAL SEAL-DUST, SOCKET NUT ASSY-SOCKET, CROSS ROD RH COVER IDLER (RUBBER) NUT NIPPLE-GREASE ASSY-SOCKET, CROSS ROD LH NIPPLE-GREASE NUT BUSHING-IDLER SOCKET NUT-STEERING LEVER COTTER PIN
