Datsun Fairlady 1600/2000 Steering Wheel

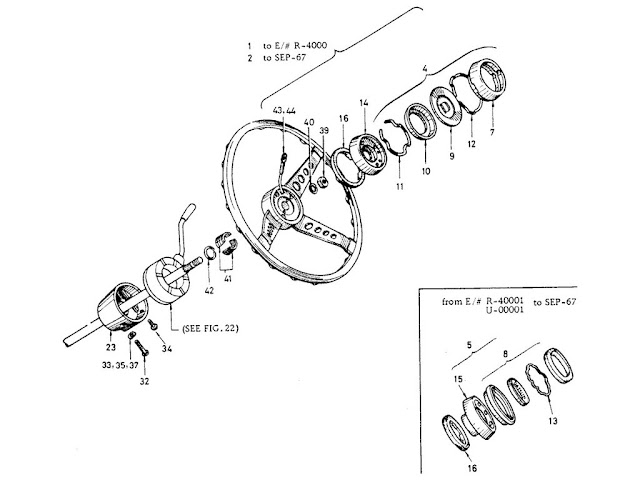

Datsun Fairlady Parts illustration no. 051-1 Steering Wheel (1965-67.5)

051 -1  Steering Wheel (1965-67.5)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-WHEEL, STEERING
  48400-25901 1.6L   - 67091
2ASSY-WHEEL, STEERING
  48400-25901ALL6703 - 67091
3ASSY-WHEEL, STEERING
  48400-25901ALL6710 -   1
4ASSY-BUTTON HORN
  48400-259011.6L   - 67021
5ASSY-BUTTON HORN
  48420-25500ALL6703 - 67091
6ASSY-BUTTON HORN
  48420-25900ALL6710 -   1
7RETAINER-HORN BUTTON UPPER
  48433-094001.6L   - 67021
8RETAINER-HORN BUTTON UPPER
  48432-25500ALL6703 - 67091
9BUTTON HORN
  48400-259011.6L   - 67021
10CAP HORN BUTTON
  48423-094001.6L   - 67021
11SPRING-BUTTON LOCK
  48422-094001.6L   - 67021
12SPRING-RETAINER LOCK
  48425-255001.6L   - 67021
13SPRING-RETAINER LOCK
  48425-25500ALL6703 - 67091
14ASSY-SWITCH, HORN
  48440-104001.6L   - 67021
15ASSY-SWITCH, HORN
  48440-25500ALL6703 - 67091
16SPRING HORN
  48424-10400ALL   - 67091
17SET-CAP, HORN PAD
  48493-25900ALL6710 -   1
18ASSY-RING, CONTACT
  48495-25900ALL6710 -   1
19PLATE-CONTACT
  48422-25900ALL6710 -   1
20SET-PLATE, HORN PAD
  48423-25900ALL6710 -   1
21CUSHION-HORN
  48424-25900ALL6710 -   1
22SPRING-HORN PAD
  48425-25900ALL6710 -   1
23SET-SHEEL, STEERING COLUMN
  48327-13050ALL   - 67091
24SET-SHEEL, STEERING COLUMN
  48470-25902SP, SR6710 -   1
25SET-SHEEL, STEERING COLUMN
  48470-25902SP, SR6710 -   1
26SET-SHEEL, STEERING COLUMN
  48470-25903SP, SR   -   1
27SET-SHEEL, STEERING COLUMN
  48470-26002SPL, SPLU, SRL, SRLU6710 -   1
28SET-SHEEL, STEERING COLUMN
  48470-26002SPL, SPLU, SRL, SRLU6710 -   1
29SET-SHEEL, STEERING COLUMN
  48470-A7800SPL, SPLU, SRL, SRLU   -   1
30SET-SHEEL, STEERING COLUMN
  48470-A7800SPL, SPLU, SRL, SRLU6907 -   1
31CLAMP-STEERING SHELL
  48332-10400ALL   -   1
32SCREW
  00310-61612ALL   - 67092
33WASHER-LOCK
  00915-10610ALL   - 67092
34SCREW
  08310-31612ALL6710 -   3
35WASHER LOCK
  08915-13310ALL6710 -   3
36SCREW 35X16
  08310-71614ALL   -   3
37WASHER-SPRING M35
  08915-13710ALL   -   3
38SCREW M3X16
  08330-31212ALL6710 -   1
39NUT-STEERING WHEEL FIXING
  48405-30800ALL   -   1
40WASHER-LOCK
  08916-14610ALL   -   1
41COLLAR-STEERING WHEEL FIXING
  48418-30800ALL   -   2
42WIRE
  48419-30800ALL   -   1
43CORD-HORN UPPER
  48450-104001.6L   -   1
44CORD-HORN UPPER
  48438-12905ALL6703 -   1
ASSY-BUTTON HORN CORD-HORN UPPER WASHER-LOCK NUT-STEERING WHEEL FIXING SPRING-BUTTON LOCK BUTTON HORN SPRING-RETAINER LOCK WIRE SET-SHEEL, STEERING COLUMN WASHER-LOCK SPRING-RETAINER LOCK ASSY-SWITCH, HORN SPRING HORN CAP HORN BUTTON RETAINER-HORN BUTTON UPPER COLLAR-STEERING WHEEL FIXING SCREW SCREW WASHER LOCK WASHER-SPRING M35 ASSY-BUTTON HORN RETAINER-HORN BUTTON UPPER ASSY-SWITCH, HORN SPRING HORN ASSY-WHEEL, STEERING ASSY-WHEEL, STEERING ASSY-WHEEL, STEERING SET-CAP, HORN PAD SPRING-HORN PAD CUSHION-HORN NUT-STEERING WHEEL FIXING WIRE SET-SHEEL, STEERING COLUMN SCREW WASHER LOCK ASSY-RING, CONTACT SET-PLATE, HORN PAD PLATE-CONTACT ASSY-BUTTON HORN WASHER-LOCK COLLAR-STEERING WHEEL FIXING WASHER-SPRING M35
