Datsun 510 Front Axle & Suspension

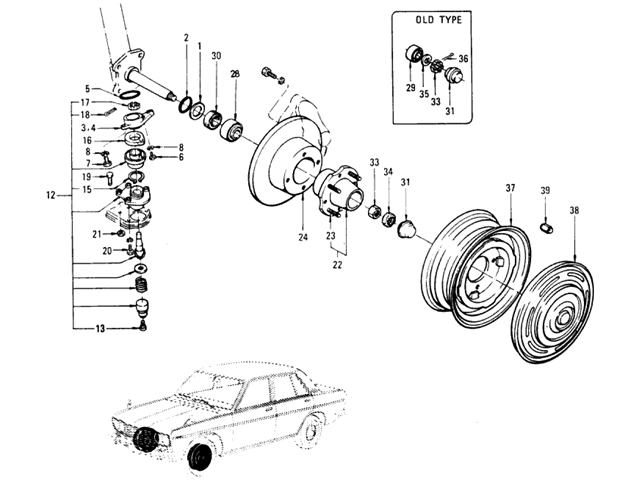

Datsun 510 Parts illustration no. 062-1 Front Axle

062 -1  Front Axle
KeyPart No.ModelApplied DateQty
FromTo
1COLLAR-FRONT SPINDLE
  40018-A0800     -   2
2O RING-COLLAR
  40019-21000     -   2
3ARM-KNUCKLE RH
  40052-21003     -   1
  40052-H2501     -   1
4ARM-KNUCKLE LH
  40053-21003     -   1
  40053-H2501     -   1
5O RING KNUCKLE ARM
  40054-21000     -   2
6BOLT FIX KNUCKL
  40056-41L00     -   2
7BOLT FIX KNUCKL
  40057-21001     -   2
8WASHER-LOCK M12
  08915-2421A     -   2
9NUT
  08911-3401A     -   2
10BOLT STOPPER STEERING
  40038-18001     -   2
11CAP BOLT STOPPER STEERING (FOR SERVICE USE ONLY)
  40039-21000OP   -   2
12BALL JOINT SUSP
  40160-A3405     -   2
  40160-A8625     -   2
13PLUG-FILLER
  40189-7300A     -   2
14COVER-DUST LOWER
  40192-A8600     -   2
15CLAMP-DUST COVER LOWER
  40196-21000     -   2
16LOWER DUST COVER
  40198-21000     -   2
17NUT-HEX SLOTTED M12X1.25
  40179-A4600     -   2
  01227-00061   7008 - 71022

NUT-HEX SLOTTED M14X1.25
  40179-A8600   7008 -   2
18PIN-COTTER 3.2X25
  08921-3252A     -   2
19BOLT-HEX WITH WASHER M8X1.25
  08130-82065     -   4
20BOLT-HEX M10X1.25X45
  08174-0451A     -   4
21NUT-HEX MYLOCK M10X1.25
  08912-3401A     -   4
22ASSY-HUB ROAD WHEEL FRONT FOR DISC
  40202-22051USA   -   2

ASSY-HUB ROAD WHEEL FRONT FOR DRUM
  40202-21050CANADA   -   2
23BOLT HUB R/W FOR DISC
  40222-22001USA   -   8

BOLT HUB R/W FOR DRUM
  40222-A0800CANADA   -   16
24DISC BRAKE ROTOR
  40206-A1155     -   2

  40206-A1155 USA   -   2

DRUM BRAKE FR
  43206-4M700CANADA   -   2
25CATCHER GREASE
  40242-21000CANADA   -   2
26BOLT FIX ROTOR
  01111-00312USA   -   8
27WASHER-LOCK M10
  08915-2401AUSA   -   8
28BRG F/WHEEL IN
  40210-A0800     -   2
29BRG F/WHEEL OUT
  40215-21000     -   2
30SEAL GREASE HUB
  40232-21000     -   2
31CAP-HUB,FRONT WHEEL
  40234-21000     -   2
  40234-28500   7104 -   2
32O RING
  40290-28500   7104 -   1
33NUT-LOCK,FRONT WHEEL BEARING
  40262-21001     - 71032
  40262-U0100   7104 -   2
34CAP-ADJUST,FRONT WHEEL BEARING
  40263-U0100   7104 -   2
35WASHER F/WHEEL
  40264-A0800     -   2
36PIN-COTTER
  00921-4302A     -   2
37ASSY-ROAD WHEEL T2.9
  40300-N6300 CANADA   -   2

  40300-N6300EXC SSS   -   2

  40300-23100USA   -   2

ASSY-ROAD WHEEL T3.2
  40300-N6300EXC SSS   - 70072

  40300-22000OP   -   2
38COVER R/WHEEL
  40315-21600USA   -   2

COVER R/WHEEL (MEXICO MADE)
  40315-N2200   7108 -   2
39NUT ROAD WHEEL
  40224-EJ20A     -   1
40BOLT HEX M10X1.25
  08124-02810     -   4
41NUT HEX SELFLOCKING M10X1.25
  08912-3401A     -   4
42WASHER PLAIN
  54408-21000     -   4
43WASHER PLAIN
  54407-21000     -   2
44LINK-TRANSVERSE RH
  54529-21010     -   1
  54529-N5801     -   1
45LINK-TRANSVERSE LH
  54530-N5801     -   1
46BOLT
  54436-21001     - 69042
  54436-A0800   6905 - 71072
  54436-U0101   7108 -   1
47NUT
  08912-64410     -   2
48ASSY-BUSH.TRANSVERSE LINK (FRONT & REAR)
  54535-A0801     -   4

ASSY-BUSH.TRANSVERSE LINK (FRONT)
  54535-A0801     -   2

ASSY-BUSH.TRANSVERSE LINK (REAR)
  54535-A0801     -   2
49ASSY-BUSH.TRANSVERSE LINK
  54535-22008     -   2
50WASHER SPECIAL
  54537-21001     -   2
  54537-A0800     -   2
51WASHER-SPECIAL
  54538-21001     - 69072
  54538-A0800   6908 - 71072
  54538-U0101   7108 -   2
52BAR TORSION
  54611-22500     -   1

  54611-22500SEDAN   -   1

  54611-22500WAGON   -   1
53BUSH RUBBER
  56112-W5000     -   8
54WASHER SPECIAL
  56113-60U0A     -   4
55WASHER SPECIAL
  56114-09400     -   4
56ROD-CONNECTING,STABILIZER
  54618-U0100     -   2
57WASHER
  56113-60U0A     -   4
58NUT SELF LOCKING M10X1.25
  08912-3401A     -   4
59BRACKET STABILIZER
  54616-21001     -   2
60BUSH STABILIZER
  54617-21002     -   2
61BOLT HEX M8 X 1.25
  08120-8201E     -   4
62KIT-STRUT LH (ATSUGI)
  54303-26127SEDAN   - 68111
  54303-A8726SEDAN6812 -   1

KIT-STRUT LH (KAYABA)
  54303-26128SEDAN   - 68111
  54303-A8726SEDAN6812 -   1

KIT-STRUT LH FOR DISC BRAKE (ATSUGI)
  54303-E7626 OP EXC SSS6804 -   1

KIT-STRUT LH FOR DISC BRAKE (KAYABA)
  54303-A1126OP EXC SSS   - 69081

KIT-STRUT RH (ATSUGI)
  54302-26127SEDAN   - 68111
  54302-A2625SEDAN6812 -   1
  54302-E7626SEDAN6812 -   1

KIT-STRUT RH (KAYABA)
  54302-26128SEDAN   - 68111
  54302-E7626SEDAN6812 -   1
  54302-A2626SEDAN6812 -   1

KIT-STRUT RH FOR DISC BRAKE
  54302-N0828 OP EXC SSS6909 - 71031

KIT-STRUT RH FOR DISC BRAKE (ATSUGI)
  54302-E7626 OP EXC SSS   - 69081
  54302-N0827 OP EXC SSS6909 - 71071

KIT-STRUT RH FOR DISC BRAKE (KAYABA)
  54302-A1128 OP EXC SSS   - 69081
  54302-N0828OP EXC SSS7104 - 71071

  54302-N0828 SSS6909 - 71031

KIT-STRUT,HARD RH FOR DISC BRAKE(ATSUGI)
  54302-N0827   7108 -   1

KIT-STRUT,HARD RH FOR DISC BRAKE(KAYABA)
  54302-N0828   7108 -   1
63KIT-STRUT LH FOR DISC BRAKE (ATSUGI)
  54303-A1127OP EXC SSS6812 - 69081
  54303-N0827 OP EXC SSS6909 - 71031

KIT-STRUT LH FOR DISC BRAKE (KAYABA)
  54303-A1128OP EXC SSS6812 - 69081
  54303-N0828OP EXC SSS6909 - 71071
  54303-N0827OP EXC SSS7104 - 71071

KIT-STRUT,HARD LH FOR DISC BRAKE(ATSUGI)
  54303-N0827   7108 -   1

KIT-STRUT,HARD LH FOR DISC BRAKE(KAYABA)
  54303-N0828   7108 -   1
64KIT-STRUT LH FOR DISC BRAKE (ATSUGI)
  54303-22827WAGON   - 68111
  54303-N0827 WAGON6812 - 71071

KIT-STRUT LH FOR DISC BRAKE (KAYABA)
  54303-22828WAGON   - 68111
  54303-N0828WAGON6812 - 71071

KIT-STRUT RH FOR DISC BRAKE (ATSUGI)
  54302-22827WAGON   - 68111
  54302-N0827 WAGON6812 - 71071

KIT-STRUT RH FOR DISC BRAKE (KAYABA)
  54302-22828WAGON   - 68111
  54302-N0828WAGON6812 - 71071

KIT-STRUT,HARD LH FOR DISC BRAKE(ATSUGI
  54303-N0827WAGON7108 -   1

KIT-STRUT,HARD LH FOR DISC BRAKE(KAYABA)
  54303-N0828WAGON7108 -   1

KIT-STRUT,HARD RH FOR DISC BRAKE(ATSUGI)
  54302-N0827WAGON7108 -   1

KIT-STRUT,HARD RH FOR DISC BRAKE(KAYABA)
  54302-N0828WAGON7108 -   1
65KIT-ABSORBER,HARD SHOCK (ATSUGI)
  56110-U0127OP SEDAN EXC SSS7108 -   1

SHOCK ABSORBER KIT
  56110-A3726WAGON   -   2

SHOCK ABSORBER KIT(ATSUGI)
  56110-A3726     -   2

  56110-N0725OP SEDAN7008 -   2

  56110-22526SEDAN EXC S,LS & SSS   -   2

  56110-A3726SEDAN EXC SSS6907 - 71072

  56110-A3726WAGON   -   2

SHOCK ABSORBER KIT(KAYABA)
  56110-22526SEDAN EXC S,LS & SSS   -   2

  56110-A3726SEDAN EXC SSS6907 - 71072

  56110-22526WAGON   -   2

SHOCK ABSORBER KIT,HARD SHOCK (KAYABA)
  56110-U0128OP SEDAN EXC SSS7108 -   2
66KIT-SEAL,STRUT(ATSUGI)
  54308-A0825EXC SSS   - 71071
  54308-D0125EXC SSS7108 -   1

KIT-SEAL,STRUT(KAYABA)
  54308-A0829EXC SSS   - 68111
  54308-A0826EXC SSS6812 - 71071
  54308-U0126EXC SSS7108 -   1
67RING-O,SHOCK ABSORBER
  54309-21000S & LS   -   2
68OIL-STRUT(1000 CC)
  54313-89925   7106 - 71071

OIL-STRUT(360 CC)
  54313-89925   6808 -   1

OIL-STRUT(ATSUGI)
  54313-89925     - 68071

OIL-STRUT(KAYABA)
  54313-89925 S & LS   - 68071
69SPRING-FRONT
  54010-21003EXC LS7104 - 71072
70SPRING-FRONT
  54010-E2301   7108 -   1

  54010-E2301LS   - 71072

SPRING-FRONT FOR RALLY LH
  54010-21007OP   -   1

SPRING-FRONT FOR RALLY RH
  54010-21008OP   -   1

SPRING-FRONT,HARD
  54010-U0110     -   2
71BUMPER-BOUND,FRONT SUSPENSION
  54050-21000     - 71062
  54050-U0101   7107 -   2
72SEAT SPRING
  54040-21000     -   2
73COVER DUST
  54055-21000     -   2
74RING SNAP
  54057-21000     -   2
75SEAL DUST
  54059-21002     -   2
76BRG STRUT MTG
  54325-21000     -   2
77INSULATOR-STRUT MTG
  54320-21001     -   2
78NUT-LOCKING,SELF(M12 X 1.25)
  08912-34210     -   2
  08912-8421A     -   2
79NUT M8X1.25
  21107-E2400     -   6
80WASHER SPG LOCK
  08915-2401A     -   6
81ROD-TENSION FRONT SUSP RH
  54470-21000SEDAN   - 69091
  54470-22500SEDAN6910 -   1
82ROD-TENSION FRONT SUSP LH
  54471-21000SEDAN   - 69091
  54471-22500SEDAN6910 -   1
83ROD-TENSION FRONT SUSP RH
  54470-22500WAGON   -   1
84ROD-TENSION FRONT SUSP LH
  54471-22500WAGON   -   1
85WASHER-SPECIAL
  54537-21003     -   4
86COLLAR-BUSHING TENSIONROD MTG
  54479-21000     -   2
87WASHER-PLAIN
  08915-5421A     -   2
88NUT-SELF,LOCK
  08912-34210     -   2
89BUSHING-TENSION ROD MOUNTING
  54476-21000     -   4
90BOLT-FIX ROD & BALL JOINT
  08174-0451A     -   4
91NUT-FIX ROD & BALL JOINT
  08912-44010     -   4
92MEMBER-SUSPENSION,FRONT
  54401-N1610     - 71071
  54401-N1600   7108 -   1
93STRUT ASSY WITH SWIVEL AXLE LH FOR DISC
  54301-23151L13 & L16 SEDAN   - 68121
  54301-A2651L13 & L16 SEDAN6901 - 69091
  54301-A5250L13 & L16 SEDAN6910 -   1

STRUT ASSY WITH SWIVEL AXLE RH FOR DISC
  54300-26151L13 & L16 SEDAN   - 68121
  54300-A2651L13 & L16 SEDAN6901 - 69091
  54300-A5050L13 & L16 SEDAN6910 -   1
94PROTECTOR-MEMBER,FRONT SUSPENSION CROSS
  54409-N1200OP EXC AUTO6910 -   1
95BOLT-HEXAGON(M8 X 1.25)
  08120-8201EOP EXC AUTO7202 -   3
96WASHER-LOCK
  08915-1381AOP EXC AUTO7202 -   3
97WASHER-PLAIN
  08915-4381AOP EXC AUTO7202 -   3
ARM-KNUCKLE BOLT FIX KNUCKL WASHER-LOCK M12 BALL JOINT SUSP NUT-HEX SLOTTED M12X1.25 PIN-COTTER 3.2X25 CLAMP-DUST COVER LOWER NUT-HEX MYLOCK M10X1.25 PLUG-FILLER BOLT HUB ROAD WHEEL ASSY-HUB ROAD WHEEL FRONT SEAL GREASE HUB ASSY-ROAD WHEEL CAP-HUB,FRONT WHEEL BRG F/WHEEL OUT COLLAR-FRONT SPINDLE O RING-COLLAR O RING KNUCKLE ARM BOLT FIX KNUCKL WASHER-LOCK M12 LOWER DUST COVER BOLT-HEX WITH WASHER M8X1.25 BOLT-HEX M10X1.25X45 DISC/DRUM BRAKE BRG F/WHEEL IN NUT-LOCK,FRONT WHEEL BEARING CAP-ADJUST,FRONT WHEEL BEARING CAP-HUB,FRONT WHEEL NUT ROAD WHEEL COVER R/WHEEL NUT-LOCK,FRONT WHEEL BEARING WASHER F/WHEEL PIN-COTTER ROD-TENSION FRONT SUSP RH NUT-SELF,LOCK ASSY-BUSH.TRANSVERSE LINK NUT SELF LOCKING M10X1.25 WASHER SPECIAL BOLT HEX M8 X 1.25 BOLT HEX M10X1.25 WASHER PLAIN BUSH RUBBER OIL-STRUT BUSHING-TENSION ROD MOUNTING COLLAR-BUSHING TENSIONROD MTG BOLT-HEXAGON(M8 X 1.25) WASHER-LOCK ROD-TENSION FRONT SUSP LH BUSH RUBBER WASHER SPECIAL WASHER-SPECIAL WASHER PLAIN ROD-CONNECTING,STABILIZER NUT SELF LOCKING M10X1.25 WASHER SPECIAL KIT-SEAL,STRUT WASHER SPG LOCK RING SNAP SPRING-FRONT BRG STRUT MTG KIT-STRUT STRUT ASSY WITH SWIVEL AXLE FOR DISC BUSH RUBBER WASHER SPECIAL ROD-CONNECTING,STABILIZER BUSH STABILIZER BUSH STABILIZER LINK-TRANSVERSE RH PROTECTOR-MEMBER,FRONT SUSPENSION CROSS MEMBER-SUSPENSION,FRONT BAR TORSION BUSH STABILIZER BRACKET STABILIZER BOLT HEX M8 X 1.25 NUT-SELF,LOCK WASHER-PLAIN BUSHING-TENSION ROD MOUNTING WASHER-SPECIAL BOLT WASHER SPECIAL ASSY-BUSH.TRANSVERSE LINK ASSY-BUSH.TRANSVERSE LINK NUT HEX SELFLOCKING M10X1.25 NUT SELF LOCKING M10X1.25 WASHER SPECIAL NUT-FIX ROD & BALL JOINT LINK-TRANSVERSE LH ASSY-BUSH.TRANSVERSE LINK NUT BUSH RUBBER WASHER PLAIN BOLT HEX M10X1.25 WASHER SPECIAL BUSH RUBBER KIT-STRUT NUT M8X1.25 SEAL DUST COVER DUST SHOCK ABSORBER KIT STRUT ASSY WITH SWIVEL AXLE FOR DISC NUT-LOCKING,SELF(M12 X 1.25) INSULATOR-STRUT MTG SEAT SPRING NUT HEX SELFLOCKING M10X1.25 WASHER-SPECIAL BOLT-FIX ROD & BALL JOINT SPRING-FRONT BUSH RUBBER NUT SELF LOCKING M10X1.25 KIT-STRUT STRUT ASSY WITH SWIVEL AXLE FOR DISC BOLT HEX M10X1.25 LINK-TRANSVERSE RH NUT HEX SELFLOCKING M10X1.25 BRACKET STABILIZER ROD-TENSION FRONT SUSP RH PROTECTOR-MEMBER,FRONT SUSPENSION CROSS NUT-SELF,LOCK WASHER-SPECIAL COLLAR-BUSHING TENSIONROD MTG WASHER PLAIN NUT HEX SELFLOCKING M10X1.25 WASHER-LOCK BOLT-HEXAGON(M8 X 1.25) BUSHING-TENSION ROD MOUNTING BOLT ROD-TENSION FRONT SUSP LH BUSH RUBBER WASHER SPECIAL ASSY-BUSH.TRANSVERSE LINK BOLT-FIX ROD & BALL JOINT NUT ROD-CONNECTING,STABILIZER WASHER SPECIAL WASHER SPECIAL NUT SELF LOCKING M10X1.25 KIT-STRUT WASHER SPG LOCK NUT-LOCKING,SELF(M12 X 1.25) INSULATOR-STRUT MTG SPRING-FRONT STRUT ASSY WITH SWIVEL AXLE FOR DISC BUSH RUBBER ROD-CONNECTING,STABILIZER BUSH RUBBER WASHER SPECIAL WASHER SPECIAL BOLT HEX M8 X 1.25 WASHER PLAIN BAR TORSION BUSH STABILIZER MEMBER-SUSPENSION,FRONT ASSY-BUSH.TRANSVERSE LINK BUSHING-TENSION ROD MOUNTING OIL-STRUT BUSH STABILIZER BOLT HEX M8 X 1.25 BRACKET STABILIZER BOLT HEX M10X1.25 ASSY-BUSH.TRANSVERSE LINK WASHER SPECIAL WASHER-PLAIN WASHER-SPECIAL NUT SELF LOCKING M10X1.25 NUT-FIX ROD & BALL JOINT LINK-TRANSVERSE LH WASHER-SPECIAL WASHER PLAIN BUSH RUBBER BUSH RUBBER BUSH RUBBER KIT-SEAL,STRUT NUT M8X1.25 BRG STRUT MTG SEAT SPRING SEAL DUST RING SNAP SPRING-FRONT COVER DUST SHOCK ABSORBER KIT NUT-SELF,LOCK ASSY-BUSH.TRANSVERSE LINK WASHER SPECIAL
