Datsun 510 Ventilator (Sedan)

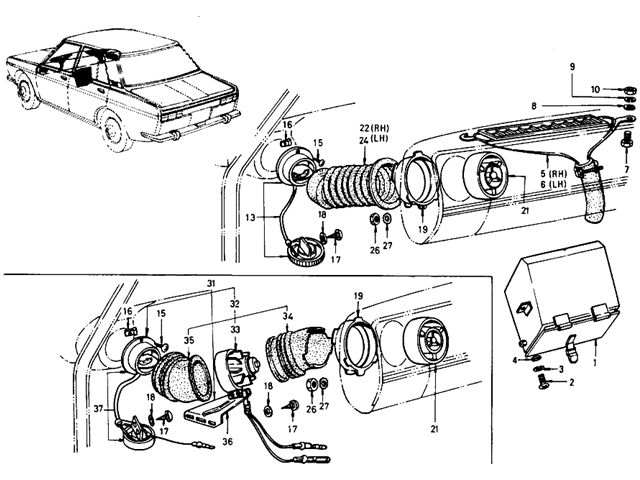

Datsun 510 Parts illustration no. 081B-1 Ventilator (Sedan)

081B -1  Ventilator (Sedan)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-VENTILATOR
  27801-23100SEDAN   - 69081

ASSY-VENTILATOR (FOR LESS HEATER)
  27801-A4600SEDAN6909 -   1
2SCREW
  08360-61212SEDAN   -   2
3WASHER-LOCK
  08915-1361ASEDAN   -   6
4WASHER-PLAIN
  08915-4361ASEDAN   -   6
5DEMISTER NOZZLE RH
  27171-21001SEDAN   - 69071
  27171-A4600SEDAN6908 -   1
6DEMISTER NOZZLE LH
  27172-21001SEDAN   - 69071
  27172-A4600SEDAN6908 -   1
7HEXAGON BOLT
  08110-61462SEDAN   - 69074
8PLAIN WASHER
  08915-4361ASEDAN   - 69074
9SPRING WASHER
  08915-1361ASEDAN   - 69074
10HEXAGON NUT
  08911-1062ASEDAN   - 69074
11TAPPING SCREW
  08360-41042SEDAN6908 -   4
12PLAIN WASHER
  08915-48442SEDAN6908 -   4
13VALVE-SIDE VENT
  66510-21001SEDAN   -   2
14CLIP-SIDE VENT
  24220-89958SEDAN6910 -   2

GROMMET-SIDE VENT
  24250-89977SEDAN6910 -   2

VALVE-SIDE VENT
  68770-A4600SEDAN6910 -   2
15SCREW-TAPPING
  08540-6122ASEDAN   -   6
16NUT-SPRING
  01241-00491SEDAN   -   4
17SCREW
  08513-51212SEDAN   -   4
18WASHER-PLAIN
  08915-4351ASEDAN   -   4
19NOZZLE-VENT
  66520-78500SEDAN   - 69092
20NOZZLE-VENT
  68760-A4600SEDAN6910 -   2
21NOZZLE-VENT SIDE
  66512-78501SEDAN   -   2
22DUCT-VENT RH
  66522-21000SEDAN   - 69092
23DUCT-VENT RH
  68780-A4600SEDAN6910 -   2
24DUCT-VENT LH
  66523-21000SEDAN   - 69092
25DUCT-VENT LH
  68781-A4600SEDAN6910 -   2
26HEXAGON NUT
  16132-J1700SEDAN   - 69072
27LOCK WASHER
  08916-33410SEDAN   - 69072
28TAPPING SCREW
  08513-41212SEDAN6908 -   4
29BOX VENTILATOR (FOR LESS HEATER)
  27802-A4605SEDAN6910 -   1
30LEVER VALVE SHUT (FOR LESS HEATER)
  27803-A4600   6910 -   1
31KIT-FAN SIDE VENT LH
  28980-21005OP SEDAN   -   1

KIT-FAN SIDE VENT RH
  28980-21000OP SEDAN   -   1
32COMP-FAN SIDE VENT LH
  28985-21005OP SEDAN   -   1

COMP-FAN SIDE VENT RH
  28985-21000OP SEDAN   -   1
33ASSY-FAN SIDE RH/LH
  28986-78500OP SEDAN   -   2

ASSY-FAN SIDE VENT LH
  28986-78500OP SEDAN   -   1

ASSY-FAN SIDE VENT RH
  28986-21000OP SEDAN   -   1
34DUCT A LH
  28987-21005OP SEDAN   -   1

DUCT A RH
  28987-21000OP SEDAN   -   1
35DUCT B LH
  28988-21005OP SEDAN   -   1

DUCT B RH
  28988-21000OP SEDAN   -   1
36BRACKET-FAN SIDE VENT LH
  28989-21005OP SEDAN   -   1

BRACKET-FAN SIDE VENT RH
  28989-21000OP.SEDAN   -   1
37ASSY SWITCH SIDE VENT FAN
  28990-78500OP SEDAN   -   2
ASSY-VENTILATOR SCREW WASHER-LOCK DEMISTER NOZZLE LH PLAIN WASHER SPRING WASHER HEXAGON NUT NUT-SPRING SCREW WASHER-PLAIN HEXAGON NUT LOCK WASHER NOZZLE-VENT SIDE NOZZLE-VENT KIT-FAN SIDE VENT SCREW-TAPPING NUT-SPRING ASSY SWITCH SIDE VENT FAN HEXAGON NUT WASHER-PLAIN DEMISTER NOZZLE RH HEXAGON BOLT VALVE-SIDE VENT SCREW-TAPPING NOZZLE-VENT NOZZLE-VENT SIDE DUCT-VENT RH DUCT-VENT LH COMP-FAN SIDE VENT ASSY-FAN SIDE RH/LH DUCT A DUCT B WASHER-PLAIN SCREW BRACKET-FAN SIDE VENT WASHER-PLAIN SCREW LOCK WASHER DEMISTER NOZZLE RH / DEMISTER NOZZLE LH DUCT-VENT RH / DUCT-VENT LH NOZZLE-VENT SIDE TAPPING SCREW ASSY-VENTILATOR SCREW VALVE, CLIP & GROMMET SIDE VENT NOZZLE-VENT PLAIN WASHER TAPPING SCREW BOX VENTILATOR (FOR LESS HEATER) LEVER VALVE SHUT (FOR LESS HEATER)
