Datsun 510 Bench Type Front Seat (Wagon)

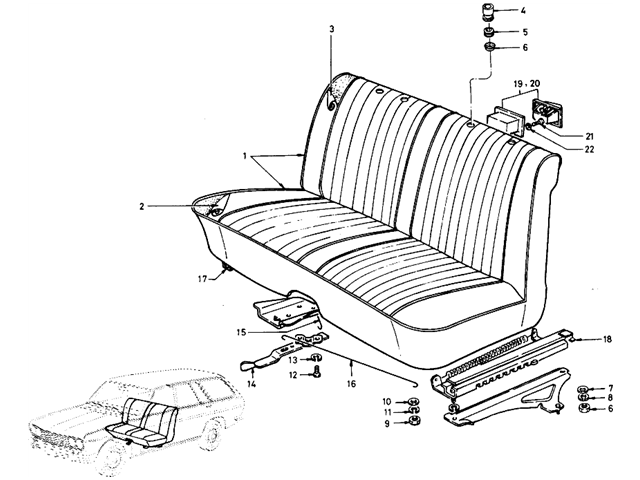

Datsun 510 Parts illustration no. 126-1 Bench Type Front Seat (Wagon)

126 -1  Bench Type Front Seat (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-SEAT,FRONT (BLACK)
  86000-21301WAGON   - 68071
  86000-A2001WAGON6808 - 69081
  86000-A5600WAGON6909 -   1
  86000-N1110WAGON7008 - 71071

  86000-A2701WAGON PUERTO RICO6808 - 69081

ASSY-SEAT,FRONT (BLUE)
  86000-21302WAGON   - 68071
  86000-A5602WAGON6909 -   1
  86000-N1112WAGON7008 - 71071

ASSY-SEAT,FRONT (BROWN)
  86000-A2002WAGON6808 - 69081
  86000-A5601WAGON6909 - 70071
  86000-N1111WAGON7008 - 71071
  86000-N2210WAGON7108 -   1

  86000-A2702WAGON PUERTO RICO6808 - 69081

ASSY-SEAT,FRONT (RED)
  86000-21300WAGON   - 68071
  86000-A2000WAGON6808 - 69081
  86000-A5603WAGON6909 -   1
  86000-N1113WAGON7008 - 71071

  86000-A2700WAGON PUERTO RICO6808 - 69081
2TRIM-CUSHION,FRONT SEAT (BLACK)
  86320-A5600   7108 -   1

  86320-21301WAGON   - 68071
  86320-A2001WAGON6808 - 69081
  86320-A5400WAGON6909 - 70071
  86320-N0610WAGON7008 - 71071

TRIM-CUSHION,FRONT SEAT (BLUE)
  86320-21302WAGON   - 68071
  86320-A5402WAGON6909 - 70071
  86320-N0612WAGON7008 - 71071
  86320-A5602WAGON7108 -   1

TRIM-CUSHION,FRONT SEAT (BROWN)
  86320-21303WAGON   - 68071
  86320-A2002WAGON6808 - 69081
  86320-A5401WAGON6909 - 70071
  86320-N0611WAGON7008 - 71071
  86320-N2210WAGON7108 -   1

TRIM-CUSHION,FRONT SEAT (RED)
  86320-21300WAGON   - 68071
  86320-A2000WAGON6808 - 69081
  86320-A5403WAGON6909 - 70071
  86320-N0613WAGON7008 - 71071
  86320-A5603WAGON7108 -   1
3TRIM-BACK,FRONT SEAT (BLACK)
  86620-21301WAGON   - 68071
  86620-A2001WAGON6808 - 69081
  86620-A5400WAGON6909 - 70071
  86620-N0610WAGON7008 - 71070
  86620-A5600WAGON7108 -   1

TRIM-BACK,FRONT SEAT (BLUE)
  86620-21302WAGON   - 68071
  86620-A5402WAGON6909 - 70071
  86620-N0612WAGON7008 - 71071
  86620-A5602WAGON7108 -   1

TRIM-BACK,FRONT SEAT (BROWN)
  86620-21303WAGON   - 68071
  86620-A2002WAGON6808 - 69081
  86620-A5401WAGON6909 - 70071
  86620-N0611WAGON7008 - 71071
  86620-N2210WAGON7108 -   1

TRIM-BACK,FRONT SEAT (RED)
  86620-21300WAGON   - 68071
  86620-A2000WAGON6808 - 69081
  86620-A5403WAGON6909 - 70071
  86620-N0613WAGON7008 - 71071
  86620-A5603WAGON7108 -   1
4EYELET SEAT BACK A
  86982-A0600WAGON   -   4
5EYELET SEAT BACK B
  86983-A0600WAGON   -   4
6NUT M8X1.25
  08911-1082AWAGON   -   4
7WASHER M8 #1
  08915-4381AWAGON   -   4
8SPRING WASHER M8 #2
  08915-1381AWAGON   -   4
9NUT M8X1.25
  08911-1082AWAGON   -   4
10WASHER M8 #1
  08915-4381AWAGON   -   4
11SPRING WASHER M8 #2
  08915-1381AWAGON   -   4
12P/M MACHINE SCREW M5X0.8
  08360-51012WAGON   -   2
13SPRING WASHER M5 #2
  08915-13510WAGON   -   2
14LEVER F/S SLIDE
  86522-21000WAGON   -   1
15WIRE-RELEASE,SLIDE RH
  86532-21000WAGON   - 71121
  86532-U0100WAGON7201 -   1
16WIRE-RELEASE,SLIDE LH
  86533-21000WAGON   - 71121
  86533-N2220WAGON7201 -   1
17ASSY-SLIDE,FRONT SEAT RH
  86501-21010WAGON   -   1
  86501-N2220WAGON7201 -   1
18ASSY-SLIDE,FRONT SEAT LH
  86502-21010WAGON   -   1
  86502-N2220WAGON7201 -   1
19ASSY-ASH TRAY
  96501-21000WAGON   -   1
20ASSY-ASH TRAY
  82960-A5500WAGON6910 -   2
21SCREW
  08430-41020WAGON   -   2
22WASHER-LOCK
  08916-43410WAGON   -   2
23GLASS-WINDOW,TAIL GATE DEMISTING (TEMPERED ANTI SUN)
  90301-N1100OP WAGON USA7108 -   1
