Datsun 510 Body Side Trimming (Wagon)

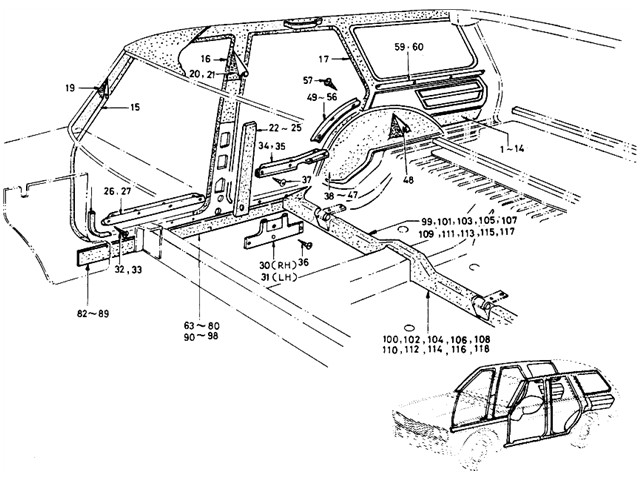

Datsun 510 Parts illustration no. 117-1 Body Side Trimming (Wagon)

117 -1  Body Side Trimming (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1COVER BODY SIDE RH RED
  76907-22504WAGON   -   1
  76907-A9504WAGON7008 -   1
2COVER BODY SIDE LH RED
  76908-22504WAGON   -   1
  76908-A9504WAGON7008 -   1
3COVER BODY SIDE RH BLUE GREEN
  76907-22505WAGON   -   1
4COVER BODY SIDE LH BLUE GREEN
  76908-22505WAGON   -   1
5COVER BODY SIDE RH BROWN
  76907-22506WAGON   - 68091
  76907-A2800WAGON6810 -   1
6COVER BODY SIDE LH BROWN
  76908-22506WAGON   - 68091
  76908-A2800WAGON6810 -   1
7COVER BODY SIDE RH BLACK
  76907-22507WAGON   -   1
  76907-A9500WAGON7008 -   1
8COVER BODY SIDE LH BLACK
  76908-A9500WAGON   -   1
9COVER-BODY,SIDE RH(BROWN)
  76907-A5302WAGON6909 - 70071
  76907-A9501WAGON7008 - 71071
10COVER-BODY,SIDE LH(BROWN)
  76908-A5302WAGON6909 - 70071
  76908-A9501WAGON7008 - 71071
11COVER BODY SIDE RH BLUE
  76907-A5303WAGON6910 -   1
  76907-A9505WAGON7008 -   1
12COVER BODY SIDE LH BLUE
  76908-A1801WAGON   -   1
  76908-A9505WAGON7008 -   1
13COVER-BODY,SIDE RH(BEIGE)
  76907-A9506WAGON7108 -   1
14COVER-BODY,SIDE LH(BEIGE)
  76908-A9506WAGON7108 -   1
15ASSY-WELT,BODY SIDE FRONT (BEIGE)
  76921-A9500WAGON7108 -   2

ASSY-WELT,BODY SIDE FRONT (BLACK)
  76921-A1903WAGON   -   2

ASSY-WELT,BODY SIDE FRONT (BLUE)
  76921-22902WAGON   - 68072
  76921-A5300WAGON6909 - 68092

ASSY-WELT,BODY SIDE FRONT (BROWN)
  76921-22700WAGON   - 68072
  76921-A1800WAGON6808 - 71072

ASSY-WELT,BODY SIDE FRONT (RED)
  76921-22901WAGON   - 68072
  76921-A1900WAGON6808 - 68092
16ASSY-WELT,BODY SIDE CENTER (BLACK)
  76922-22501WAGON   - 68074
  76922-A1903WAGON6808 -   4

ASSY-WELT,BODY SIDE CENTER (BLUE)
  76922-22902WAGON   - 68074
  76922-A5300WAGON6909 -   4

ASSY-WELT,BODY SIDE CENTER (BROWN)
  76922-22700WAGON   - 68074
  76922-A1800WAGON6808 - 71074

ASSY-WELT,BODY SIDE CENTER (RED)
  76922-22901WAGON   - 68074
  76922-A1900WAGON6808 - 71074

ASSY-WELT,BODY SIDE FRONT (BEIGE)
  76922-A9500WAGON7108 -   4
17ASSY-WELT,BODY SIDE REAR (BEIGE)
  76923-A9500WAGON7108 -   2

ASSY-WELT,BODY SIDE REAR (BLACK)
  76923-22501WAGON   - 68072
  76923-A1903WAGON6808 -   2

ASSY-WELT,BODY SIDE REAR (BLUE)
  76923-A5300WAGON   -   2
  76923-22902WAGON   - 68072

ASSY-WELT,BODY SIDE REAR (BROWN)
  76923-22700WAGON   - 68072
  76923-A1800WAGON6808 - 71072

ASSY-WELT,BODY SIDE REAR (RED)
  76923-A1900WAGON   -   2
18CLIP-CORNER,WELT
  76925-A5900WAGON   -   4

CLIP-CORNER,WELT(BEIGE)
  76925-A9500WAGON7108 -   4

CLIP-CORNER,WELT(BLACK)
  76925-22900WAGON   -   4

CLIP-CORNER,WELT(BLUE)
  76925-22902WAGON   -   4

CLIP-CORNER,WELT(BROWN)
  76925-22903WAGON   -   4

CLIP-CORNER,WELT(RED)
  76925-22901WAGON   -   4
19PAD WINDSHIELD PILLAR INNER
  76937-21600WAGON   -   2
20PAD CENTER PILLER INNER RH
  76938-21600WAGON   - 68091
21PAD CENTER PILLER INNER LH
  76939-21600WAGON   - 68091
  76939-21600WAGON6810 -   2
22GARNISH-PILLAR,CENTER RH (BEIGE)
  76913-N1700WAGON7108 -   1

GARNISH-PILLAR,CENTER RH (BLACK)
  76913-22001WAGON6808 -   1

GARNISH-PILLAR,CENTER RH (BLUE GREEN)
  76913-21600WAGON   - 68071

GARNISH-PILLAR,CENTER RH (BLUE)
  76913-A4900WAGON7108 -   1

GARNISH-PILLAR,CENTER RH (BROWN)
  76913-21300WAGON   - 68071
  76913-A0600WAGON6808 - 69081
  76913-A5400WAGON6909 - 71071
  76913-N2100WAGON7108 -   1

GARNISH-PILLAR,CENTER RH (RED)
  76913-22000WAGON   -   1
23GARNISH-PILLAR,CENTER LH (BEIGE)
  76914-N1700WAGON7108 -   1

GARNISH-PILLAR,CENTER LH (BLACK)
  76914-22001WAGON7108 -   1

GARNISH-PILLAR,CENTER LH (BLUE)
  76914-A4900WAGON7108 -   1

GARNISH-PILLAR,CENTER LH (BLUEGREEN)
  76914-21600WAGON   - 68071

GARNISH-PILLAR,CENTER LH (BROWN)
  76914-21300WAGON   - 68071
  76914-A0600WAGON6808 - 69081
  76914-A5400WAGON6909 - 71071
  76914-N2100WAGON7108 -   1

GARNISH-PILLAR,CENTER RH (RED)
  76914-22000WAGON   -   1
24GARNISH CENTER PILLAR RH BLACK
  76913-22001WAGON   -   1
25GARNISH CENTER PILLAR LH BLACK
  76914-22001WAGON   -   1
26PLATE KICKING FT RH
  76950-A4100WAGON   -   1
27PLATE-KICKING FR LH
  76951-21600WAGON   - 69051
  76951-A4100WAGON6906 -   1
28SCREW M4X16
  08510-41620WAGON   -   8
29SCREW M4X16
  76959-89900USA   -   8
30PLATE KICKING CENTER RH
  76952-21000WAGON   -   1
31PLATE KICKING CENTER LH
  76953-21000WAGON   -   1
32SCREW M4X16
  08530-41620WAGON   -   2
33SCREW M4X16
  08510-41620WAGON   -   2
34PLATE KICKING RR RH
  76954-21600WAGON   -   1
35PLATE KICKING RR LH
  76955-21600WAGON   -   1
36SCREW M4X16
  08510-41620WAGON   -   4
37SCREW M4X16
  76959-89900USA   -   6

  08530-41620WAGON   -   4
38TRIM-WHEELHOUSE,REAR RH(RED)
  76905-22700WAGON   -   1
39TRIM-WHEELHOUSE,REAR LH(RED)
  76906-22700WAGON   -   1
40TRIM-WHEELHOUSE,REAR RH (BLACK)
  76905-22701WAGON   -   1
41TRIM-WHEELHOUSE,REAR LH (BLACK)
  76906-22701WAGON   -   1
42TRIM-WHEELHOUSE,REAR RH (BLUE GREEN)
  76905-22702WAGON   - 69081

TRIM-WHEELHOUSE,REAR RH (BLUE)
  76905-A5303WAGON6909 -   1
43TRIM-WHEELHOUSE,REAR LH (BLUE GREEN)
  76906-22702WAGON   - 69081

TRIM-WHEELHOUSE,REAR LH (BLUE)
  76906-A5303WAGON6909 -   1
44TRIM-WHEELHOUSE,REAR RH (BROWN)
  76905-22703WAGON   - 68071
  76905-A1800WAGON6808 - 69081
  76905-A5300WAGON6909 - 71071
45TRIM-WHEELHOUSE,REAR LH (BROWN)
  76906-22703WAGON   - 68071
  76906-A1800WAGON6808 - 69081
  76906-A5300WAGON6909 - 71071
46TRIM-WHEELHOUSE,REAR RH (BEIGE)
  76905-A9501WAGON7108 -   1
47TRIM-WHEELHOUSE,REAR LH (BEIGE)
  76906-A9501WAGON7108 -   1
48PAD-WHEELHOUSE,REAR
  76909-22500WAGON   -   2
49RETAINER-REAR WHEEL HOUSE RH RED
  76941-22000WAGON   -   1
50RETAINER-REAR WHEEL HOUSE LH RED
  76942-22000WAGON   -   1
51RETAINER-REAR WHEEL HOUSE RHBLUE GREEN
  76941-21600WAGON   - 68091
52RETAINER-REAR WHEEL HOUSE LHBLUE GREEN
  76942-21600WAGON   - 68091
53RETAINER-REAR WHEEL HOUSE RHBROWN
  76941-21300WAGON   - 68091
  76941-A0600WAGON6810 -   1
54RETAINER-REAR WHEEL HOUSE LHBROWN
  76942-21300WAGON   - 68091
  76942-A0600WAGON6810 -   1
55RETAINER REAR WHEEL HOUSE RH BLACK
  76941-22001WAGON   -   1
56RETAINER REAR WHEEL HOUSE LH BLACK
  76942-22001WAGON   -   1
57SCREW TAPPING
  08510-41620WAGON   -   6
58LEATHER-CENTER PILLER
  76936-21000WAGON   - 68092
  76936-A4900WAGON6910 -   2
59RETAINER-COVER RH
  76948-22500WAGON   -   1
60RETAINER-COVER LH
  76949-22500WAGON   -   1
61MAT-SEAT,REAR SIDE RH
  74918-A3000WAGON6808 - 71071
  74918-N1103WAGON7108 -   1

  74918-26200WAGON CANADA   - 68071

  74918-23400WAGON USA6808 -   1
62MAT-SEAT,REAR SIDE LH
  74919-A3000WAGON6808 - 71071
  74919-N1103WAGON7108 -   1

  74919-26200WAGON CANADA   - 68071

  74919-23400WAGON USA   - 68071
63CARPET-REAR SEAT SIDE RH (RED)
  74918-22500WAGON CANADA   -   1

  74918-23401WAGON USA   -   1
64CARPET-REAR SEAT SIDE LH (RED)
  74919-22500WAGON CANADA   -   1

  74919-23401WAGON USA   -   1
65CARPET REAR SEAT SIDE RH (BLACK)
  74918-22700WAGON CANADA   -   1

  74918-23402WAGON USA   -   1
66CARPET REAR SEAT SIDE LH (BLACK)
  74919-23402WAGON USA   -   1
67CARPET REAR SEAT SIDE RH (BLUE GREEN)
  74918-22501WAGON CANADA   - 68091

  74918-23403WAGON USA   - 68091
68CARPET REAR SEAT SIDE LH (BLUE GREEN)
  74919-22501WAGON CANADA   - 68091

  74919-23403WAGON USA   - 68091
69CARPET REAR SEAT SIDE RH (BROWN)
  74918-22701WAGON CANADA   -   1

  74918-23404WAGON USA   -   1
70CARPET REAR SEAT SIDE LH (BROWN)
  74919-22701WAGON CANADA   -   1

  74919-23404WAGON USA   -   1
71CARPET REAR SEAT SIDE LH (RED)
  74919-A5802OP WPX WPXA6910 -   1
72CARPET REAR SEAT SIDE RH (BLUE)
  74918-A5900OP WAGON6909 - 71071
  74918-N1102OP WAGON7108 -   1
73CARPET REAR SEAT SIDE LH (BLUE)
  74919-A5900OP WAGON6909 - 71071
  74919-N1102OP WAGON7108 -   1
74CARPET REAR SEAT SIDE RH (BLACK)
  74918-A5901OP WPX WPXA6910 -   1
75CARPET REAR SEAT SIDE LH (BLACK)
  74919-A5901OP WPX WPXA6910 -   1
76CARPET REAR SEAT SIDE RH (RED)
  74918-A5902OP WPX WPXA6910 -   1
77CARPET REAR SEAT SIDE LH (RED)
  74919-A5902OP WPX WPXA6910 -   1
78CARPET SEAT REAR SIDE RH (GRAY)
  74918-N1100OP WAGON7108 - 71071
79CARPET SEAT REAR SIDE LH (GRAY)
  74919-N1100OP WAGON7108 -   1
80CARPET SEAT REAR SIDE RH (BROWN)
  74918-N1101OP WAGON7108 -   1
81CARPET SEAT REAR SIDE LH (BROWN)
  74919-N1101OP WAGON7108 -   1
82COVERING FLOOR SIDE FRONT RED
  74910-21300WAGON   -   2

COVERING FLOOR SIDE FRONT RED RH
  74910-21300WAGON   -   1
83COVERING FLOOR SIDE FRONT RED LH
  74911-21300WAGON   -   1
84COVERING FLOOR SIDE FRONT BLACK
  74910-21301WAGON   -   2

COVERING FLOOR SIDE FRONT BLACK RH
  74910-21301WAGON6910 -   1
85COVERING FLOOR SIDE FRONT BLACK LH
  74911-21301WAGON   -   1
86COVERING FLOOR SIDE FRONT BLUE GREEN
  74910-21302WAGON   -   2

COVERING FLOOR SIDE FRONT BLUE GREEN RH
  74910-21302WAGON   - 68091
87COVERING FLOOR SIDE FRONT BLUE GREEN LH
  74911-21302WAGON   - 68091
88COVERING FLOOR SIDE FRONT BROWN
  74910-21303WAGON   -   2

COVERING FLOOR SIDE FRONT BROWN RH
  74910-21303WAGON   - 68091
  74910-A0600WAGON6810 -   1
89COVERING FLOOR SIDE FRONT BROWN LH
  74911-21303WAGON   - 68091
  74911-A0600WAGON6810 -   1
90COVERING FLOOR SIDE REAR RED
  74912-22000WAGON   -   2

COVERING FLOOR SIDE REAR RED RH
  74912-21300WAGON   -   1
91COVERING FLOOR SIDE REAR RED LH
  74913-21300WAGON   -   1
92COVERING FLOOR SIDE REAR BLACK
  74912-21301WAGON   -   2

COVERING FLOOR SIDE REAR BLACK RH
  74912-21301WAGON   -   1
93COVERING FLOOR SIDE REAR BLACK LH
  74913-21301WAGON   -   1
94COVERING FLOOR SIDE REAR BLUE GREEN
  74912-21302WAGON   -   2

COVERING FLOOR SIDE REAR BLUE GREEN RH
  74912-21302WAGON   - 68091
95COVERING FLOOR SIDE REAR BLUE GREEN LH
  74913-21302WAGON   - 68091
96COVERING FLOOR SIDE REAR BROWN
  74912-21303WAGON   -   2

COVERING FLOOR SIDE REAR BROWN RH
  74912-21303WAGON   - 68091
  74912-A0600WAGON6810 -   1
97COVERING FLOOR SIDE REAR BROWN LH
  74913-21303WAGON   - 68091
98COVERING FLOOR SIDE REAR BROWN LH
  74912-A0600WAGON6810 -   1
99COVERING REAR SEAT LOWER RH RED
  74916-22700WAGON CANADA   - 68091
100COVERING REAR SEAT LOWER LH RED
  74917-22700WAGON CANADA   - 68091
101COVERING REAR SEAT LOWER RH BLACK
  74916-22701WAGON CANADA   - 68091
102COVERING REAR SEAT LOWER LH BLACK
  24917-22701WAGON CANADA   - 68091
103COVERING REAR SEAT LOWER RH BLUE GREEN
  74916-22702WAGON CANADA   - 68091
104COVERING REAR SEAT LOWER LH BLUE GREEN
  74917-22702WAGON CANADA   - 68091
105COVERING REAR SEAT LOWER RH BROWN
  74916-22703WAGON CANADA   -   1
106COVERING REAR SEAT LOWER LH BROWN
  74917-22703WAGON CANADA   -   1
107COVERING REAR SEAT LOWER RH RED
  74916-23400WAGON   -   1
108COVERING REAR SEAT LOWER LH RED
  74917-23400WAGON   -   1
109COVERING REAR SEAT LOWER RH BLACK
  74916-23401WAGON   -   1
110COVERING REAR SEAT LOWER LH BLACK
  74917-23401WAGON   -   1
111COVERING REAR SEAT LOWER RH BLUE GREEN
  74916-23402WAGON   - 68091
112COVERING REAR SEAT LOWER LH BLUE GREEN
  74917-23402WAGON USA   - 68091
113COVERING REAR SEAT LOWER RH BROWN
  74916-A3000WAGON6810 -   1

  74916-23403WAGON USA   - 68091
114COVERING REAR SEAT LOWER LH BROWN
  74917-A3000WAGON6810 -   1

  74917-23403WAGON USA   - 68091
115COVER REAR SEAT LOWER RH
  74916-A5900WPX WPXA6910 -   1
116COVER REAR SEAT LOWER LH
  74917-A5900WPX WPXA6910 -   1
117COVER REAR SEAT LOWER RH
  74916-A5901WPX WPXA6910 -   1
118COVER REAR SEAT LOWER LH
  74917-A5901WPX WPXA6910 -   1
RETAINER-COVER RH / RETAINER-COVER LH PAD CENTER PILLER INNER RH / LH PAD WINDSHIELD PILLAR INNER ASSY-WELT,BODY SIDE FRONT SCREW M4X16 CARPET-REAR SEAT SIDE COVERING FLOOR SIDE REAR SCREW TAPPING GARNISH-PILLAR,CENTER SCREW M4X16 PLATE KICKING CENTER RH PLATE KICKING CENTER LH COVERING REAR SEAT LOWER RH RED COVERING REAR SEAT LOWER LH RED COVERING REAR SEAT LOWER LH BLACK COVERING REAR SEAT LOWER RH BROWN COVERING REAR SEAT LOWER LH BROWN COVERING REAR SEAT LOWER RH RED COVERING REAR SEAT LOWER RH BLACK COVERING REAR SEAT LOWER LH BLACK COVERING REAR SEAT LOWER RH BLUE GREEN COVERING REAR SEAT LOWER RH BROWN COVER REAR SEAT LOWER RH COVER REAR SEAT LOWER LH COVER REAR SEAT LOWER RH COVER REAR SEAT LOWER LH COVER BODY SIDE ASSY-WELT,BODY SIDE REAR ASSY-WELT,BODY SIDE CENTER PLATE KICKING FT RH / PLATE-KICKING FR LH COVERING FLOOR SIDE FRONT RETAINER-REAR WHEEL HOUSE PLATE KICKING RR RH / PLATE KICKING RR LH TRIM-WHEELHOUSE,REAR SCREW M4X16 PAD-WHEELHOUSE,REAR COVERING REAR SEAT LOWER RH BLACK COVERING REAR SEAT LOWER RH BLUE GREEN COVERING REAR SEAT LOWER LH BLUE GREEN COVERING REAR SEAT LOWER LH RED COVERING REAR SEAT LOWER LH BLUE GREEN COVERING REAR SEAT LOWER LH BROWN
Copyright(c) 2011 CarPartsManual.com Terms Of Use Privacy Statement
