Datsun 510 Dash Panel (Wagon)

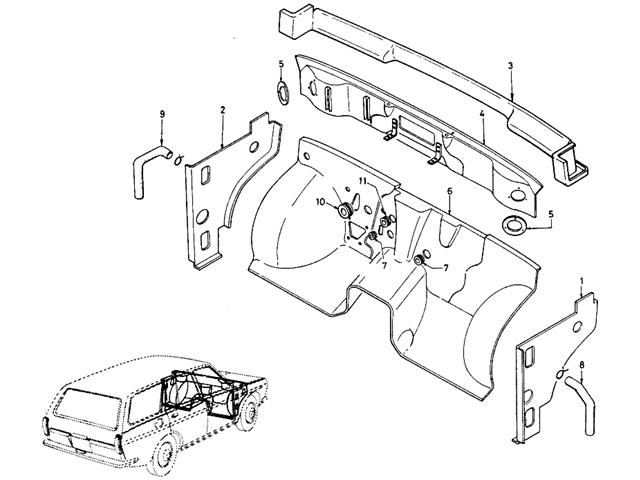

Datsun 510 Parts illustration no. 109-1 Dash Panel (Wagon)

109 -1  Dash Panel (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-PANEL,DASH SIDE RH
  66400-A5900WAGON   - 69081
  66400-A5901WAGON6909 - 71071
  66400-N1100WAGON7108 -   1
2ASSY-PANEL,DASH SIDE LH
  66401-A5900WAGON   - 69081
  66401-A5901WAGON6909 - 71071
  66401-N1100WAGON7108 -   1
3DASH UPPER PANEL ASSY
  67100-21430WAGON   - 68091
  67100-A2230WAGON6808 -   1
  67100-A5430WAGON6808 -   1
  67100-A3030WAGON6810 -   1
4ASSY PANEL AIR BOX
  67150-A0600WAGON6810 -   1
5SEALING AIR BOX
  67159-21000WAGON   -   1
6ASSY-PANEL,DASH LOWER
  67300-N1150WAGON6909 -   1

  67300-A5035WAGON AUTO   -   1

  67300-N1150 WAGON EXC AUTO   -   1
7GROMMET HOLDER
  27035-21000WAGON   -   2
8HOSE DRAIN AIR BOX RH
  67815-21002WAGON   -   1
9HOSE DRAIN AIR BOX LH
  67816-21002WAGON   -   1
10STEERING POST GROMMET
  67810-21001WAGON COLUMN SHIFT   -   1

  67810-A5100WAGON FLOOR SHIFT   -   1
11PLUG RUBBER
  74942-10900WAGON   -   1
ASSY-PANEL,DASH SIDE RH ASSY-PANEL,DASH SIDE LH ASSY-PANEL,DASH LOWER GROMMET HOLDER HOSE DRAIN AIR BOX LH STEERING POST GROMMET PLUG RUBBER DASH UPPER PANEL ASSY ASSY PANEL AIR BOX SEALING AIR BOX GROMMET HOLDER HOSE DRAIN AIR BOX RH SEALING AIR BOX
