Datsun 510 Floor Panel & Fitting (Wagon)

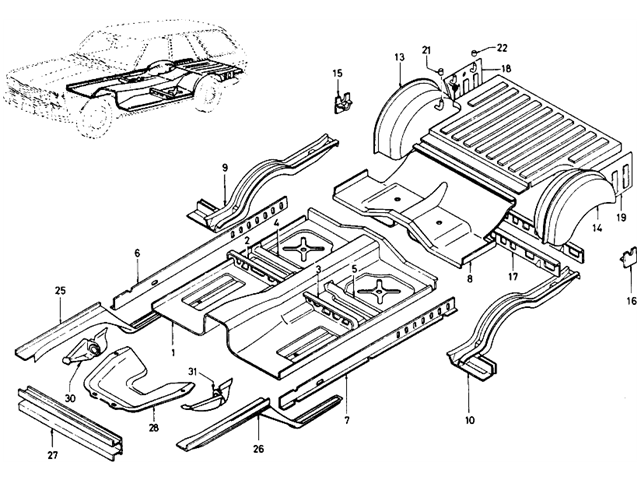

Datsun 510 Parts illustration no. 114-1 Floor Panel & Fitting (Wagon)

114 -1  Floor Panel & Fitting (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-FLOOR,FRONT
  74300-N1105WAGON AUTO FLOOR SHIFT7108 -   1

  74300-23500WAGON AUTO REMOTE CONTROL   -   1
  74300-23501WAGON AUTO REMOTE CONTROL   - 71071
  74300-N1107WAGON AUTO REMOTE CONTROL7108 -   1

  74300-A5900 WAGON FLOOR SHIFT6909 - 71081
  74300-N1106WAGON FLOOR SHIFT7108 -   1
2ASSY MEMBER CROSS 2ND RH
  74330-22900WAGON   -   1
  74330-A1900WAGON   -   1
3ASSY MEMBER CROSS 2ND LH
  74331-22900WAGON   -   1
  74331-A1900WAGON   -   1
4MEMBER FRONT SEAT RISER RH
  74342-21000WAGON   -   1
5MEMBER FRONT SEAT RISER LH
  74343-21000WAGON   -   1
6ASSY FLOOR SIDE RH
  74320-21001WAGON   -   1
7ASSY FLOOR SIDE LH
  74321-21001WAGON   -   1
8ASSY-FLOOR,REAR
  74500-A2950WAGON CRANK   -   1
  74500-A5850WAGON CRANK6909 - 70071

  74500-A3000WAGON EXHAUST   -   1
  74500-A3050WAGON EXHAUST6903 -   1

  74500-A5950WAGON EXHAUST & EVAPO6903 -   1
  74500-A5951WAGON EXHAUST & EVAPO6909 -   1
9ASSY-MEMBER,SIDE REAR RH
  74840-22900WAGON   -   1

  74840-A5900WAGON EXHAUST & EVAPO6907 -   1
10ASSY-MEMBER,SIDE REAR LH
  74841-22900WAGON   -   1
11BRACKET-REAR SPRING REAR
  55205-22900WAGON   -   2
12ASSY MEMBER REAR SHOCK AB MOUNTING
  74530-22900WAGON   -   1
13ASSY-PANEL,REAR WHEEL HOUSE INNER RH
  76750-23400WAGON   -   1

  76750-23400WAGON EXHAUST & EVAPO   -   1
14ASSY-PANEL,REAR WHEEL HOUSE INNER LH
  76751-23400WAGON   -   1
15ASSY-HING,REAR SEAT BACK (RH)
  88801-23400WAGON   -   1
16ASSY-HING,REAR SEAT BACK (LH)
  88802-23400WAGON   -   1
17ASSY CROSS MEMBER REAR
  74855-22900WAGON CRANK   -   1

  74855-23400WAGON EXHAUST   - 69061

  74855-A5900WAGON EXHAUST & EVAPO6907 -   1
18ASSY-PANEL,INSIDE REAR RH
  76350-22900WAGON   -   1

  76350-A5900WAGON EXHAUST & EVAPO6907 -   1
19ASSY-PANEL,INSIDE REAR LH
  76353-22900WAGON   -   1
20GROMMET FRONT FLOOR,FLOOR
  74720-03200WAGON EXHAUST & EVAPO6907 -   1
21CAP BREATHER TUBE A
  76890-A5900WAGON EXHAUST & EVAPO6910 -   1
22CAP BREATHER, TUBE B
  76891-A5900WAGON EXHAUST & EVAPO6910 -   1
23SUPP CANISTER, TUBE
  76229-A5900WAGON EXHAUST & EVAPO6907 -   1
24SCREW W/PLATE
  74613-A5900WAGON EXHAUST & EVAPO6907 -   1
25ASSY MEMBER SIDE FRONT RH
  74801-23300WAGON   -   1
26ASSY MEMBER SIDE FRONT LH
  74802-23300WAGON   -   1
27ASSY-MEMBER,CROSS 1ST
  74820-N2400WAGON   -   1
  74820-N1600WAGON7008 -   1
28BOARD SPLASH SHIELD
  74891-21000WAGON   -   1
29ASH TRAY FLOOR (NOT ADOPTED)
  96503-23100WAGON   -   1
30ASSY-BRACKET,TENSION ROD RH
  74860-22900WAGON   - 70071
  74860-H2500WAGON7008 -   1
31ASSY-BRACKET,TENSION ROD LH
  74861-22900WAGON   - 70071
  74861-H2500WAGON7008 -   1
ASSY-FLOOR,FRONT ASSY MEMBER CROSS 2ND LH MEMBER FRONT SEAT RISER RH ASSY FLOOR SIDE RH ASSY-FLOOR,REAR ASSY-PANEL,REAR WHEEL HOUSE INNER LH ASSY-HING,REAR SEAT BACK (RH) CAP BREATHER TUBE A BOARD SPLASH SHIELD ASSY MEMBER SIDE FRONT LH ASSY-BRACKET,TENSION ROD LH ASSY MEMBER CROSS 2ND RH MEMBER FRONT SEAT RISER LH ASSY FLOOR SIDE LH ASSY-MEMBER,SIDE REAR RH ASSY-MEMBER,SIDE REAR LH ASSY-PANEL,REAR WHEEL HOUSE INNER RH ASSY-HING,REAR SEAT BACK (LH) ASSY CROSS MEMBER REAR ASSY-PANEL,INSIDE REAR RH ASSY-PANEL,INSIDE REAR LH CAP BREATHER, TUBE B ASSY MEMBER SIDE FRONT RH ASSY-MEMBER,CROSS 1ST ASSY-BRACKET,TENSION ROD RH
