Datsun 510 Front Door (Wagon)

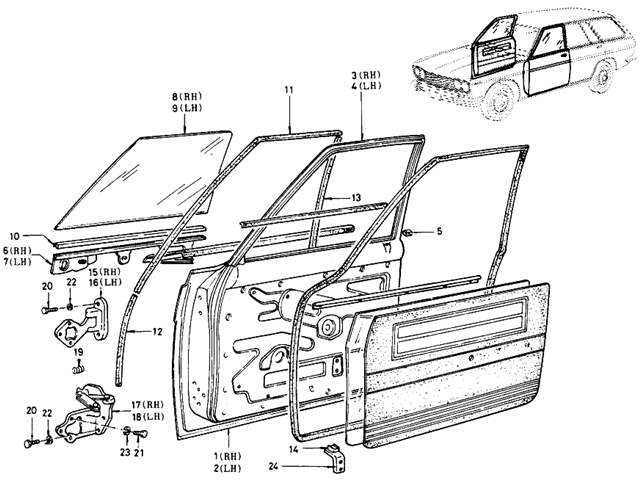

Datsun 510 Parts illustration no. 118-1 Front Door (Wagon)

118 -1  Front Door (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-PANEL,FRONT DOOR RH
  80100-23401WAGON   -   1
2ASSY-PANEL,FRONT DOOR LH
  80101-23401WAGON   -   1
3ASSY-SASH FRONT DOOR RH
  80210-23401WAGON   -   1
4ASSY-SASH FRONT DOOR LH
  80211-23401WAGON   -   1
5FILLER DOOR SASH
  80885-21000WAGON   -   4
  80885-A8900WAGON7108 -   4
6ASSY CHANNEL GLASS F/DOOR BOTTOM RH
  80302-23102WAGON   -   1
7ASSY CHANNEL GLASS F/DOOR BOTTOM LH
  80303-23102WAGON   -   1
8GLASS WINDOW F/DOOR RH T=5.0 (TOUGHENED ANTI SUN)
  80311-22501OP WAGON   -   1

GLASS WINDOW F/DOOR RH T=5.0 (TOUGHENED)
  80311-23400WAGON   -   1
9GLASS WINDOW F/DOOR LH T=5.0 (TOUGHENED ANTI SUN)
  80312-22501OP WAGON   -   1

GLASS WINDOW F/DOOR LH T=5.0 (TOUGHENED)
  80312-23400WAGON   -   1
10RUBBER GLAZING F/DOOR WINDOW
  80317-23102WAGON   -   2
11RUBBER GLASS RUN E
  80338-22901WAGON   -   2
12RUBBER GLASS RUN F
  80339-21004WAGON   -   2
13RUBBER GLASS RUN C
  80337-22902WAGON   -   2
14CUSHION WINDOW GLASS
  80317-00800WAGON   -   2
15ASSY HINGE FRONT DOOR UPPER RH
  80400-21002WAGON   -   1
16ASSY HINGE FRONT DOOR UPPER LH
  80401-21002WAGON   -   1
17ASSY HINGE FRONT DOOR LOWER RH
  80420-21004 WAGON   -   1
18ASSY HINGE FRONT DOOR LOWER LH
  80421-21004 WAGON   -   1
19SPRING HINGE DOOR LOWER
  80422-73001WAGON   -   2
20BOLT HEX POINTED HEAD M8X1.25
  08140-81610WAGON   -   12
21BOLT HEX POINTED HEAD M8X1.25
  08140-82010WAGON   -   10
22PLAIN WASHER
  77740-89911WAGON   -   12
23SPRING LOCK WASHER
  08915-1381AWAGON   -   22
24RUBBER-GLASS SUPPORT FRONT
  80136-22900WAGON   -   2
ASSY-PANEL,FRONT DOOR LH ASSY CHANNEL GLASS F/DOOR BOTTOM LH RUBBER GLASS RUN F RUBBER GLASS RUN C ASSY HINGE FRONT DOOR UPPER RH ASSY HINGE FRONT DOOR LOWER RH BOLT HEX POINTED HEAD M8X1.25 BOLT HEX POINTED HEAD M8X1.25 SPRING LOCK WASHER ASSY-PANEL,FRONT DOOR RH ASSY-SASH FRONT DOOR RH ASSY-SASH FRONT DOOR LH FILLER DOOR SASH ASSY CHANNEL GLASS F/DOOR BOTTOM RH GLASS WINDOW F/DOOR RH GLASS WINDOW F/DOOR LH RUBBER GLAZING F/DOOR WINDOW RUBBER GLASS RUN E CUSHION WINDOW GLASS ASSY HINGE FRONT DOOR UPPER LH ASSY HINGE FRONT DOOR LOWER LH SPRING HINGE DOOR LOWER PLAIN WASHER RUBBER-GLASS SUPPORT FRONT BOLT HEX POINTED HEAD M8X1.25 PLAIN WASHER
