Datsun 510 Front Outside (Wagon)

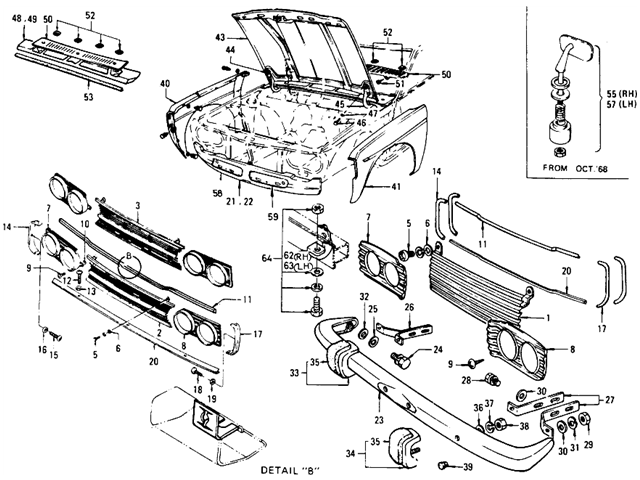

Datsun 510 Parts illustration no. 106-1 Front Outside (Wagon)

106 -1  Front Outside (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1GRILLE RADIATOR
  62300-21600WAGON   - 68091
  62300-A0800WAGON6810 -   1
2GRILLE RADIATOR
  62301-A0800WAGON   - 69691
3GRILLE RADIATOR
  62310-A8700WAGON6910 -   1
4BRACKET-RADIATOR GRILLE
  62320-21600WAGON   -   3
5MACHINE SCREW
  08360-61614WAGON   -   4
6WASHER PLAIN
  08915-4361AWAGON   -   4
7FINISHER HEAD LAMP RH
  62400-21000WAGON   - 68091
  62400-A0600WAGON6810 -   1
8FINISHER HEAD LAMP LH
  62401-21000WAGON   - 68091
  62401-A0600WAGON6810 -   1
9SCREW TAPPING
  08530-41220WAGON   -   8
10NUT SPRING
  08963-10410WAGON   -   4
11HOOD TOP MOULDING
  62450-N1600WAGON   -   1

HOOD TOP MOULDING RETAINER
  62454-21000WAGON   -   1
12PAN-HEAD TAPPING SCREW M3.5
  08510-70812WAGON   -   7
13SPRING WASHER M3.5
  08915-43710WAGON   -   7
14MOULDING FRONT OPENING SIDE RH
  62456-21000WAGON   - 69091
  62456-N1600WAGON6910 -   1
15PAN HEAD SCREW TYPE M3.5
  08510-70812WAGON   -   3
16SPRING LOCK WASHER M3.5
  08915-43710WAGON   -   3
17MOULDING FRONT OPENING SIDE LH
  62457-21000WAGON   - 69091
  62457-N1600WAGON6910 -   1
18PAN HEAD SCREW TYPE M3.5
  08510-70812WAGON   -   3
19SPRING-LOCK WASHER M3.5
  08915-43710WAGON   -   3
20MOULDING FRONT OPENING CENTER
  62460-A4900WAGON6910 -   1

  62460-21000WAGON CANADA   - 69091
21ASSY FRONT APRON
  62600-21030WAGON   -   1
22ASSY FRONT APRON
  62610-A4930WAGON6910 -   1
23ASSY BUMPER FRONT
  62650-21000WAGON   -   1
24HEX BOLT WITH S/LOCK WASHER M8 X 1.25
  08120-8201EWAGON   -   2
25PLAIN WASHER
  08915-4381AWAGON   -   2
26ASSY-STAY FRONT BUMPER RH
  62671-21001WAGON   -   1
27ASSY-STAY FRONT BUMPER LH
  62672-21001WAGON   -   1
28HEX BOLT WITH S/LOCK WASHER M10X1.25
  08114-03062WAGON   -   4
29HEX NUT M10X1.25
  08911-1401AWAGON   -   4
30PLAIN WASHER
  08915-5401AWAGON   -   8
31SPRING LOCK WASHER M10 #2
  08915-2401AWAGON   -   4
32SHIM BRACKET BUMPER
  62678-21000WAGON   -   2
33ASSY OVERRIDER FRONT BUMPER RH
  62660-21000WAGON   -   1
34ASSY OVERRIDER FRONT BUMPER LH
  62661-21000WAGON CANADA   -   1
  62671-N0400WAGON CANADA7008 -   1
35RUBBER-OVERRIDER
  62670-A8900WAGON   -   2
  62670-A8600WAGON7008 - 71082
36PLAIN WASHER TYPE 1M10
  08915-4405AWAGON CANADA   -   2
37SPRING LOCK WASHER TYPE 2M10
  08915-2401AWAGON CANADA   -   2
38HEX NUT M10X1.25
  08911-1401AWAGON CANADA   -   2
39PLUG BUMPER
  62689-21000WAGON USA   -   2
40ASSY FRONT FENDER RH
  63100-23400WAGON6810 -   1
  63100-A5530WAGON6910 -   1

  63100-21030WAGON CANADA   - 68091
41ASSY FRONT FENDER LH
  63101-23400WAGON6810 -   1
  63101-A5530WAGON6910 -   1

  63101-21030WAGON CANADA   - 68091
42NUT-RETAINER,FENDER
  63140-78500WAGON   -   4
43ASSY HOOD
  65110-21031WAGON   - 68691
  65110-A0630WAGON6810 -   1
44ASSY HOOD HINGE RH
  65410-21001WAGON   - 68091
  65410-A0601WAGON6810 -   1
45ASSY HOOD HINGE LH
  65411-21001WAGON   - 68091
  65411-A0601WAGON6810 -   1
46BOLT M6
  08360-6121BWAGON   - 68078
  34925-J1700WAGON6808 -   8
47WASHER M6
  77740-89909WAGON   -   8
48PANEL COWL TOP
  66300-21030WAGON   -   1
49PANEL COWL TOP
  66311-21030WAGON   - 69091
  66311-A4930WAGON   -   1
50GRILLE COWL TOP
  66330-21000WAGON   - 68091
  66330-A2200WAGON6810 -   1
51PAN HEAD TAPPING SCREW TYPE 2 4X18X8
  08513-40812WAGON   -   3
52CAP COWL GRILLE CLIP
  66312-10600WAGON   - 68094
  66312-A4900WAGON   -   4
53RUBBER SEALING HOOD REAR
  66321-A1900WAGON   -   1
54PLUG 30
  77700-89920WAGON   -   1
55MIRROR OUTSIDE RH
  96301-21602OP WAGON CANADA   -   1
56GASKET-MIRROR
  96303-A0600OP WAGON   -   2
57MIRROR OUTSIDE
  96302-K2450OP WAGON   -   1
58COVER-APRON RH
  62814-A9600OP WAGON (WARM AREA)7108 -   1
59COVER-APRON LH
  62815-A9600OP WAGON (WARM AREA)7108 -   1
60SCREW WITH LOCK WASHER
  08510-51012OP WAGON (WARM AREA)7108 -   12
61WASHER-LOCK
  08915-13510OP WAGON (WARM AREA)7108 -   12
62HOOK-FRONT,TIE DOWN RH
  74826-N2200WAGON7203 -   1
63HOOK-FRONT,TIE DOWN LH
  74827-N2200WAGON7203 -   1
64BOLT WITH LOCK & PLAIN WASHER
  08127-0301G WAGON   -   4
