Datsun 510 Rear Door (Wagon)

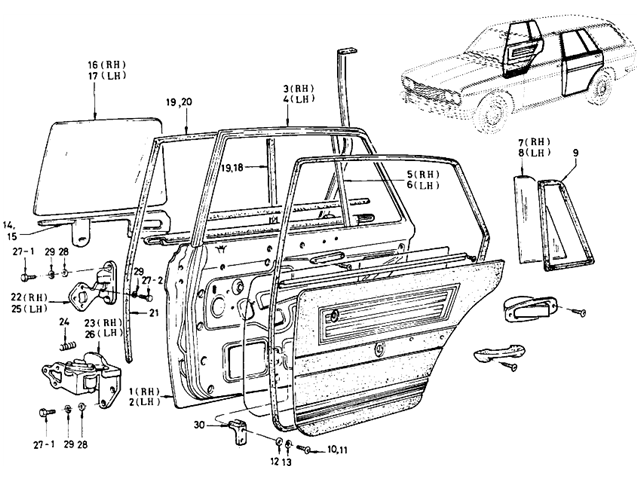

Datsun 510 Parts illustration no. 121-1 Rear Door (Wagon)

121 -1  Rear Door (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY PANEL REAR DOOR RH WITH ASH TRAY
  82100-22901WAGON   -   1
2ASSY PANEL REAR DOOR LH WITH ASH TRAY
  82101-22901WAGON   -   1
3ASSY-SASH REAR DOOR RH
  82210-22901WAGON   -   1
4ASSY-SASH REAR DOOR LH
  82211-22901WAGON   -   1
5ASSY SASH CENTER REAR DOOR RH
  82220-22900WAGON   - 68091
  82220-A5300WAGON6810 -   1
6ASSY SASH CENTER REAR DOOR LH
  82221-22900WAGON   - 69091
  82221-A5300WAGON6910 -   1
7GLASS-PARTITION,REAR DOOR RH T=5.0 (TOUGHEND ANTI SUN)
  82254-22500OP WAGON   -   1

GLASS-PARTITION,REAR DOOR RH T=5.0 (TOUGHEND)
  82254-22900WAGON   -   1
8GLASS-PARTITION,REAR DOOR LH T=5.0 (TOUGHEND ANTI SUN)
  82255-22500OP WAGON   -   1

GLASS-PARTITION,REAR DOOR LH T=5.0 (TOUGHEND)
  82255-22900WAGON   -   1
9WEATHER STRIP PARTITION REAR DOOR
  82241-22900WAGON   -   2
10SCREW MACHINE M4X0.7
  08320-40610WAGON   -   4
11SCREW MACHINE M6X1.0X10
  08410-61012WAGON   -   2
12WASHER PLAIN M6
  08915-4361AWAGON   -   2
13WASHER SPRING M6
  08915-1361AWAGON   -   2
14ASSY CHANNEL GLASS REAR DOOR WINDOW RH
  82302-21000WAGON   - 68091
  82302-A0600WAGON6810 -   1
15ASSY CHANNEL GLASS REAR DOOR WINDOW LH
  82303-21000WAGON   -   1
  82303-A0600WAGON6810 -   1
16GLASS WINDOW REAR DOOR RH T=5.0 (TOUGHENED ANTI SUN)
  82311-22500OP WAGON   -   1

GLASS WINDOW REAR DOOR RH T=5.0 (TOUGHENED)
  82311-22900WAGON   -   1
17GLASS WINDOW REAR DOOR LH T=5.0 (TOUGHENED ANTI SUN)
  82312-22500OP WAGON   -   1

GLASS WINDOW REAR DOOR LH T=5.0 (TOUGHENED)
  82312-22900WAGON   -   1
18RUBBER GLASS RUN A
  82335-22901WAGON   -   2
19RUBBER GLASS RUN B
  82338-22901WAGON   -   2
20RUBBER GLASS RUN B
  82336-22901WAGON   -   2
21RUBBER GLASS RUN C
  80337-22902WAGON   -   2
22ASSY HINGE REAR DOOR UPPER RH
  82400-21002WAGON   -   1
23ASSY HINGE REAR DOOR LOWER RH
  80420-21004 WAGON   -   1
24SPRING HINGE DOOR LOWER
  80422-73001WAGON   -   1
25ASSY HINGE REAR DOOR UPPER LH
  82401-21002WAGON   -   1
26ASSY HINGE REAR DOOR LOWER LH
  80421-21004 WAGON   -   1
27BOLT HEX POINTED HEAD M8X1.25
  08140-81610WAGON   -   12
  08140-82010WAGON   -   12
28PLAIN WASHER M8
  77740-89911WAGON   -   12
29SPRING LOCK WASHER M8
  08915-1381AWAGON   -   22
30RUBBER-GLASS SUPPOR REAR
  80137-22900WAGON   -   2
ASSY CHANNEL GLASS REAR DOOR WINDOW LH BOLT HEX POINTED HEAD M8X1.25 ASSY HINGE REAR DOOR UPPER LH BOLT HEX POINTED HEAD M8X1.25 SPRING LOCK WASHER M8 PLAIN WASHER M8 ASSY PANEL REAR DOOR LH WITH ASH TRAY RUBBER-GLASS SUPPOR REAR RUBBER GLASS RUN C SPRING LOCK WASHER M8 WASHER PLAIN M6 SCREW MACHINE M4X0.7 / SCREW MACHINE M6X1.0X10 RUBBER GLASS RUN B RUBBER GLASS RUN B ASSY-SASH REAR DOOR RH ASSY-SASH REAR DOOR LH ASSY SASH CENTER REAR DOOR RH GLASS WINDOW REAR DOOR RH T=5.0 (TOUGHENED) GLASS WINDOW REAR DOOR LH T=5.0 (TOUGHENED) ASSY CHANNEL GLASS REAR DOOR WINDOW RH SPRING LOCK WASHER M8 PLAIN WASHER M8 ASSY HINGE REAR DOOR UPPER RH SPRING HINGE DOOR LOWER ASSY HINGE REAR DOOR LOWER RH ASSY HINGE REAR DOOR LOWER LH ASSY PANEL REAR DOOR RH WITH ASH TRAY BOLT HEX POINTED HEAD M8X1.25 WASHER SPRING M6 RUBBER GLASS RUN B RUBBER GLASS RUN A ASSY SASH CENTER REAR DOOR LH GLASS-PARTITION,REAR DOOR RH T=5.0 (TOUGHEND) GLASS-PARTITION,REAR DOOR LH T=5.0 (TOUGHEND) WEATHER STRIP PARTITION REAR DOOR
