Datsun 510 Rear Seat (Wagon)

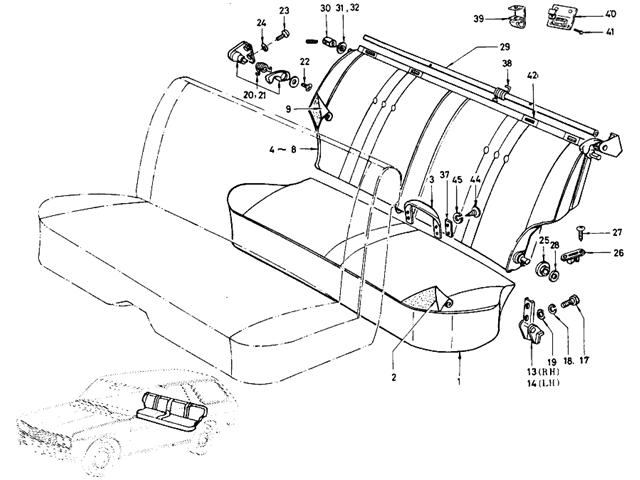

Datsun 510 Parts illustration no. 128-1 Rear Seat (Wagon)

128 -1  Rear Seat (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-CUSHION,REAR SEAT (BLACK)
  88300-A3001WAGON6808 - 69081
  88300-A5900WAGON6909 - 71071
  88300-N1100WAGON7108 - 71121
  88300-N1110WAGON7201 -   1

  88300-22511WAGON CANADA   - 68071

  88300-23405WAGON USA   - 68071

ASSY-CUSHION,REAR SEAT (BLUE)
  88300-23406WAGON   - 68081
  88300-A5902WAGON6909 - 71071
  88300-N1103WAGON7108 -   1
  88300-N1113WAGON7201 -   1

  88300-22512WAGON CANADA   - 68091

ASSY-CUSHION,REAR SEAT (BROWN)
  88300-23407WAGON   - 68071
  88300-A3002WAGON6808 - 69081
  88300-A5901WAGON6909 - 71071
  88300-N1101WAGON7108 - 71121
  88300-N1111WAGON7201 -   1

  88300-22513WAGON CANADA   - 68091

ASSY-CUSHION,REAR SEAT (RED)
  88300-A3000WAGON6808 - 69081
  88300-A5903WAGON6909 - 71071
  88300-N1102WAGON7108 - 71121
  88300-N1112WAGON7201 -   1

  88300-22510WAGON CANADA   - 68071

  88300-23404WAGON USA   -   1
2CUSHION-TRIM,REAR SEAT (BLACK)
  88320-A3001WAGON6808 - 69081
  88320-A5900WAGON6909 - 71071

CUSHION-TRIM,REAR SEAT (BROWN)
  88320-A3002WAGON6808 - 69081
  88320-A5901WAGON6909 - 71071
  88320-N1101WAGON7108 - 71121

TRIM-CUSHION,REAR SEAT (BLACK)
  88320-23401WAGON   -   1
  88320-N1100WAGON7108 - 71121
  88320-N1110WAGON7201 -   1

  88320-23401WAGON CANADA   - 68091

TRIM-CUSHION,REAR SEAT (BLUE)
  88320-23402WAGON   -   1
  88320-A5902WAGON6909 - 71071
  88320-N1103WAGON7108 - 71121
  88320-N1113WAGON7201 -   1

TRIM-CUSHION,REAR SEAT (BROWN)
  88320-23403WAGON   -   1
  88320-N1111WAGON7201 -   1

TRIM-CUSHION,REAR SEAT (RED)
  88320-23400WAGON   -   1
  88320-A3000WAGON6808 - 71071
  88320-N1102WAGON7108 - 71121
  88320-N1112WAGON7201 -   1

  88320-A5903WPX WPXA6910 -   1
3BAND-CUSHION,REAR SEAT (BLACK)
  88325-A3001WAGON6910 -   1

  88325-23401WAGON USA   - 68091

BAND-CUSHION,REAR SEAT (BLUE)
  88325-22512WAGON CANADA   - 68091

  88325-23402WAGON USA   -   1

  88325-A5901WPX WPXA6910 -   1

BAND-CUSHION,REAR SEAT (BROWN)
  88325-A5900WAGON6909 - 71071
  88325-N1100WAGON7108 -   1

  88325-22513WAGON CANADA   - 68091

  88325-23403WAGON USA   -   1

BAND-CUSHION,REAR SEAT (RED)
  88325-23400WAGON USA   -   1
4ASSY-FRAME,REAR SEAT BACK (RED)
  88600-22510WAGON CANADA   - 68091
5ASSY-FRAME,REAR SEAT BACK (RED)
  88600-23400WAGON   - 68071
  88600-A3000WAGON6808 - 69081
6ASSY-FRAME,REAR SEAT BACK (BLUE)
  88600-A5902WAGON6909 - 71071
  88600-N1103WAGON7108 - 71121
  88600-N1113WAGON7201 -   1

  88600-22512WAGON CANADA   - 68071

  88600-23402WAGON USA   - 68071
7ASSY-FRAME,REAR SEAT BACK (BROWN)
  88600-A3002WAGON6808 -   1
  88600-A5901WAGON6909 - 71071
  88600-N1101WAGON7108 - 71121
  88600-N1111WAGON7201 -   1

  88600-22513WAGON CANADA   - 68071

  88600-23403WAGON USA   - 68071
8ASSY-FRAME,REAR SEAT BACK (BLACK)
  88600-A3001WAGON6808 - 69081
  88600-A5900WAGON6909 - 71071
  88600-N1100WAGON7108 - 71121
  88600-N1110WAGON7201 -   1

  88600-22511WAGON CANADA   - 68071

  88600-23401WAGON USA   - 68071
9TRIM-BACK,REAR SEAT (BLACK)
  88624-A3002WAGON6808 - 69081
  88624-A5900WAGON6909 - 71071
  88624-N1100WAGON7108 - 71121
  88624-N1110WAGON7201 -   1

  88624-22511WAGON CANADA   - 68071

  88624-23401WAGON USA   - 68071

TRIM-BACK,REAR SEAT (BLUE)
  88624-A5902WAGON6909 - 71071
  88624-N1103WAGON7108 - 71121
  88624-N1113WAGON7201 -   1

  88624-22512WAGON CANADA   - 68071

  88624-23402WAGON USA   - 68071

TRIM-BACK,REAR SEAT (BROWN)
  88624-A3001WAGON6808 - 69081
  88624-A5901WAGON6909 - 71071
  88624-N1101WAGON7108 - 71121
  88624-N1111WAGON7201 -   1

  88624-22513WAGON CANADA   - 68071

  88624-23403WAGON USA   - 68071

TRIM-BACK,REAR SEAT (RED)
  88624-A3000WAGON6808 - 69081
  88624-A5903WAGON6909 - 71071
  88624-N1102WAGON7108 - 71121
  88624-N1112WAGON7201 -   1

  88624-22510WAGON CANADA   - 68071

  88624-23400WAGON USA   - 68071
10FINISHER-TRIM,REAR SEAT BACK (BEIGE)
  88670-N2400WAGON7108 -   1

FINISHER-TRIM,REAR SEAT BACK (BLACK)
  88670-A1610WAGON6808 -   1

FINISHER-TRIM,REAR SEAT BACK (BROWN)
  88670-A1611WAGON6808 - 69081
  88670-A5800WAGON6909 - 71071

FINISHER-TRIM,REAR SEAT BACK (RED)
  88670-A1900WAGON6808 -   1
11ORNAMENT SEAT BACK
  86607-A2000WAGON   -   7
12NUT SPRING TO FIX ORNAMENT TO BACK
  86608-A2000WAGON   -   4
13ASSY HINGE REAR SEAT CUSHION RH
  88850-23400WAGON   - 68091
  88850-A3000WAGON6810 -   1
14ASSY HINGE REAR SEAT CUSHION LH
  88851-23400WAGON   - 68091
  88851-A3000WAGON6810 -   1
15HINGE-SEAT BACK RH
  88801-23400WAGON   -   1
16HINGE-SEAT BACK LH
  88802-23400WAGON   -   1
17HEXAGON BOLT
  31139-49006WAGON   -   6
18WASHER SPRING
  08915-2381AWAGON   -   6
19WASHER PLAIN
  08915-5361AWAGON   -   6
20ASSY-CATCHER REAR SEAT BACK RH
  88811-23400WAGON   - 70071
  88811-N1100WAGON7008 -   1
21ASSY-CATCHER REAR SEAT BACK LH
  88812-23400WAGON   - 70071
  88812-N1100WAGON7008 -   1
22SCREW MACHINE
  08330-40810WAGON   -   1
23SCREW MACHINE
  08320-51220WAGON   -   3
24WASHER TOOTH
  08916-43510WAGON   -   3
25BUSH HINGE R/S BACK
  88803-23400WAGON   -   2
26CAP-HINGE REAR SEAT
  88809-23400WAGON   -   2
27SCREW MACHINE
  08360-62012 WAGON   -   4
28WASHER-HINGE,R/S BACK,NYLON
  88851-19700WAGON   -   2
29PIPE-LOCK,REAR SEAT BACK
  88871-A3000WAGON6810 -   1

  88871-23401WAGON USA   - 68091
30CATCHER-LOCK
  88872-23401WAGON   -   2

  88872-22501WAGON CANADA   - 68092
31BUSH-LOCK CATCHER
  88873-22900WAGON USA   - 68092

BUSH-LOCK CATCHER RH
  88873-A1900WAGON6810 -   1
32BUSH-LOCK CATCHER LH
  88879-A1900WAGON6810 -   1
33ASSY-CATCHER,REAR SEAT CUSHION
  88860-A5901WPX WPXA   -   1

ASSY-CATCHER,REAR SEAT CUSHION (BLACK)
  88860-A3002WAGON6810 -   1

  88860-23401WAGON USA   - 68091

ASSY-CATCHER,REAR SEAT CUSHION (BLUE)
  88860-23402WAGON USA   - 68091

ASSY-CATCHER,REAR SEAT CUSHION (BROWN)
  88860-A3001WAGON6810 -   1
  88860-A5900WAGON6909 - 71071
  88860-N1100WAGON7108 -   1

  88860-23403WAGON USA   - 68091

ASSY-CATCHER,REAR SEAT CUSHION (RED)
  88860-A3000WAGON6810 -   1

  88860-23400WAGON USA   - 68091
34PLATE-GUIDE CUSHION
  88861-23400WAGON USA   -   1
35BRACKET-CATCHER CUSHION
  88880-A3000WAGON6810 -   1

  88880-23400WAGON USA   - 68090
36CAP-CATCHER (NYLON)
  88832-22900WAGON   -   2
37RUBBER-SUPPORT R/S CUSHION
  88827-22900WAGON   -   2
38SPRING-LOCK
  88874-22900WAGON   -   1
39LEVER-LOCK
  88875-22500WAGON   -   1
40COVER-LOCK
  88876-22900WAGON   -   1
41BUSHING-SUPPORT
  88845-22910WAGON   - 68092

SCREW TO FIX COVER
  08320-51010WAGON   -   4
42BUSHING-SUPPORT
  88845-A1900WAGON6810 -   2
43BRACKET-BAND,REAR SEATCUSHION
  88891-22900WAGON   -   2
44SCREW-TAPPING FIXING BAND
  08520-31010WAGON   -   4
45CLIP-TRIM COVER
  88861-A5300WAGON6910 -   2

WASHER-LOCK FIXING BAND
  08915-80310WAGON   -   4
ASSY-CUSHION,REAR SEAT BAND-CUSHION,REAR SEAT ASSY-FRAME,REAR SEAT BACK ASSY HINGE REAR SEAT CUSHION RH ASSY HINGE REAR SEAT CUSHION LH HEXAGON BOLT WASHER SPRING SCREW MACHINE SCREW MACHINE BUSHING-SUPPORT CUSHION-TRIM,REAR SEAT TRIM-BACK,REAR SEAT WASHER PLAIN ASSY-CATCHER REAR SEAT BACK RH / ASSY-CATCHER REAR SEAT BACK LH SCREW MACHINE WASHER TOOTH BUSH HINGE R/S BACK CAP-HINGE REAR SEAT WASHER-HINGE,R/S BACK,NYLON PIPE-LOCK,REAR SEAT BACK CATCHER-LOCK BUSH-LOCK CATCHER RH BUSH-LOCK CATCHER LH RUBBER-SUPPORT R/S CUSHION SPRING-LOCK LEVER-LOCK COVER-LOCK BUSHING-SUPPORT / SCREW TO FIX COVER SCREW-TAPPING FIXING BAND CLIP-TRIM COVER / WASHER-LOCK FIXING BAND
