Datsun 510 Separate Type Front Seat (Wagon)

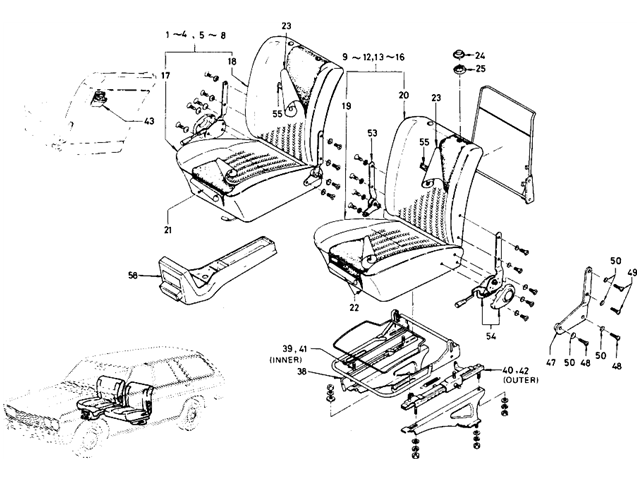

Datsun 510 Parts illustration no. 127-1 Separate Type Front Seat (Wagon)

127 -1  Separate Type Front Seat (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-SEAT,RH (RED)
  87000-A2600WAGON6808 - 69031
  H7000-A2600WAGON6904 - 69081
  87000-A5623WAGON6909 - 70071
  87000-N1113WAGON7008 -   1

  87000-21104WAGON CANADA   - 68071

  87000-23100WAGON USA   - 68071
2ASSY-SEAT,RH (BLUE)
  87000-A5622WAGON6909 - 70071
  87000-N1112WAGON7008 -   1

  87000-21106WAGON CANADA   - 68071

  87000-23102WAGON USA   - 68071
3ASSY-SEAT,RH (BROWN)
  87000-A2602WAGON6808 - 69031
  H7000-A2602WAGON6904 - 69081
  87000-A5621WAGON6909 - 70071
  87000-N1111WAGON7008 -   1

  87000-21107WAGON CANADA   - 68071

  87000-23103WAGON USA   - 68071
4ASSY-SEAT,RH (BLACK)
  87000-A2601WAGON6808 - 69031
  H7000-A2601WAGON6904 - 69071
  87000-A5620WAGON6908 - 70071
  87000-N1110WAGON7008 -   1

  87000-21105WAGON CANADA   - 68071

  87000-23101WAGON USA   - 68071
5ASSY-SEAT,RECLINING RH (BLACK)
  87000-A5630WAGON6909 - 70071
  87000-N1100WAGON7008 - 71071
  87000-N2700WAGON7108 -   1
6ASSY-SEAT,RECLINING RH (BROWN)
  87000-A5631WAGON6909 - 70071
  87000-N1101WAGON7008 - 71071
  87000-N2701WAGON7108 -   1
7ASSY-SEAT,RECLINING RH (BLUE)
  87000-A5632WAGON6909 - 70071
  87000-N1102WAGON7008 - 71071
  87000-N2703WAGON7108 -   1
8ASSY-SEAT,RECLINING RH (RED)
  87000-A5633WAGON FLOOR SHIFT6909 - 70071
  87000-N1103WAGON FLOOR SHIFT7008 - 71071
  87000-N2702WAGON FLOOR SHIFT7108 -   1
9ASSY-SEAT,LH (RED)
  87050-A2600WAGON6808 - 69031
  H7050-A2600WAGON6904 - 69081
  87050-A5623WAGON6909 - 70071
  87050-N1113WAGON7008 -   1

  87050-21104WAGON CANADA   - 68071

  87050-23100WAGON USA   - 68071
10ASSY-SEAT,LH (BLUE)
  87050-A5622WAGON6809 - 70071
  87050-N1112WAGON7008 -   1

  87050-21106WAGON CANADA   - 68071

  87050-23102WAGON USA   - 68071
11ASSY-SEAT,LH (BROWN)
  87050-A2602WAGON6808 - 69031
  H7050-A2602WAGON6904 - 69081
  87050-A5621WAGON6909 - 70071
  87050-N1111WAGON7008 - 71071
  87050-N2701WAGON7108 -   1

  87050-21107WAGON CANADA   - 68071

  87050-23103WAGON USA   - 68071
12ASSY-SEAT,LH (BLACK)
  87050-A2601WAGON6808 - 69031
  H7050-A2601WAGON6904 - 70071
  87050-A5620WAGON6909 - 70071
  87050-N1110WAGON7008 -   1

  87050-21105WAGON CANADA   - 68071

  87050-23101WAGON USA   - 68071
13ASSY-SEAT,RECLINING LH (BLACK)
  87050-A5630WAGON6909 - 70071
  87050-N1100WAGON7008 - 71071
  87050-N2700WAGON7108 -   1
14ASSY-SEAT,RECLINING LH (BROWN)
  87050-A5631WAGON6909 - 70071
  87050-N1101WAGON7008 -   1
15ASSY-SEAT,RECLINING LH (BLUE)
  87050-A5632WAGON6909 - 70071
  87050-N1102WAGON7008 - 71071
  87050-N2703WAGON7108 -   1
16ASSY-SEAT,RECLINING LH (RED)
  87050-A5633WAGON6909 - 70071
  87050-N1103WAGON7008 - 71071
  87050-N2702WAGON7108 -   1
17ASSY-CUSHION,SEAT RH (BLACK)
  87300-A5100WAGON6909 - 70071
  87300-N1000WAGON7008 - 71071
  87300-N1600WAGON7108 -   1

ASSY-CUSHION,SEAT RH (BLUE)
  87300-A5102WAGON6909 - 70071
  87300-N1002WAGON7008 - 71071

  87300-N1603WAGON FLOOR SHIFT7108 -   1

ASSY-CUSHION,SEAT RH (BROWN)
  87300-A5101WAGON6909 - 70071
  87300-N1001WAGON7008 - 71071
  87300-N1601WAGON7108 -   1

ASSY-CUSHION,SEAT RH (RED)
  87300-A5103WAGON6909 - 70071
  87300-N1003WAGON7008 - 71071
  87300-N1602WAGON7108 -   1
18ASSY-BACK,SEAT RH (BLACK)
  87600-A5620WAGON6909 - 71071
  87600-N1610WAGON7108 -   1

ASSY-BACK,SEAT RH (BLUE)
  87600-A5622WAGON6909 - 71071
  87600-N1613WAGON7108 -   1

ASSY-BACK,SEAT RH (BROWN)
  87600-A5621WAGON6909 - 71071
  87600-N1611WAGON7108 -   1

ASSY-BACK,SEAT RH (RED)
  87600-A5623WAGON6909 - 71071
  87600-N1612WAGON7108 -   1
19ASSY-CUSHION,SEAT LH (BLACK)
  87350-A5100WAGON6909 - 70071
  87350-N1000WAGON7008 - 71071
  87350-N1600WAGON7108 -   1

ASSY-CUSHION,SEAT LH (BLUE)
  87350-A5102WAGON6909 - 70071
  87350-N1002WAGON7008 - 71071
  87350-N1603WAGON7108 -   1

ASSY-CUSHION,SEAT LH (BROWN)
  87350-N1601WAGON   -   1
  87350-A5101WAGON6909 - 70071
  87350-N1001WAGON7008 - 71071

ASSY-CUSHION,SEAT LH (RED)
  87350-A5103WAGON6909 - 70071
  87350-N1003WAGON7008 - 71071
  87350-N1602WAGON7108 -   1
20ASSY-BACK,SEAT LH (BLACK)
  87600-A5620WAGON6909 - 71071
  87600-N1600WAGON7108 -   1
  87650-N1610WAGON7108 -   1

ASSY-BACK,SEAT LH (BLUE)
  87600-A5622WAGON6909 - 71071
  87600-N1603WAGON7108 -   1
  87650-N1613WAGON7108 -   1

ASSY-BACK,SEAT LH (BROWN)
  87600-A5621WAGON6909 - 71071
  87600-N1601WAGON7108 -   1
  87650-N1611WAGON7108 -   1

ASSY-BACK,SEAT LH (RED)
  87600-A5623WAGON6909 - 71071
  87600-N1602WAGON7108 -   1
  87600-N1612WAGON7108 -   1
21TRIM-CUSHION,SEAT RH (BLACK)
  87320-22001WAGON   - 68071
  87320-A0901WAGON6808 - 69081
  87320-A5100WAGON6909 - 70071
  87320-N1000WAGON7008 - 71071
  87320-N1600WAGON7108 -   1

TRIM-CUSHION,SEAT RH (BLUE)
  87320-26800WAGON   - 68071
  87320-A5102WAGON6909 - 70071
  87320-N1603WAGON7108 -   1

TRIM-CUSHION,SEAT RH (BROWN)
  87320-26801WAGON   - 68071
  87320-A5101WAGON6909 - 70071
  87320-N1001WAGON7008 - 71071
  87320-N1601WAGON7108 -   1

TRIM-CUSHION,SEAT RH (RED)
  87320-22000WAGON   - 68071
  87320-A0900WAGON6808 - 69081
  87320-A5103WAGON6909 - 70071
  87320-N1002WAGON7008 - 71071
  87320-N1003WAGON7008 - 71071
  87320-N1602WAGON7108 -   1
22TRIM-CUSHION,SEAT LH (BLACK)
  87370-22001WAGON   - 68071
  87370-A0901WAGON6808 - 69081
  87370-A5100WAGON6909 - 70071
  87370-N1000WAGON7008 - 71071
  87370-N1600WAGON7108 -   1

TRIM-CUSHION,SEAT LH (BLUE)
  87370-26800WAGON   - 68071
  87370-A5102WAGON6909 - 70071
  87370-N1002WAGON7008 - 71071
  87370-N1603WAGON7108 -   1

TRIM-CUSHION,SEAT LH (BROWN)
  87370-26801WAGON   - 68071
  87370-A0902WAGON6808 - 69081
  87370-A5101WAGON6909 - 70071
  87370-N1601WAGON7108 -   1

  87370-N1001WAGON FLOOR SHIFT7008 - 71071

TRIM-CUSHION,SEAT LH (RED)
  87370-22000WAGON   - 68071
  87370-A0900WAGON6808 - 69081
  87370-A5103WAGON6909 - 70071
  87370-N1003WAGON7008 - 71071
  87370-N1602WAGON7108 -   1
23TRIM ASSIST SEAT BACK BLACK
  87620-A5620WAGON6910 -   1

  87620-22001WAGON CANADA   -   1

TRIM ASSIST SEAT BACK BLUE
  87620-A5622WAGON6910 -   1

  87620-26800WAGON CANADA   -   1

TRIM ASSIST SEAT BACK BROWN
  87620-A5621WAGON6910 -   1

  87620-26801WAGON CANADA   -   1

TRIM ASSIST SEAT BACK RED
  87620-A5623WAGON6910 -   1

  87620-22000WAGON CANADA   -   1

TRIM D/S & ASSIST SEAT BACK BLACK
  87620-A5620WAGON6810 -   2

  87620-23101WAGON USA   - 68092

TRIM D/S & ASSIST SEAT BACK BLUE
  87620-23102WAGON USA   - 68092

TRIM D/S & ASSIST SEAT BACK BROWN
  87620-A2602WAGON6810 -   2

  87620-23103WAGON USA   - 68092

TRIM D/S & ASSIST SEAT BACK RED
  87620-A2600WAGON6810 -   2

  87620-23100WAGON USA   - 68092
24EYELET SEAT BACK A
  86982-A0600WAGON   -   4
25EYELET SEAT BACK B
  86983-A0600WAGON   -   4
26NUT M8X1.25
  08911-1082AWAGON   -   8
27PLAIN WASHER M8 #1
  08915-4381AWAGON   -   8
28SPRING WASHER M8 #2
  08915-1381AWAGON   -   8
29NUT M8X1.25
  08911-1082AWAGON   -   8
30PLAIN WASHER M8 #1
  08915-4381AWAGON   -   8
31SPRING WASHER M8 #2
  08915-1381AWAGON   -   8
32PAN HEAD MACHINE SCREW M5X0.8
  08310-51010WAGON   -   4
  08360-51012WAGON6910 -   4
33PLAINE WASHER M5 #1
  08915-4351AWAGON   -   4
34SPRING WASHER M5 #2
  08915-13510WAGON   -   4
35CLIP TRIM
  86901-32200WAGON   -   50
36SHIM ADJUST F/S ANGLE
  86559-65000WAGON   -   8
37LEVER F/S SLIDE
  86522-21000WAGON   -   2
38WIRE-RELEASE,SLIDE
  87532-21100WAGON   -   2
  87532-N0101WAGON7008 -   1

WIRE-RELEASE,SLIDE (RECLINING)
  87532-N0200WAGON7008 -   1
39ASSY-SLIDE A/S RH
  87501-A0914WAGON6810 -   1
40ASSY-SLIDE A/S LH
  87502-A0914   6904 -   1

  87502-A0914WAGON6810 - 69031
41ASSY-SLIDE D/S RH
  87551-A0914WAGON6810 -   1
42ASSY-SLIDE D/S LH
  87501-A0914WAGON   -   1
  86502-21000WAGON6810 - 69031
43ASH TRAY
  82960-A5500WAGON6910 -   2
44CONNECTOR RH(ASSIST)
  87401-21100WAGON   -   1
  87401-A0914WAGON   -   1
45CONNECTOR LH(ASSIST)
  87402-21100WAGON   -   1
  87402-A0914WAGON   -   1
46CONNECTOR RH(DRIVER)
  87451-21100WAGON   -   1
  87451-A0914WAGON   -   1
47CONNECTOR LH(DRIVER)
  87452-21100WAGON   -   1
  87452-A0914WAGON   -   1
48SCREW-MACHINE M8X1.25 FIXING CONNECTOR TO CUSHION
  86902-E8800WAGON   -   8
  86903-21100WAGON   -   8
49SCREW-MACHINE M8X1.25 FIXING CONNECTOR TO BACK
  86902-21100WAGON   -   8
  86902-E6610WAGON   -   8
50WASHER-TOOTH
  08916-43810WAGON   -   8
51ASSY-DEVICE RECLINING A/S RH
  87401-A5640 WAGON   -   1
52ASSY-DEVICE RECLINING A/S LH
  87402-A0904WAGON   -   1
53ASSY-DEVICE RECLINING D/S RH
  87451-A0904OP WAGON6910 -   1
54ASSY-DEVICE RECLINING D/S LH
  87452-A5640 OP WAGON   -   1

  87452-A5640WAGON   -   1
55ORNAMENT SEAT BACK
  87606-A4600WAGON   -   2
  87606-A4700WAGON6910 -   2
56NUT-PUSH ON
  87608-A1405WAGON6910 -   4
57PUSH ON FIX SPECIAL
  86608-A4600WAGON   -   4
58ASSY CENTER CONSOLE BOX FOR FLOORSHIFT
  J6910-A4610WAGON 4 SPEED6910 -   1
59BRACKET-SEAT,OUTER
  74620-21000WAGON   - 68042
  74620-A2601WAGON6805 -   2
60BRACKET-SEAT,INNER
  74620-21100WAGON   - 68042
  74620-A2600WAGON6805 -   2
ASSY-SEAT,RH ASSY-SEAT,RECLINING RH ASSY-CUSHION,SEAT LH ASSY-BACK,SEAT LH TRIM ASSIST SEAT BACK EYELET SEAT BACK A ASSY-SLIDE A/S RH ASSY-SLIDE A/S LH SCREW-MACHINE M8X1.25 FIXING CONNECTOR TO CUSHION WASHER-TOOTH WASHER-TOOTH SCREW-MACHINE M8X1.25 FIXING CONNECTOR TO CUSHION ASSY-SEAT,LH ASSY-SEAT,RECLINING LH ASSY-CUSHION,SEAT RH ASSY-BACK,SEAT RH TRIM-CUSHION,SEAT RH TRIM-CUSHION,SEAT LH EYELET SEAT BACK B TRIM ASSIST SEAT BACK ASSY-SLIDE D/S RH ASSY-SLIDE D/S LH WIRE-RELEASE,SLIDE ASH TRAY ORNAMENT SEAT BACK ASSY-DEVICE RECLINING D/S RH ORNAMENT SEAT BACK ASSY CENTER CONSOLE BOX FOR FLOORSHIFT ASSY-DEVICE RECLINING D/S LH CONNECTOR LH(DRIVER) SCREW-MACHINE M8X1.25 FIXING CONNECTOR TO BACK WASHER-TOOTH
