Datsun 510 Tail Gate & Bumper (Wagon)

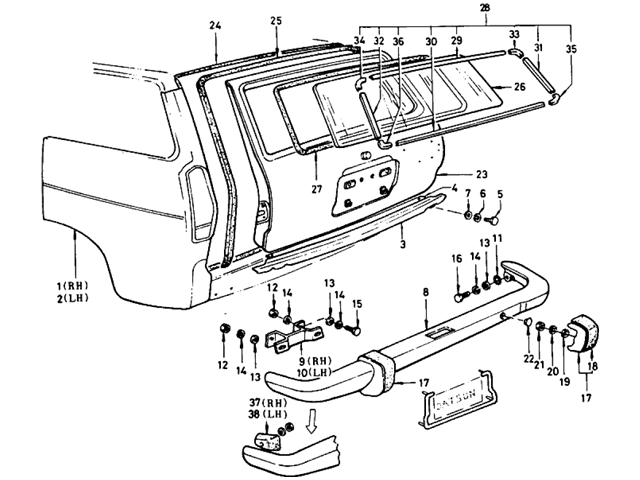

Datsun 510 Parts illustration no. 124-1 Tail Gate & Bumper (Wagon)

124 -1  Tail Gate & Bumper (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-FENDER,REAR RH
  78100-22900WAGON   -   1
  78100-A5900WAGON6909 -   1
2ASSY-FENDER,REAR LH
  78101-22900WAGON   -   1
  78101-A5900WAGON6909 -   1
3APRON REAR
  79101-22900WAGON   -   1
4SHIM REAR APRON
  79902-22900WAGON   -   1
5BOLT HEX
  08110-6121AWAGON   -   6
6WASHER SPRING
  08915-1361AWAGON   -   6
7WASHER PLAIN
  08915-4361AWAGON   -   6
8ASSY-BUMPER,REAR
  85010-A3000WAGON6808 -   1
9ASSY STAY REAR BUMPER RH
  85200-22900WAGON   -   1
10ASSY STAY REAR BUMPER LH
  85201-22900WAGON   -   1
11WASHER RUBBER
  62671-73000WAGON   -   2
12NUT HEX
  08911-1401AWAGON   -   4
13WASHER PLAIN
  08915-4405AWAGON   -   8
14WASHER LOCK
  08915-2401AWAGON   -   8
15BOLT HEX
  08114-0251AWAGON   -   4
16BOLT HEX
  08120-8201EWAGON   -   2
17ASSY OVERRIDER BUMPER REAR
  85020-21000WAGON   -   2
18RUBBER-OVERRIDER
  62670-A8900WAGON   -   2
  62670-A8600WAGON7008 - 71082
19PLAIN WASHER TYPE M10
  08915-4405AWAGON CANADA   -   2
20SPRING LOCK WASHER TYPE M10
  08915-2401AWAGON CANADA   -   2
21HEX.NUT M10X1.25
  08911-1401AWAGON CANADA   -   2
22PLUG BUMPER 12
  62689-21000WAGON USA   -   2
23ASSY PANEL TAIL GATE
  90101-A3002WAGON   -   1

  90101-A3002WPX6810 -   1

  90101-A3002 WPXA6810 -   1
24WEATHERSTRIP INNER TAIL GATE
  76842-22901WAGON   -   1
25WEATHERSTRIP OUTER TAIL GATE
  G6844-22901 WAGON   -   1
26GLASS-WINDOW,TAIL GATE DEMISTING (TEMPERED ANTI SUN)
  90301-N1100WAGON7108 -   1

GLASS-WINDOW,TAIL GATE T=5.0 (TEMPERED ANTI SUN)
  90301-22502WAGON   - 71071

GLASS-WINDOW,TAIL GATE T=5.0 (TEMPERED)
  90301-22502WAGON   -   1
27W/STRIP TAIL GATE WINDOW
  90305-22501WAGON   -   1
28SET MOULDING TAIL GATE
  90951-22900WAGON   -   1
29MOULDING TAIL GATE UPPER
  90952-22900WAGON   -   1
30MOULDING TAIL GATE LOWER
  90953-22900WAGON   -   1
31MOULDING TAIL GATE SIDE RH
  90954-22900WAGON   -   1
32MOULDING TAIL GATE SIDE LH
  90955-22900WAGON   -   1
33CONNECTING TAIL GATE MOULDING UPPER RH
  90956-22900WAGON   -   1
34CONNECTING TAIL GATE MOULDING UPPER LH
  90957-22900WAGON   -   1
35CONNECTOR TAIL GATE MOULDING LOWER RH
  90958-22900WAGON   -   1
36CONNECTOR TAIL GATE MOULDING LOWER LH
  90959-22900WAGON   -   1
37RUBBER REAR BUMPER RH
  85800-A5300WAGON6910 -   1
38RUBBER REAR BUMPER LH
  85801-A5300WAGON6910 -   1
ASSY-FENDER,REAR RH WASHER SPRING WASHER PLAIN ASSY-BUMPER,REAR ASSY STAY REAR BUMPER RH ASSY STAY REAR BUMPER LH WASHER RUBBER NUT HEX WASHER LOCK WASHER LOCK WASHER PLAIN WASHER LOCK BOLT HEX RUBBER-OVERRIDER PLUG BUMPER 12 RUBBER REAR BUMPER LH WEATHERSTRIP INNER TAIL GATE WEATHERSTRIP OUTER TAIL GATE MOULDING TAIL GATE SIDE LH MOULDING TAIL GATE LOWER MOULDING TAIL GATE SIDE RH W/STRIP TAIL GATE WINDOW ASSY-FENDER,REAR LH APRON REAR SHIM REAR APRON BOLT HEX WASHER PLAIN WASHER LOCK BOLT HEX WASHER PLAIN NUT HEX ASSY PANEL TAIL GATE ASSY OVERRIDER BUMPER REAR ASSY OVERRIDER BUMPER REAR PLAIN WASHER TYPE M10 SPRING LOCK WASHER TYPE M10 HEX.NUT M10X1.25 RUBBER REAR BUMPER RH SET MOULDING TAIL GATE CONNECTING TAIL GATE MOULDING UPPER LH CONNECTOR TAIL GATE MOULDING LOWER LH MOULDING TAIL GATE UPPER CONNECTING TAIL GATE MOULDING UPPER RH CONNECTOR TAIL GATE MOULDING LOWER RH GLASS-WINDOW,TAIL GATE
