Datsun 510 Tail Gate Window & Fitting (Wagon)

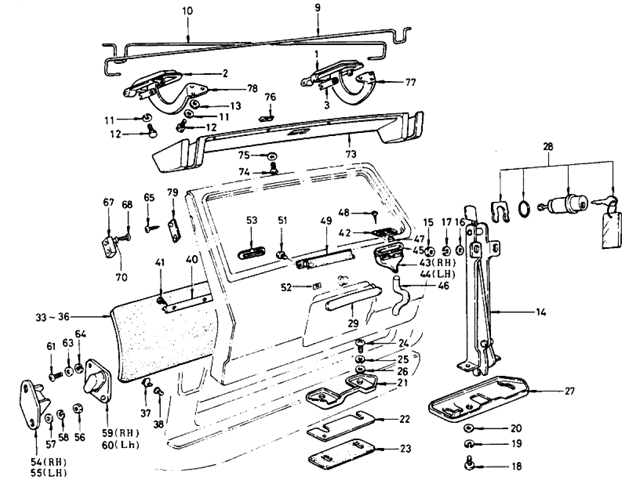

Datsun 510 Parts illustration no. 125-1 Tail Gate Window & Fitting (Wagon)

125 -1  Tail Gate Window & Fitting (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-HINGE,TAIL GATE RH
  90400-22900WAGON   - 68071
  90400-A1900WAGON6808 - 70071
  90400-A3001WAGON7008 -   1
2ASSY-HINGE,TAIL GATE LH
  90401-22900WAGON   - 70071
  90401-22901WAGON7008 -   1
3LINK A
  90404-22901WAGON   -   2
4PIN HINGE
  90431-22900WAGON   -   2
5PIN LINK A
  90432-22900WAGON   -   2
6BUSH
  90408-22900WAGON   -   4
7HOLDER TORSION BAR RH
  90406-22900WAGON   -   1
8HOLDER TORSION BAR LH
  90407-22900WAGON   -   1
9BAR TORSION TAIL GATE RH
  90411-22500WAGON   -   1
10BAR TORSION TAIL GATE LH
  90412-22500WAGON   -   1
11WASHER SPRING
  08915-1361AWAGON   -   14
12BOLT HEX
  08110-6161AWAGON   -   14
13PLAIN WASHER M6
  08915-4361AWAGON   -   6
14TAIL GATE LOCK
  90502-22900WAGON   -   1
15NUT HEX
  08911-1062AWAGON   -   2
16WASHER PLAIN M6
  08915-4361AWAGON   -   2
17WASHER SPRING M6
  08915-1361AWAGON   -   2
18SCREW-MACHINE M8
  08310-81410WAGON   -   2
19WASHER PLAIN M8
  08915-4381AWAGON   -   2
20WASHER SPRING M8
  08915-1381AWAGON   -   2
21STRIKER TAIL GATE LOCK
  90802-22900WAGON   -   1
22PLATE FRICTION TAIL GATE STRIKER
  90803-22900WAGON   -   1
23SHIM ADJUSTING TAIL GATE STRIKER
  90804-22900WAGON   -   1
24SCREW MACHINE M6
  08310-82012WAGON   -   2
25WASHER PLAIN M6
  08915-4381AWAGON   -   2
26WASHER SPRING M6
  08915-1381AWAGON   -   2
27CATCHER STRIKER
  90806-22900WAGON   -   1
28TAIL GATE LOCK CYLINDER
  90602-A9501WAGON   -   1
29HANDLE TAIL GATE
  90906-22901WAGON   -   1
30PACKING HANDLE TAIL GATE
  90908-22901WAGON   -   1
31SPRING WASHER M5
  08915-13510WAGON   -   2
32NUT HEX M5
  08911-10510WAGON   -   2
33TRIM TAIL GATE BLUISH GREEN
  90902-22505WAGON   - 68091

TRIM TAIL GATE BROWN
  90902-22506WAGON   - 68091
  90902-A2800WAGON6810 -   1
  90902-A5302WAGON6910 -   1
  90902-A9501WAGON7008 - 71071

TRIM TAIL GATE RED
  90902-22504WAGON   -   1
  90902-A9504WAGON7008 -   1
34TRIM TAIL GATE BLUE
  90902-A5303WAGON6910 -   1
  90903-A5303WAGON6910 -   1
  90902-A9505WAGON7008 -   1
35TRIM TAIL GATE BLACK
  90902-22507WAGON   -   1
  90902-A9500WAGON7008 -   1
36TRIM TAIL GATE BEIGE
  90902-N2400WAGON7108 - 70121
37CLIP DOOR FINISH
  80919-32200WAGON   -   7
38CAP DOOR FINISH
  80929-32200WAGON   -   7
39SEALING COVER TAIL GATE
  90904-22900WAGON   -   1
40RETAINER TRIM TAIL GATE
  90922-22500WAGON   -   1
41F/HEAD TAPPING SCREW TYPE
  08520-71010WAGON   -   4
42GRILLE REAR VENTILATOR OUTSIDE
  90950-22900WAGON   - 68092
  90950-A5300WAGON6910 -   2
43DUCT REAR VENTI OUTER RH
  90820-22900WAGON   -   1
44DUCT REAR VENTI OUTER LH
  90821-22900WAGON   -   1
45PACKING DUCT VENTILATOR
  90827-22900WAGON   -   2
46HOSE DRAIN
  90828-22900WAGON   -   2
47SPRING NUT GLOVE BOX
  01241-01021WAGON   -   4
48SCREW TAPPING M4
  08530-41620WAGON   -   4
49REAR VENTILATOR INNER
  90930-22900WAGON   -   1
50PACKING REAR VENTILATOR
  90939-22900WAGON   -   1
51SCREW MASHINE
  08530-41620WAGON   -   2
52SPRING NUT GLOVE BOX
  01241-01021WAGON   -   2
53GRILLE REAR VENTILATOR INNER
  90933-22900WAGON   -   2
54DOWN STOPPER TAIL GATE RH
  90522-U1400WAGON   -   1
55DOWN STOPPER TAIL GATE LH
  90523-22901WAGON   -   1
56NUT HEX M6
  08911-1062AWAGON   -   4
57PLAIN WASHER
  08915-4361AWAGON   -   4
58SPRING LOCK WASHER
  08915-1361AWAGON   -   4
59DOVE TAIL-TAIL GATE RH
  90524-22901WAGON   -   1
60DOVE TAIL-TAIL GATE LH
  90525-22901WAGON   -   1
61SCREW MACHINE
  08360-61212 WAGON   -   4
62V CUT SCREW
  01421-00093WAGON   -   4
63PLAIN WASHER
  08915-4361AWAGON   -   4
64SPRING LOCK WASHER
  08915-1361AWAGON   -   4
65TAPPING SCREW M4
  08510-41012WAGON   -   4
66SPRING LOCK WASHER
  08915-13410WAGON   -   4
67BUMPER RUBBER TAIL GATE
  90526-22900WAGON   -   2
68SCREW MACHINE
  08360-61212 WAGON   -   4
69V CUT SCREW
  01421-00093WAGON   -   4
70EXTERNAL TOOTH LOCK WASHER M6
  08916-33610WAGON   -   4
71FINISHER-TAIL GATE RH (NOT FOR EXPORT)
  90912-22900WAGON   -   1
72FINISHER-TAIL GATE LH (NOT FOR EXPORT)
  90913-22900WAGON   -   1
73COVER-TORSION BAR
  73920-22900WAGON   -   1
  73920-A5900WAGON6910 -   1
74SCREW
  08530-71010WAGON   -   6
75WASHER-FINISH
  08915-80700WAGON   -   6
76NUT-SPRING
  08964-10710WAGON   -   2
77HINGE TAIL GATE RH
  90420-22900WAGON   -   1
  90420-A3000WAGON   -   1
78HINGE TAIL GATE LH
  90421-22900WAGON   -   1
79PLATE-BUMPER
  90528-22901WAGON   -   2
