Datsun 510 Ventilator (Wagon)

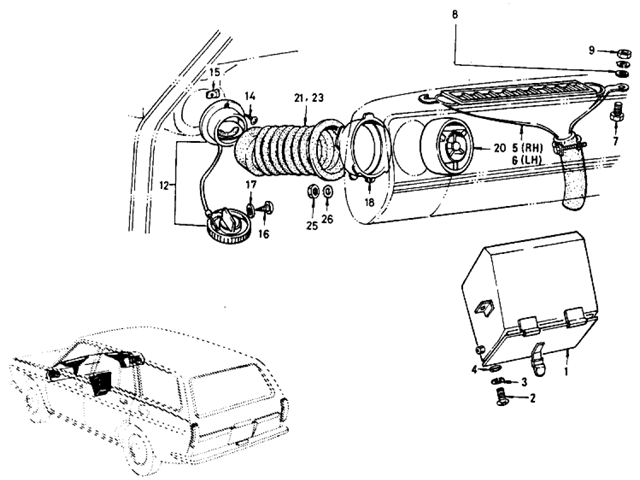

Datsun 510 Parts illustration no. 110B-1 Ventilator (Wagon)

110B -1  Ventilator (Wagon)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY-VENTILATOR
  27801-23100WAGON   -   1
  27801-A4600WAGON6910 -   1
2SCREW
  08360-61212 WAGON   -   2
3WASHER-LOCK
  08915-1361AWAGON   -   6
4WASHER-PLAIN
  08915-4361AWAGON   -   6
5DEMISTER NOZZLE RH
  27171-21001WAGON   - 69071
  27171-A4600WAGON6908 -   1
6DEMISTER NOZZLE LH
  27172-21001WAGON   - 69071
  27172-A4600WAGON6908 -   1
7HEXAGON BOLT
  08110-61462WAGON   - 69074
8PLAIN WASHER
  08915-4361AWAGON   - 69074
9NUT
  08911-1062AWAGON   -   4
10TAPPING SCREW
  08360-41042WAGON6908 -   4
11PLAIN WASHER
  08915-48442WAGON6908 -   4
12ASSY-VALVE SIDE VENT
  66510-21001WAGON   -   2
  66510-78500WAGON   -   2
  68770-A4600WAGON6910 -   2

CLIP-SIDE VENT
  24220-89958WAGON6910 -   2

GROMMET-SIDE VENT
  24250-89977WAGON6910 -   2
13ASSY-VALVE SIDE VENT
  68770-A4600WAGON6910 -   2
14SCREW-TAPPING
  08540-6122AWAGON   -   6
15NUT-SPRING M5
  01241-00491WAGON   -   4
16SCREW-TAPPING
  08513-51212WAGON   -   4
17WASHER-PLAIN M5
  08915-4351AWAGON   -   4
18ASSY-NOZZLE VENT SIDE
  66520-78500WAGON   - 69092
  68760-A4600WAGON6910 -   2
19ASSY-NOZZLE VENT SIDE
  68760-A4600WAGON6910 -   2
20NOZZLE-VENT SIDE
  66512-78501WAGON   - 69092
21DUCT-VENT RH
  66522-21000WAGON   -   2
22DUCT-VENT LH
  68780-A4600WAGON6910 -   2
23DUCT-VENT LH
  66523-21000WAGON   - 69092
24DUCT-VENT LH
  68781-A4600WAGON6910 -   2
25HEXAGON NUT
  16132-J1700WAGON   - 69072
26LOCK WASHER
  08916-33410WAGON   - 69072

TAPPING SCREW
  08513-41212WAGON6908 -   4
27BOX-VENTILATOR
  27802-A4605WAGON6910 -   1
28LEVER VALVE SHUT
  27803-A4600WAGON6910 -   1
DEMISTER NOZZLE RH DEMISTER NOZZLE LH PLAIN WASHER NUT NOZZLE-VENT SIDE DUCT-VENT RH DUCT-VENT LH NUT-SPRING M5 SCREW-TAPPING WASHER-PLAIN M5 ASSY-VENTILATOR SCREW WASHER-LOCK HEXAGON BOLT WASHER-PLAIN ASSY-VALVE SIDE VENT (+ CLIP & GROMMET) SCREW-TAPPING HEXAGON NUT LOCK WASHER & TAPPING SCREW ASSY-NOZZLE VENT SIDE SCREW DEMISTER NOZZLE RH / DEMISTER NOZZLE LH DUCT-VENT LH LOCK WASHER & TAPPING SCREW LEVER VALVE SHUT TAPPING SCREW ASSY-VENTILATOR ASSY-VALVE SIDE VENT DUCT-VENT LH ASSY-NOZZLE VENT SIDE BOX-VENTILATOR PLAIN WASHER
