Datsun 510 Brake Piping

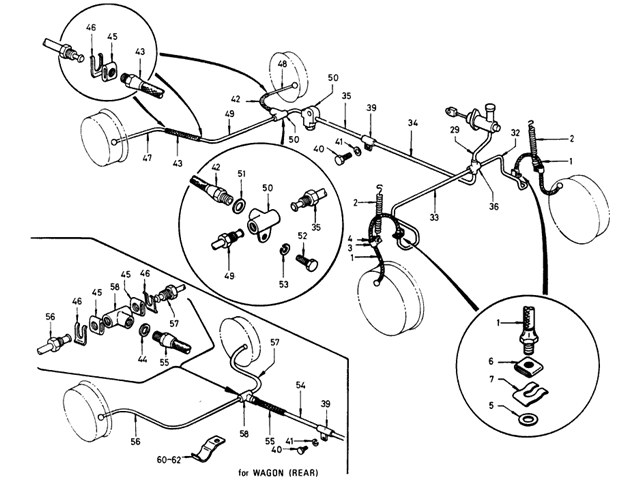

Datsun 510 Parts illustration no. 069-1 Brake Piping (Single)

069 -1  Brake Piping (Single)
KeyPart No.ModelApplied DateQty
FromTo
1ASSY HOSE BRAKE
  46211-79922     -   2
2SPRING-HOSE,BRAKE(FOR DISC BRAKE)
  46361-U3901     -   2
3CLAMP-HOSE (FOR DISC BRAKE)
  46362-E0100     -   2
4PROTECTOR-RUBBER,BRAKE HOSE (FOR DISC BRAKE)
  46363-E0100     -   2
5GASKET BRAKE HOSE
  46237-A4600     -   2

  46237-A4600SEDAN   -   2

  46237-A4600WAGON   -   2
6PLATE LOCK BRAKE HOSE
  46205-61000     -   2
7SPRING LOCK BRAKE HOSE
  46206-18000     -   2
8ASSY SWITCH BRAKE INDICATOR
  46100-U5200USA   -   1
9PISTON (TOKICO)
  46136-26110USA   -   1
10RING-O (TOKICO)
  46137-26110USA   -   2
11PLATE (TOKICO)
  46138-26110USA   -   2
12SPRING (TOKICO)
  46139-26110USA   -   2
13TERMINAL ASSY (TOKICO)
  46140-26110USA   -   1
14PACKING (TOKICO)
  46238-65000USA   -   1
15PLUG-CYL (TOKICO)
  46141-26110USA   -   1
16PLUG-CYL (TOKICO)
  46142-26110USA   -   1
17PACKING (TOKICO)
  46143-26110USA   -   2
18PISTON (NABCO)
  46136-26100USA   -   1
19RING-O (NABCO)
  46137-26100USA   -   2
20PLATE (NABCO)
  46138-26100USA   -   2
21SPRING (NABCO)
  46139-26100USA   -   2
22PLUG-CYL "A" (NABCO)
  46146-26100USA   -   1
23PLUG-CYL "B" (NABCO)
  46142-26100USA   -   1
  46142-26101USA   -   1
24PACKING (NABCO)
  46143-26100USA   -   2
25ASSY-TERMINAL (NABCO)
  46140-26100USA   -   1
26BOLT-HEX M6X1.0
  08120-64810USA   -   1
27WASHER-LOCK M6
  08915-1361AUSA   -   1
28SPACER CONN B/T
  46257-21003USA   -   1
29ASSY-TUBE,REAR BRAKE MASTER CYLINDER TO IN SWITCH
  46252-23102     -   1
  46252-N2800   7108 -   1

  46252-N2305SEDAN 2 DOOR AUTO FLOOR SHIFT7108 -   1
30ASSY-TUBE,BRAKE FRONT MASTER CYLINDER TO IN SWITCH
  46250-N2800   7207 -   1

  46250-23102DX EXC SSS   - 71071
  46250-N2800DX EXC SSS7108 - 72061

  46250-N2305SEDAN 2 DOOR AUTO FLOOR SHIFT   -   1
31ASSY-TUBE,IN SWITCH TO FRONT HOSE LH
  46240-N0805   7207 -   1

  46240-21403CANADA6808 - 71071

  46240-N0805SEDAN DX & WAGON7108 -   1

  46240-23103USA6808 - 72061
32ASSY-TUBE,IN SWITCH TO FRONT HOSE RH
  46242-N0800   7207 -   1

  46242-21403CANADA6808 - 71071

  46242-N0800SEDAN DX & WAGON7108 -   1

  46242-N0800USA6808 - 72061
33ASSY BRAKE TUBE REAR NO.1
  46282-A2200     - 69091
  46282-N2800   6910 -   1

  46282-21403CANADA   -   1

  46282-A2200DX & SSS   - 69081
  46282-N2800DX & SSS6909 -   1

  46282-A2200USA   - 68091
34ASSY BRAKE TUBE REAR NO.2
  46284-21004     -   1
  46284-N0800     -   1

  46284-N0800SEDAN7207 -   1

  46284-N1101WAGON7108 -   1
35BRAKE TUBE 4 WAY CONNECTOR
  D6255-21005CANADA   - 68091
36SPACER-CONNECTOR BRAKE TUBE
  46257-21003     -   1
37BOLT-HEX M6X1.0
  08110-64010     -   1
38WASHER-SPRING
  08915-1361A     -   1
39CONNECTOR-BRAKE TUBE 2 WAY
  46364-21006     -   1
40BOLT-HEX M6X1.0
  08120-62810     -   1
41WASHER-SPRING
  08915-1361A     -   1
42HOSE-BRAKE RH
  46211-01A08SEDAN   -   1
43HOSE-BRAKE LH
  46212-01A09 SEDAN   -   1
44GASKET BRAKE HOSE
  46237-A4600     -   1

  46237-A4600SEDAN   -   1

  46237-A4600WAGON   -   1
45PLATE LOCK BRAKE HOSE
  46205-61000     -   3
46SPRING LOCK BRAKE HOSE
  46206-18000     -   3
47CONN TUBE RR RH
  44220-A4600SEDAN   -   1
48CONN TUBE RR LH
  44230-21003SEDAN   -   1
  44230-K1900 SEDAN   -   1
49TUBE RR BRAKE
  44240-21001SEDAN   - 68091
  44240-A0800SEDAN6810 -   1
50CONN 3WAY REAR BRAKE
  46313-21001SEDAN   -   1
51SPACER CONNECTOR
  46314-21000     -   1
52BOLT-HEX M8X1.25
  08110-8351A     -   1
53WASHER-LOCK M8
  08915-1381A     -   1
54TUBE-BRAKE REAR NO.2
  46284-22902WAGON   -   1
  46284-A1901WAGON   -   1
55HOSE-BRAKE REAR
  46211-01A40WAGON   -   2
56TUBE-REAR RH
  46290-A5400WAGON   -   1
57TUBE-REAR LH
  46310-A5400WAGON   -   1
58CONNECTOR-3 WAY
  46313-22500WAGON   -   1
59PROTECTOR-BRAKE TUBE
  74692-21000     -   1
  74692-21001     - 69091
60CLIP-BRAKE TUBE
  66524-A5300WAGON   -   3
  66524-A5300WAGON6910 -   1
61CLIP-BRAKE TUBE
  24210-A5901WAGON   -   1
  24210-A5901WAGON   -   2
62CLIP-BRAKE TUBE
  66524-A5902WAGON   -   1
  66524-A5902WAGON   -   2
  66524-A5900WAGON6910 -   2
