Datsun 510 Head Lamp

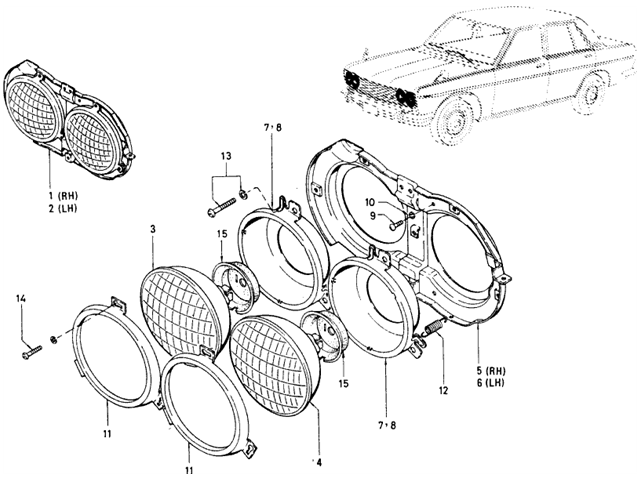

Datsun 510 Parts illustration no. 034-1 Head Lamp

034 -1  Head Lamp
KeyPart No.ModelApplied DateQty
FromTo
1HEAD LAMP RH W/HEAD LAMP COVER
  26010-A9650     -   1
2HEAD LAMP LH W/HEAD LAMP COVER
  26060-A9650     -   1
3UNIT SEALD BEAM TYPE 1
  26701-89920     -   2
4UNIT SEALD BEAM TYPE 2
  26012-58501     - 70102
  26702-89925   7011 -   2
5BODY HEAD LAMP RH
  26006-21001     -   1
6BODY HEAD LAMP LH
  26056-21001     -   1
7MOUNTING RING LH
  26056-21001     -   1

MOUNTING RING RH
  26017-21001     -   1
8MOUNTING RING LH
  26056-21001     -   1

MOUNTING RING RH
  26016-21001     -   1
9SCREW M5X15
  08510-51612     -   4
10WASHER-LOCK M5
  08915-13510     -   4
11RING RETAINING
  26023-89904     -   4
12SPRING TENSION
  26074-V6000     -   4
13SCREW ADJUST
  26022-58000     -   8
14RING FIXING SCREW
  08310-40612     -   6
15HEAD LAMP COVER
  26029-89900   7005 -   4
HEAD LAMP RH W/HEAD LAMP COVER HEAD LAMP LH W/HEAD LAMP COVER UNIT SEALD BEAM TYPE 1 RING FIXING SCREW SCREW ADJUST HEAD LAMP COVER MOUNTING RING RH WASHER-LOCK M5 SCREW M5X15 RING RETAINING RING RETAINING UNIT SEALD BEAM TYPE 2 HEAD LAMP COVER SPRING TENSION MOUNTING RING RH BODY HEAD LAMP RH BODY HEAD LAMP LH
