Datsun 510 Heater

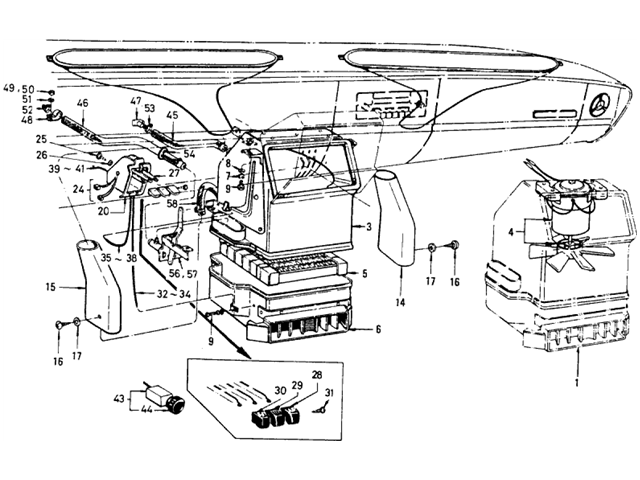

Datsun 510 Parts illustration no. 029-1 Heater

029 -1  Heater
KeyPart No.ModelApplied DateQty
FromTo
1KIT-ROOM HEATER FOR COLD AREA
  27010-A54074 SPEED6910 -   1

  27010-A5007AUTO6910 -   1

  27010-23205OP AUTO USA   - 68091

  27010-23105OP USA 4 SPEED   - 68091

KIT-ROOM HEATER STD
  27010-A26004 SPEED   - 69091
  27010-A54014 SPEED6910 -   1
  27010-A96004 SPEED7008 -   1

  27010-A2700AUTO   - 69091
  27010-A5003AUTO6910 -   1
  27010-N0300AUTO7008 -   1

  27010-A2700AUTO USA   -   1

  27010-A2600USA 4 SPEED   -   1
2UNIT-HEATER,ROOM (COLD AREA)
  27011-N2200   7106 -   1

  27011-23100OP6808 - 69081
  27011-A4605OP6909 -   1

UNIT-HEATER,ROOM (STD)
  27011-23100     - 69091
  27011-21401     - 69081
  27011-A4601   6909 -   1
  27011-A7900   7008 -   1

  27011-A7900AUTO7008 -   1

  27011-A4601OP USA 4 SPEED   - 68091
3BOX ROOM HEATER FOR COLD AREA
  27012-A3000OP   - 69091
  27012-A4605OP6910 -   1

BOX ROOM HEATER STD
  27012-A3000     - 69091
  27012-A4600   6910 -   1
4MOTOR-BLOWER FOR COLD AREA
  27013-A3000OP   -   1

MOTOR-BLOWER STD
  27013-E8700     -   1
5CORE-HEATER FOR COLD AREA
  27014-A3000OP   - 69091
  27014-A4605OP6910 -   1

CORE-HEATER STD
  27014-A4600     -   1
6GRILLE HEATER CASE
  B7010-21601     -   1
7WASHER-SPRING (M6)
  08915-1361A     -   4
8WASHER-PLAIN (M6)
  08915-4361A     -   4
9HEX-BOLT (M6)
  08360-61212     -   2
10COCK WATER CONTROL STD
  27095-A3000     - 69091
11COCK WATER CONTROL STD
  27091-A4601   6910 -   1

  27091-A4601OP   -   1
12COCK WATER CONTROL FOR COLD AREA
  27095-A3000OP   -   1
13COCK WATER CONTROL FOR COLD AREA
  27091-A4605OP   - 69091
14DUCT-DEMISTER RH
  27061-23100OP   -   1
15DUCH-DEMISTER LH FOR COLD AREA
  27062-23100     -   1
16TAPPING SCREW M4
  08510-41012     -   2
17PLAIN WASHER M4
  08915-43410     -   2
18COMPLETE HEATER CONTROL
  68700-A4600   6910 -   1
  68700-N2800   7207 -   1

COMPLETE HEATER CONTROL (COLD AREA)
  68700-N2800OP6910 -   1
19ASSY-CONTROL,HEATER
  68710-N2800   6910 -   1
20ASSY HEATER CONTROL
  27135-21400CANADA   -   1

ASSY HEATER CONTROL FOR COLD AREA
  27135-A2305OP   -   1

ASSY HEATER CONTROL STD
  27135-A2305     - 69091
  68710-A4600   6910 -   1

  27135-A2305USA   -   1
21ASSY HEATER CONTROL FOR COLD AREA
  68710-A4600OP6910 -   1
22UNIT HEATER CONTROL FOR COLD AREA
  27136-A2305     -   1
23BOLT HEATER CONTROL
  68481-A4600     -   1
24ASSY SWITCH ROTARY
  27140-A2300     -   1
25MACIHNE SCREW (M4)
  08360-41212CANADA   -   2
26WASHER-TOOTH M4
  08916-13410CANADA   -   2
27KNOB-AIR CONTROL
  68725-A4600   6810 -   2
  27137-A0800   6810 -   1

  27137-A0800 USA   -   2

KNOB-CONTROL LEVER
  27137-21600CANADA   -   3
28KNOB-AIR CONTROL FOR COLD AREA
  68725-A4600OP6910 -   1
29KNOB-TEM CONTROL
  27138-A0800   6810 -   1
30KNOB-FAN CONTROL STD
  27139-A0800   6810 -   1
31SCREW M3
  08330-30820CANADA   -   3
32ASSY-CABLE A (OFF-HEAT) STD
  27131-21600CANADA   -   1
33ASSY-CABLE A (OFF-HEAT) STD
  27131-21400     - 69091

  27131-21400USA   - 69091
34ASSY-CABLE A (OFF-HEAT) FOR COLD ARE
  68731-A5500   6910 -   1

ASSY-CABLE A (OFF-HEAT) STD
  68731-A4600   6910 -   1
35ASSY-CABLE B(DEF-ROOM) STD
  27132-78805     - 69091
36ASSY-CABLE B(DEF-ROOM) STD
  68732-A4601   6910 -   1

  68732-A4601OP7008 -   1
37ASSY-CABLE B(DEF-ROOM) FOR COLD AREA
  27132-78805OP   - 69091
38ASSY-CABLE (DEF-ROOM) FOR COLD AREA
  68732-A4601OP   -   1
  68732-A5510 OP   -   1
39ROD-CONTROL STD
  27133-21605     - 69091

  27133-21605USA   - 68091
40ROD-CONTROL STD
  68730-A4600   6910 -   1
41ROD-CONTROL FOR COLD AREA
  27133-21605OP   - 69091
42ROD-CONTROL FOR COLD AREA
  68730-A5500OP6910 -   1
43SWITCH-HEATER (FAN)
  27095-23101     - 69091
  27095-A4600   6910 -   1

  27095-23101USA   -   1
44KNOB HEATER SWITCH
  25345-79000     - 69091
  25345-A4600     - 69091

  25345-79000USA   -   1
45HOSE-WATER INLET
  B7020-A0800     -   1

  B7020-A0800OP   -   1
46HOSE-WATER OUTLET
  B7021-A0800     -   1

  27021-A5000 AUTOMATIC   -   1

  B7021-A0800 EXC AUTOMATIC   -   1
47CONNECTOR
  27070-21600     -   1
48CLAMP-HOSE
  27041-21800AUTOMATIC   -   1

  27041-21602EXC AUTOMATIC   -   1

CLAMP-HOSE 22D
  27041-73000AUTOMATIC   -   1

CLAMP-HOSE 24D
  27041-21800AUTOMATIC   -   1

  27041-A5000OP6910 -   1
49HEX-NUT (M6)
  08360-61212     - 69091
50NUT SPECIAL
  68970-89901   6910 -   1
51WASHER SPRING M6
  08915-1361A     -   1
52CLAMP-HOSE 24D
  27050-21600     -   4
53CLAMP-HOSE 22D
  01555-00041     -   4
54GROMMET-HEATER
  27035-21002     - 69092
  27035-A4600   6910 -   1

GROMMET-HEATER FOR COLD AREA
  27035-A4600OP6910 -   1
55COVER GROMMET
  27036-A4600     -   1
56VALVE-CONTROL (11121- 30600)
  27095-A2301     -   1
57VALVE-CONTROL FOR COLDAREA(1180-30600)
  27091-A4605     -   1
58HOSE-WATER VALVE-CONTROL TO CORE (11111-
  B7145-21602     -   1
59SET-DEFOGGER FRONT
  27180-A5400OP6910 -   1
60FINISHER-CONTROL,HEATER
  68480-A5500OP6908 - 71121
  68480-N2200OP7201 - 72061
  68485-N2800OP7207 -   1

MASK-CONTROL,HEATER (WITHOUT HEATER)
  68480-N2301   7201 -   1
61KNOB CONTROL
  68725-A4600   6910 -   1
62BOLT CONTROL
  68481-A4600   6910 -   1
63PLAIN WASHER
  08915-4361A     -   1
64NUT-SPECIAL
  68970-89901   6910 -   1
65ASSY-CABLE CONTROL(DEF-ROOM)
  68731-A4600   6910 -   1
66ROD-CONTROL (OFF-DEFF)
  68730-A4600   6910 -   1
