Datsun Bluebird 510 Camshaft & Valve Mechanism

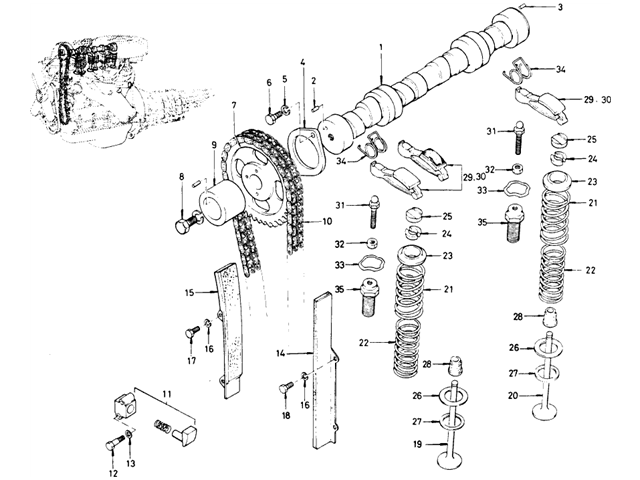

Datsun 510 Parts illustration no. 006-1 Camshaft & Valve Mechanism

006 -1  Camshaft & Valve Mechanism
KeyPart No.ModelApplied DateQty
FromTo
1CAMSHAFT
  13001-21000SVL13   -   1

  13001-23000SVL16   -   1
  13001-H2700SV L16   -   1
2DOWEL CAMSHAFT
  13032-18000     -   1
3PLUG CAMSHAFT
  11024-K0100     -   1

  11024-K0100AUTOMATIC   -   1
4PLATE CAM LOCAT
  13010-21090     -   1
5WASHER SPRING
  08915-1361A     -   2
6BOLT HEX M6 X 1.0
  08120-61610     -   2
7GEAR-CAMSHAFT
  13024-U8000     -   1
8BOLT CAM GEAR
  13012-21002     -   1
9ASSY CAM FUEL PUMP
  13015-21002     -   1
10CHAIN CAMSHAFT
  13028-21000   6810 -   1
  13028-23000   6810 -   1

  13028-23000L13   - 68091

  13028-21000L16   - 68091
11TENSIONER CHAIN
  13070-21002L13   - 69091

  13070-21002L16   -   1
12BOLT HEX M6X1.0
  08120-63510     -   2
13WASHER SPRING
  08915-1361A     -   2
14GUIDE CHAIN TENSION SIDE
  13085-21001     -   1
  13085-21002     -   1
15GUIDE CHAIN SLACK SIDE
  13091-A3500     -   1
16WASHER SPRING
  08915-1361A     -   4
17BOLT HEX M6X1.0
  08120-61210     -   4
18BOLT HEX FOR GUIDE TENSION SIDE
  08120-61410     -   2
19VALVE INTAKE (PORT 1.50 INCHES)
  13201-A3500CRANK & L13   -   4

  13201-A3500 EXHAUST   -   4

  13201-A3500EXHAUST & EVAPO   -   4
20VALVE EXHAUST
  13202-23002EXHAUST & EVAPO   -   4

  13202-21002L13 & CRANK   -   4
21OUTER VALVE SPRING
  13203-21001L13   -   8

  13203-F2000 L16   -   8
22SPRING VALVE INNER (24.9KG)
  13204-23000L16   -   8
23RETAINER VALVE
  13209-N6800     -   8
24COLLET VALVE
  13210-U0100     -   16
25GUIDE R/VALVE 2.5T
  13218-21010     -   8

GUIDE R/VALVE 3.0T
  13218-Y7000     -   8
26SEAT VALVE
  13205-D020A     -   8
27SEAT VALVE SPRING INNER
  13206-2300A     -   8
28OIL SEAL VALVE
  13207-81W00     -   8
29ROCKER VALVE
  13257-W0300     -   8
30ROCKER VALVE WITH H.C.I PAD
  13257-W0300     -   8
31PIVOT V/ROCKER
  13234-21000     -   8
32LOCK NUT PIVOT
  13235-U0100     -   8

  13235-U0100L13   -   8
33RETAINER-SPRING
  13255-A8600     -   8
34SPRING FOR VALVE WITH H.C.I.PAD
  13256-21003     -   8

SPRING VALVE ROCKER
  13256-21002     -   8
35BUSH ROCKER
  13215-A8600     -   8
CAMSHAFT DOWEL CAMSHAFT PLATE CAM LOCAT PLUG CAMSHAFT WASHER SPRING BOLT HEX M6 X 1.0 GEAR-CAMSHAFT BOLT CAM GEAR ASSY CAM FUEL PUMP GUIDE CHAIN SLACK SIDE WASHER SPRING BOLT HEX M6X1.0 TENSIONER CHAIN BOLT HEX M6X1.0 WASHER SPRING GUIDE CHAIN TENSION SIDE WASHER SPRING BOLT HEX FOR GUIDE TENSION SIDE CHAIN CAMSHAFT SPRING VALVE INNER (24.9KG) BUSH ROCKER RETAINER-SPRING PIVOT V/ROCKER LOCK NUT PIVOT OIL SEAL VALVE SEAT VALVE SEAT VALVE SPRING INNER VALVE INTAKE OUTER VALVE SPRING RETAINER VALVE COLLET VALVE GUIDE R/VALVE VALVE EXHAUST SEAT VALVE SPRING INNER SEAT VALVE OIL SEAL VALVE SPRING VALVE INNER OUTER VALVE SPRING RETAINER VALVE COLLET VALVE GUIDE R/VALVE ROCKER VALVE SPRING VALVE ROCKER PIVOT V/ROCKER LOCK NUT PIVOT ROCKER VALVE RETAINER-SPRING BUSH ROCKER SPRING VALVE ROCKER
