Datsun Bluebird 510 Cylinder Block

Datsun 510 Parts illustration no. 002-1 Cylinder Block (Front Side View)

002 -1 Cylinder Block (Front Side View)

Key	Part No.	Model	Applied Date		Qty
Key	Part No.	Model	From	To	Qty

1	ASSY CYLINDER BLOCK
	11010-21000SV			-		1

2	BOLT MAIN BEARING
	12293-01M00			-		10

3	STUD OIL FILTER
	15213-W040A			-		1

4	DOWEL BLOCK
	11053-73400			-		2

5	DOWEL BLOCK
	11022-21000			-		1

6	DOWEL (BLOCK TO TRANSMISSION CASE)
	30412-21000			-		1

7	DOWEL TIMING CHAIN COVER
	11046-73402			-		2

8	PLUG TAPER
	11024-K0100			-		2

	PLUG WELCH
	00933-1401A			-		6

9	PLUG TAPER
	01647-00011			-		2

10	CRANK OIL SEAL
	12279-2B500			-		1

11	SEAL OIL BEARING
	12289-W0400			-		2

12	SHIM SEAL ENGINE REAR
	12275-21000	SSS		-		1

13	PLUG DRAIN
	08931-3041A			-		1

14	ASSY-SWITCH, ENGINE UNIT OIL PRESSURE
	25240-G150A	EXC SSS		-		1

15	GUIDE-GAUGE,OIL LEVEL
	15146-21002			-		1

16	GAUGE-LEVEL,OIL
	11140-U6000			-		1

17	PLATE-ENGINE,REAR
	30411-21000			-		1
	C0411-W1710		7211	-		1

18	PLUG-RUBBER,REAR PLATE
	64805-K1200		7211	-		1

19	GUSSET RH
	30429-K1200		7211	-		1

20	GUSSET LH
	30430-N7100		7211	-		1

21	BOLT-HEXAGON
	08191-04010		7211	-		6

22	RELIEF VALVE
	15241-73400			-		1

23	PAN HEAD CROSS RECESS MACHINE SCREW
	08360-61020			-		2

24	NET STEEL CRANK
	11037-21001			-		1

25	PLATE BAFFLE CRANKCASE
	11038-W1100			-		1

26	OIL JET CHAIN
	13081-21000			-		1

27	ASSY OIL PAN
	11110-21000			-		1
	11110-U0100			-		1

28	OIL PAN REINFORCEMENT
	11124-U0100	EXC SSS	7106	-		1

29	WASHER DRAIN PLUG
	11026-61000			-		1

30	PLUG DRAIN
	11128-U8000			-		1

31	GASKET OIL PAN
	11121-A3500			-		1

32	BOLT-HEXAGON M6
	08120-61410			-		22
	08120-61428		7106	-		17
	08120-6162E		7106	-		5

33	WASHER SPRING LOCK M6
	08915-1361A			-		22

34	CLAMP HOSE OIL COOLER
	11131-21811	AUTOMATIC		-		1

35	CLAMP HOSE
	11132-21810	AUTOMATIC		-		1

36	CLAMP TUBE
	21644-21811	AUTOMATIC		-		1

37	CLAMP TUBE
	21644-21811	AUTOMATIC		-		1

38	SPACER CLAMP
	11134-21810	AUTOMATIC		-		1

39	BOLT HEX M6
	08110-61862	AUTOMATIC		-		3

40	WASHER
	08915-1361A	AUTOMATIC		-		3

41	SEAL-OIL,CRANKSHAFT
	13042-A8601			-		1

42	DOWEL W/PUMP
	11023-32200			-		2

43	DOWEL W/PUMP
	11046-73402			-		2

44	FRONT COVER GASKET RH
	13520-15G02			-		1

45	FRONT COVER GASKET LH
	13521-15G02			-		1

46	BOLT HEX M8 L=50
	08110-85010			-		1

47	BOLT HEX FIXING FRONT COVER M8XL78
	13540-21001			-		3

48	WASHER SPRING LOCK M8
	08915-1381A			-		4

49	BOLT HEX M6
	08110-6202A			-		2

50	BOLT HEX M6
	08110-64210			-		3

51	WASHER SPRING LOCK M6
	08915-1361A			-		5

52	INDICATOR-TIMING
	13502-21000			-	7112	1
	13502-N0100		7201	-		1

53	RIVET INDICATOR
	13503-21000			-		1

54	WASHER SPRING LOCK
	08915-1361A			-		1

55	WATER-INLET
	13049-U0100			-		1

56	CAP RUBBER
	27065-72800			-		1

57	CAP-RUBBER
	14058-25500			-		1

58	CLAMP HOSE
	08721-12200			-		1

59	GASKET WATER INLET
	13050-07N00			-		1

60	BOLT HEX M6
	08110-8281A			-		2

61	WASHER SPRING LOCK
	08915-1381A			-		2

62	CONNECTOR 2 WAY
	27061-21000			-		1

63	OIL FILTER CARTRIDGE
	15208-43G0A			-		1

64	COVER-FRONT,ENGINE
	13501-A8600			-		1

65	LINER CYLINDER BLOCK O/S 4MM
	11012-21000			-		4

66	LINER CYLINDER BLOCK O/S 4.5MM
	11013-21000			-		4

67	LINER CYLINDER BLOCK O/S 5MM
	11014-21000			-		4

Datsun 510 illustration no. 002-1 Cylinder Block (Front Side View)

Cylinder Block (Front Side View)

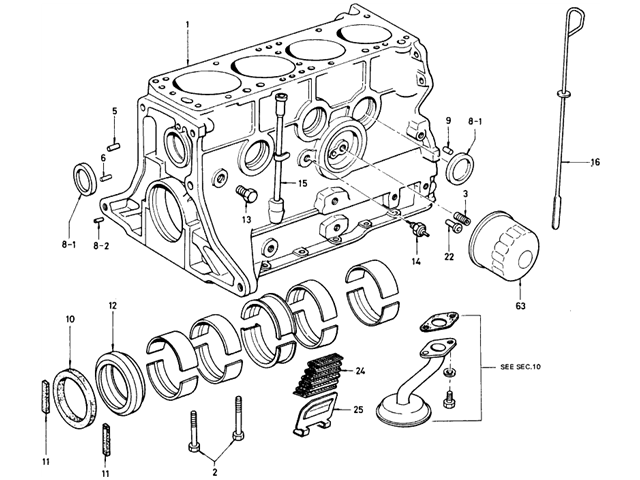

Datsun 510 illustration no. 002-2 Cylinder Block (Rear Side View)

Cylinder Block (Rear Side View)
