Datsun Bluebird 510 Manifold

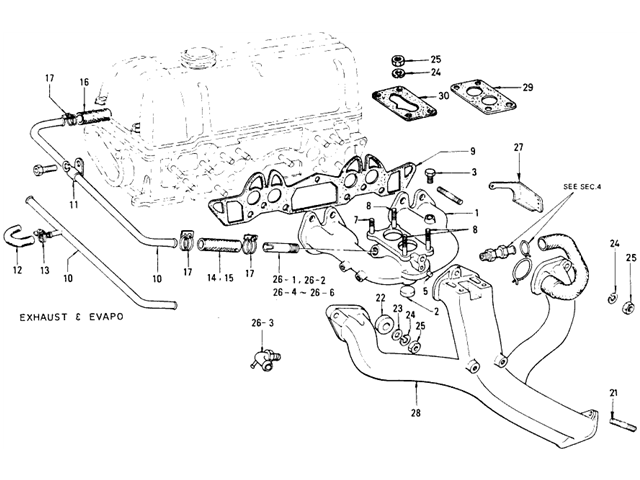

Datsun 510 Parts illustration no. 007-1 Manifold

007 -1  Manifold
KeyPart No.ModelApplied DateQty
FromTo
1INTAKE MANIFOLD
  14002-23025CRANK   - 67111

  14002-A4625 CRANKE6712 -   1

  14002-21025L13   -   1

  14002-A4625L16 CRANK6808 - 70071

  14002-23026L16 EXHAUST & EVAPO   - 67111
  14003-A4656 L16 EXHAUST & EVAPO6712 -   1
2PLUG WELCH 25D
  00933-1251AEXC SSS   -   1
3PLUG TAPER
  08931-3041ACRANK   -   2
4PLUG BLIND
  01647-00011L16   -   2
5PLUG BLIND
  00933-20850L16 EXC SSS   -   1
6CONNECTOR TUBE
  14875-23000EXHAUST & EVAPO   -   1
  14875-A2600EXHAUST & EVAPO   -   1
  14875-A3000EXHAUST & EVAPO   -   1
  14875-A8600EXHAUST & EVAPO7008 -   1
  14875-N0400EXHAUST & EVAPO7008 -   1
7STUD CARB FIX M8 1.25
  14065-B8600EXC SSS   -   1
8STUD CARB FIX M8 1.25
  08213-82810EXC SSS   -   3
9GASKET MANIFOLD
  14035-U0115EXC SSS   -   1
10PIPE MANIFOLD TO WATER INLET
  14053-23000CRANK   - 69091
  14053-A8602CRANK6910 -   1

  14053-A3000EXHAUST & EVAPO   - 69091
  14053-A5500EXHAUST & EVAPO6910 -   1

  14053-21000L13   -   1

  14053-23000L16   -   1

  14053-A8602L16 EXHAUST & EVAPO7008 -   1

  14053-A8601L16 EXHAUST & EVAPO (CANADA)7008 -   1
11CLAMP PIPE
  14040-21000     -   1

  14040-23000L16   - 69091
  14040-A4600L166910 -   1
12WATER BYPASS HOSE
  14080-A3000L16 EXHAUST & EVAPO   -   1

  14080-A8602L16 EXHAUST & EVAPO (CANADA)7008 -   1
13CLAMP HOSE
  08723-11110EXHAUST & EVAPO   -   2

  01555-00771L16 EXHAUST & EVAPO (CANADA)7008 -   2
14HOSE-WATER INLET (D12.5)
  14056-12200     -   1
15HOSE WATER INLET (D12.5)
  14055-21000L16   -   1

HOSE WATER INLET (D9.5)
  14055-23000L16   -   1
16HOSE WATER OUTLET (D12.5)
  14056-21000L13   - 68091

HOSE WATER OUTLET (D9.5)
  A4056-23000L16   - 68091
  A4056-23001L166810 -   1

HOSE-WATER OUTLET (D12.5)
  14056-21000     -   1
17CLAMP HOSE
  08721-11910     -   4
18CLAMP HOSE (D18)
  01555-00841L16   -   3
19CLAMP HOSE (D20)
  14091-23000L16   -   1
20CLAMP HOSE (D24)
  21505-78500     -   1
21STUD-TUBE,EXHAUST
  14064-E3000     -   3
22YOKE MANIFOLD
  14037-32200     -   4
23WASHER PLAIN M8
  08915-5361A     -   4
24WASHER LOCK M8
  08915-1381A     -   3
25HEX NUT M8
  08911-1082A     -   11
26CONNECTOR INTAKE MANIFOLD WATER INLET (ANGLED)
  14008-N0900EXHAUST & EVAPO7008 -   1

CONNECTOR INTAKE MANIFOLD WATER INLET (STRAIGHT)
  14008-21000     -   1

  14008-23002EXHAUST   - 69061

  14008-A5500EXHAUST & EVAPO6907 -   1

  14008-21000L13   -   1

  14008-N5810L16   -   1
27BRACKET CABLE HOLDER
  14071-23800AUTO   -   1
28MANIFOLD-EXHAUST
  14004-A3500L13 & CRANK6810 -   1

  14004-21000L13 & L16 CRANK   - 68091

  14004-A2600L16 EXHAUST & EVAPO   - 71061
  14004-N2200L16 EXHAUST & EVAPO7107 -   1
  14004-N2300L16 EXHAUST & EVAPO7108 -   1
29INSULATOR CARBURETOR
  16174-21000L13   -   1

  16174-23001L16   - 70071
  16174-N0901L167008 - 72061
30INSULATOR CARBURETOR
  16174-U6001 L16   -   1
31KIT-JOINT SEAT
  16177-23000L16   - 70071
  16177-N0900L167008 - 72061
32KIT-JOINT SEAT
  16177-U2000L167207 -   1
CLAMP HOSE HOSE WATER OUTLET CLAMP PIPE WATER BYPASS HOSE CLAMP HOSE PIPE MANIFOLD TO WATER INLET PIPE MANIFOLD TO WATER INLET CLAMP HOSE CLAMP HOSE HOSE-WATER INLET CONNECTOR INTAKE MANIFOLD WATER INLET (STRAIGHT) CONNECTOR INTAKE MANIFOLD WATER INLET (ANGLED) YOKE MANIFOLD WASHER PLAIN M8 WASHER LOCK M8 HEX NUT M8 MANIFOLD-EXHAUST PLUG WELCH 25D PLUG BLIND STUD CARB FIX M8 1.25 STUD CARB FIX M8 1.25 STUD CARB FIX M8 1.25 INTAKE MANIFOLD PLUG TAPER GASKET MANIFOLD INSULATOR CARBURETOR BRACKET CABLE HOLDER INSULATOR CARBURETOR WASHER LOCK M8 HEX NUT M8 WASHER LOCK M8 HEX NUT M8 STUD-TUBE,EXHAUST Emission Contol Devices
