Datsun Bluebird 510 Piston & Crankshaft

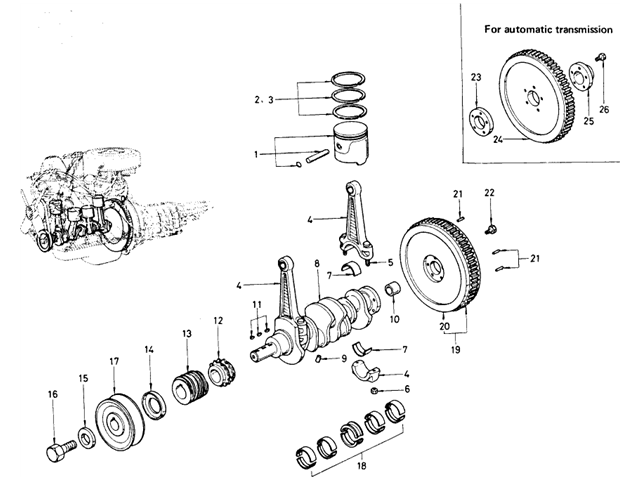

Datsun 510 Parts illustration no. 005-1 Piston & Crankshaft

005 -1  Piston & Crankshaft
KeyPart No.ModelApplied DateQty
FromTo
1PISTON WITH PIN O/S 0.25
  12010-A3503CRANK   -   4

  12010-23003EXHAUST & EVAPO   -   4

  12010-22003L13   -   4

PISTON WITH PIN O/S 0.50
  12010-23004CRANK   -   4

  12010-23004EXHAUST & EVAPO   -   4

  12010-A8615L13   -   4

PISTON WITH PIN O/S 0.75
  12010-23005EXHAUST & EVAPO   -   4

  12010-22005L13   -   4

PISTON WITH PIN O/S 1.00
  12010-A3505CRANK   -   4
  12010-A3506CRANK   -   4

  12010-23006EXHAUST & EVAPO   -   4

  12010-A8617L13   -   4

PISTON WITH PIN O/S 1.50
  12010-A3508CRANK   -   4

  12010-23008EXHAUST & EVAPO   -   4

  12010-22008L13   -   4

PISTON WITH PIN STD
  12010-A3512CRANK   -   4

  12010-23002EXHAUST & EVAPO   -   4

  12010-A8612L13   -   4
2SET RING PISTON O/S 0.25
  12035-21000L13   -   1

  12035-23000L16   -   1

SET RING PISTON O/S 0.50
  12036-21000L13   -   1

  12036-A3501L16   -   1

SET RING PISTON O/S 0.75
  12037-21000L13   -   1

  12037-23000L16   -   1
  12038-A3501L16   -   1

SET RING PISTON O/S 1.00
  12038-21000L13   -   1

SET RING PISTON O/S 1.50
  12040-21000L13   -   1

  12040-A3500L16   -   1

SET RING PISTON STD
  12033-21000L13   -   1

  12033-23000L16   -   1
3SET RING PISTON O/ 0.75 (RIK VENT)
  12037-23000     -   1

SET RING PISTON O/S 0.25 (RIK VENT)
  12035-23000     -   1

SET RING PISTON O/S 0.50 (RIK VENT)
  12036-A3501     -   1

SET RING PISTON O/S 1.00 (RIK VENT)
  12038-A3501     -   1

SET RING PISTON O/S 1.50 (RIK VENT)
  12040-A3500     -   1

SET RING PISTON STD (RIK VENT)
  12033-A3501L13   -   1
4COMPLETE CONNECTING ROD
  12100-21001L13   -   4

  12100-N0100L16   - 71074
  12100-84G00L167108 -   4
5BOLT CONN ROD (TOKYO)
  12109-A3510     -   8

CONNECTING ROD BOLT (TOKAI)
  12109-A3510     -   8

CONNECTING ROD BOLT (TOKYO)
  12109-A3510L16   -   8
6NUT CONN ROD
  12112-18000     -   8
  12112-N0100   7008 -   8

  12112-N0100L167002 -   8
7BUSH CONN ROD F500 O/S 0.12
  12122-21000L13   -   8

BUSH CONN ROD F500 O/S 0.25
  12117-21000L13   -   8

BUSH CONN ROD F500 O/S 0.50
  12118-21000L13   -   8

BUSH CONN ROD F500 O/S 0.75
  12119-21000L13   -   8

BUSH CONN ROD F500 O/S 1.00
  12120-21000L13   -   8

BUSH CONN ROD F500 STD
  12111-V0700L13   -   8

BUSH CONN ROD F500 U/S 0.06
  12121-21000L13   -   8

BUSH CONN ROD F770 O/S 0.06
  12121-V0700L14 & L16   -   8

BUSH CONN ROD F770 O/S 0.12
  12122-V0700L14 & L16   -   8

BUSH CONN ROD F770 O/S 0.25
  12117-V0700L14 & L16   -   8

BUSH CONN ROD F770 O/S 0.50
  12118-V0700L14 & L16   -   8

BUSH CONN ROD F770 O/S 0.75
  12119-V0700L14 & L16   -   8

BUSH CONN ROD F770 O/S 1.00
  12120-V0700L14 & L16   -   8

BUSH CONN ROD F770 STD
  12111-V0700L14 & L16   -   8
8CRANK SHAFT
  12201-A0600SV L13   -   1

  12201-A8600SVL14   -   1

  12201-W7080 L16   -   1
9PLUG TAPER
  12205-40F00     -   2

PLUG-OIL GALLERY
  01647-00011     -   2
10IST MOTION SHAFT BUSH
  32202-B950A     -   1
11WOOD RUFF KEY 5X16
  00926-51600     -   3
12GEAR CRANK
  13021-21000     -   1
13GEAR OIL PUMP
  15043-73400     -   1
14OIL THROWER
  12302-A3500     -   1
15WASHER PULLEY
  12308-65000     -   1
16BOLT C/PULLEY
  12309-21000     -   1
17CRANK SHAFT PULLEY
  12303-21002EVAPO7106 -   1

  12303-23001EXHAUST & EVAPO   - 71051

  12303-21002L13 & CRANK   -   1

  12303-N0100L16   -   1
18SET BUSH CRANK F500 O/S 0.25
  12209-21000L13   -   1

SET BUSH CRANK F500 O/S 0.50
  12210-21000L13   -   1

SET BUSH CRANK F500 O/S 0.75
  12211-21000L13   -   1

SET BUSH CRANK F500 O/S 1.00
  12212-21000L13   -   1

SET BUSH CRANK F500 STD
  12207-21000L13   -   1

SET BUSH CRANK F770 O/S 0.25
  12209-23001L14 & L16   -   1

SET BUSH CRANK F770 O/S 0.50
  12210-23001L14 & L16   -   1

SET BUSH CRANK F770 O/S 0.75
  12211-23000L14 & L16   -   1

SET BUSH CRANK F770 O/S 1.00
  12212-23000L14 & L16   -   1

SET BUSH CRANK F770 STD
  12207-23001L14 & L16   -   1
19ASSY-FLYWHEEL
  12310-N0110L16 EXC AUTOMATIC   -   1
20RING GEAR,FLY WHEEL
  12312-19G00     -   1
21DOWEL CLUTCH TO FLYWHEEL
  12313-10600EXC AUTOMATIC   -   3
22BOLT F/WHEEL
  12315-21001EXC AUTOMATIC   -   5
23CONVERTER PILOT
  12330-A4000AUTOMATIC (3N71A)   -   1

  12330-21800AUTOMATIC (BW)   -   1
24DRIVE PLATE
  12331-W2101AUTOMATIC (3N71A)   -   1

  12331-21800AUTOMATIC (BW)   -   1
25PLATE C/SHAFT
  12333-21800AUTOMATIC   -   1
26BOLT-DRIVE PLATE
  13215-A8600AUTO (3N71B)   -   1

  12315-21801AUTOMATIC   -   5

  13215-A8600 AUTOMATIC (3N71A)   -   1

  12315-21801AUTOMATIC (BW)   -   5
