Datsun 510 Steering Linkage

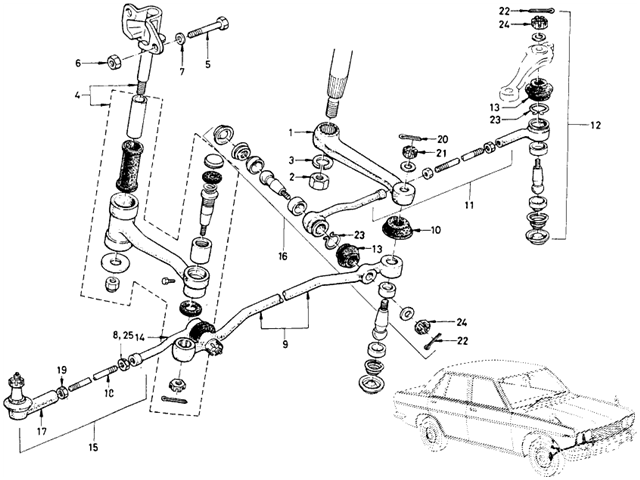

Datsun 510 Parts illustration no. 075-1 Steering Linkage

075 -1  Steering Linkage
KeyPart No.ModelApplied DateQty
FromTo
1ARM STEERING GEAR
  48502-A0600     -   1

  48502-A0600SEDAN   -   1

  48502-22501WAGON   -   1
2NUT HEX SLOTTED M20X1.5
  08911-2501A     -   1
3WASHER LOCK SPRING
  08915-15010     -   1
4ASSY IDLER
  48530-21400     -   1
5BOLT HEX M12X1.25X75
  08124-2751A     -   2
6NUT HEX NYLOCK M12X1.25
  08912-6421A     -   2
7WASHER PLAIN M12
  08915-4421A     -   2
8NUT LOCK S/ROD M12
  48514-18000     - 68092

NUT LOCK S/ROD M14
  01211-00211     -   2
9ASSY-ROD,CROSS
  48560-U5200     -   1
10SEAL DUST CROSS
  48577-13200     -   1
11SIDE ROD RH
  48510-U0100     -   1

  48510-U0100WAGON7204 -   1
12SOCKET-OUTER,SIDE ROD RH
  48520-21000     - 68071
  48520-U0100   6808 -   1
13COVER DUST SIDE ROD
  48522-W1401     -   4
14SOCKET-INNER,SIDE ROD RH
  48521-U0100     -   1
15SIDE ROD LH
  48630-U0100     -   1
16SOCKET-OUTER,SIDE ROD LH
  48640-U0100     -   1
17SOCKET-INNER,SIDE ROD LH
  48641-U0100     -   1
18SIDE ROD BAR M12
  48512-21000     - 68072

SIDE ROD BAR M14
  48512-A0600   6808 -   2
19NUT-HEXAGON(M12 X 1.25)
  08911-34210     - 68074

NUT-HEXAGON(M14 X 1.50)
  08911-3441A   6808 -   2

NUT-LOCK,SIDE ROD
  48514-78500   6808 -   2
20PIN-COTTER
  08921-3252A     -   4
21NUT-HEXAGON SLOTTED
  01227-00061     -   4
22PIN-COTTER
  08921-3252A     -   4
23CLAMP-DUST COVER
  48548-18000     -   4
24NUT-HEX JAM
  08911-3441A     -   1
25NUT-LOCK SIDE ROD
  01211-00211     -   1
ARM STEERING GEAR BOLT HEX M12X1.25X75 WASHER PLAIN M12 ASSY-ROD,CROSS PIN-COTTER CLAMP-DUST COVER SIDE ROD RH SOCKET-OUTER,SIDE ROD RH COVER DUST SIDE ROD PIN-COTTER CLAMP-DUST COVER NUT-HEX JAM SOCKET-INNER,SIDE ROD LH NUT HEX SLOTTED M20X1.5 WASHER LOCK SPRING ASSY IDLER NUT HEX NYLOCK M12X1.25 NUT LOCK S/ROD NUT-LOCK SIDE ROD SOCKET-INNER,SIDE ROD RH NUT-HEX JAM COVER DUST SIDE ROD SOCKET-OUTER,SIDE ROD LH SEAL DUST CROSS NUT-HEXAGON SLOTTED PIN-COTTER SIDE ROD LH NUT-HEXAGON / NUT-LOCK,SIDE ROD SIDE ROD BAR
